SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY RH &LH
3. REMOVE REAR SEATBACK ASSEMBLY Removal
4. REMOVE REAR SEAT BELT OUTER ANCHOR Removal
5. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Removal
6. REMOVE REAR DOOR SCUFF PLATE Removal
7. REMOVE REAR SEAT SIDE GARNISH Removal
8. REMOVE ROOF SIDE GARNISH INNER Removal





9. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
(a) Detach the 2 clips and 2 claws, and remove the anchor cover.
10. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) Removal
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

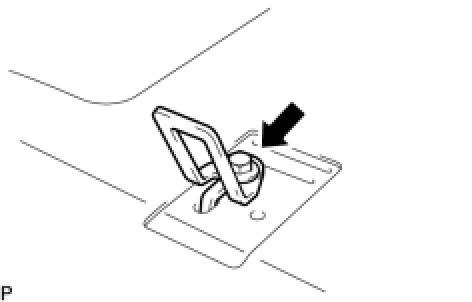

12. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
(a) Remove the bolt and anchor bracket.
