BRAKE CONTROL: ABS MOTOR RELAY (for 2GR-FSE): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

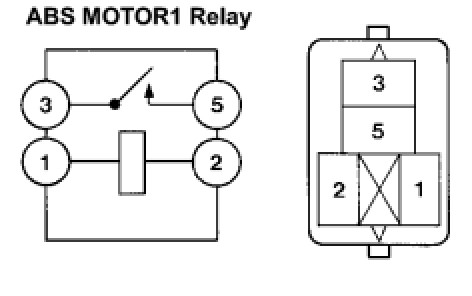

1. INSPECT ABS MOTOR1 RELAY





(a) Remove the ABS MOTOR1 relay.
(b) Measure the resistance according to the value(s) in the table below.

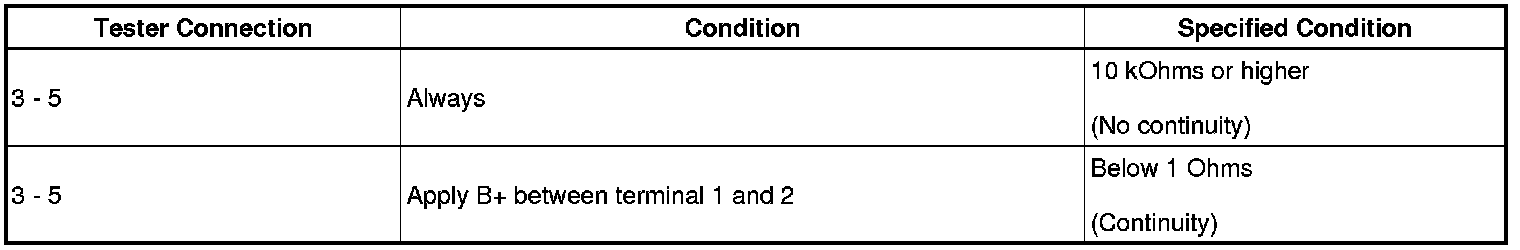

Resistance:

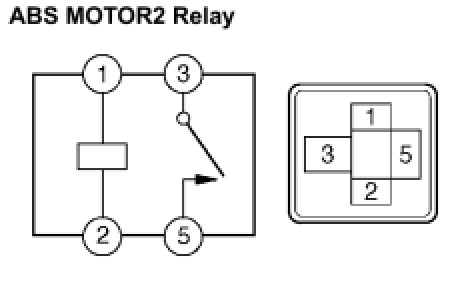

2. INSPECT ABS MOTOR2 RELAY





(a) Remove the ABS MOTOR2 relay.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:
