A760H Automatic Transmission

A760H AUTOMATIC TRANSMISSION: SHIFT SOLENOID VALVE: INSPECTION

INSPECTION

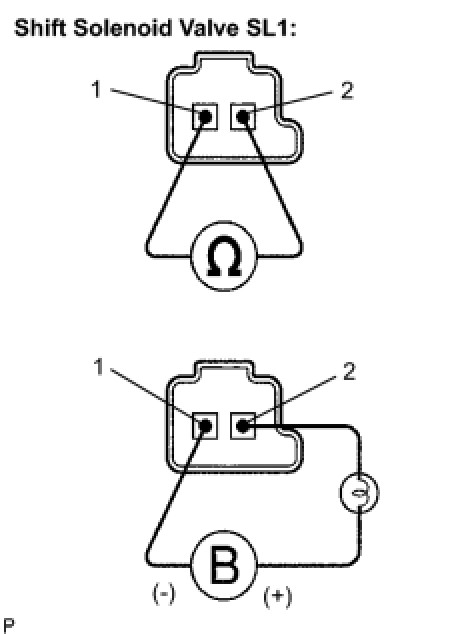

1. INSPECT SHIFT SOLENOID VALVE (SL1)





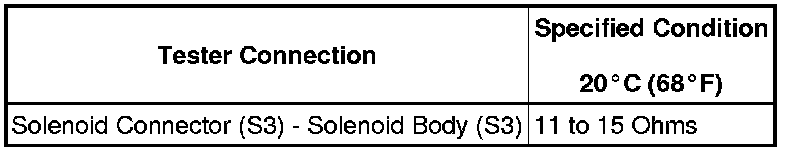

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.

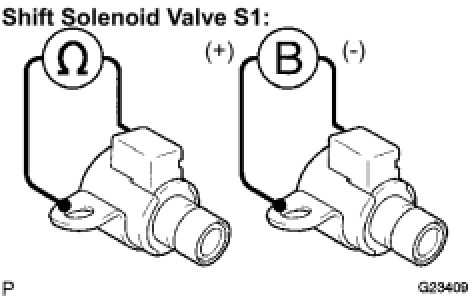

2. INSPECT SHIFT SOLENOID VALVE (S1)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.

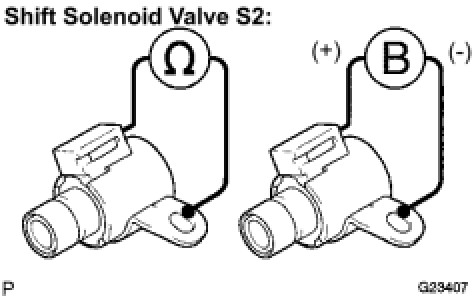

3. INSPECT SHIFT SOLENOID VALVE (S2)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.
4. INSPECT SHIFT SOLENOID VALVE (S3)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.

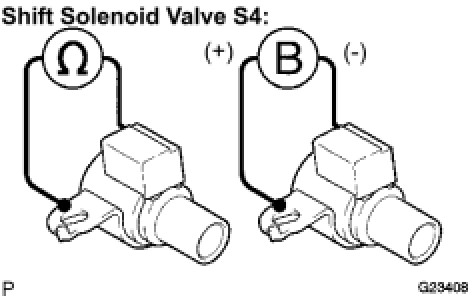

5. INSPECT SHIFT SOLENOID VALVE (S4)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.
6. INSPECT SHIFT SOLENOID VALVE (SL2)





(a) Measure the resistance according to the value(s) in the table below:
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.

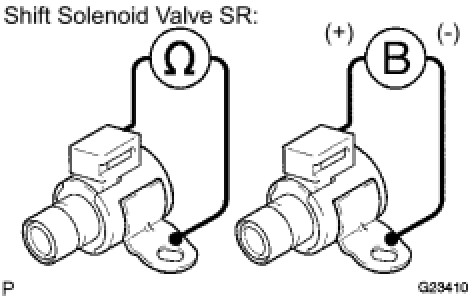

7. INSPECT SHIFT SOLENOID VALVE (SR)

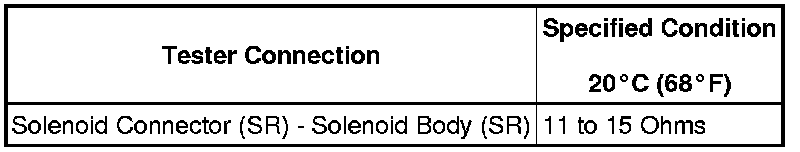

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.

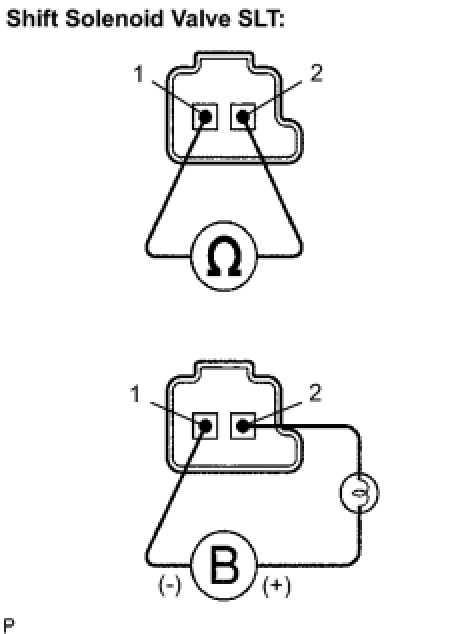

8. INSPECT SHIFT SOLENOID VALVE (SLT)

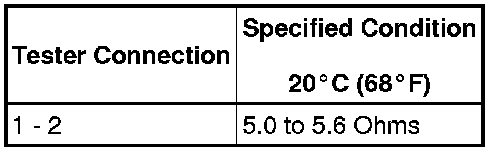

(a) Measure the resistance according to the value(s) in the table below:
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.

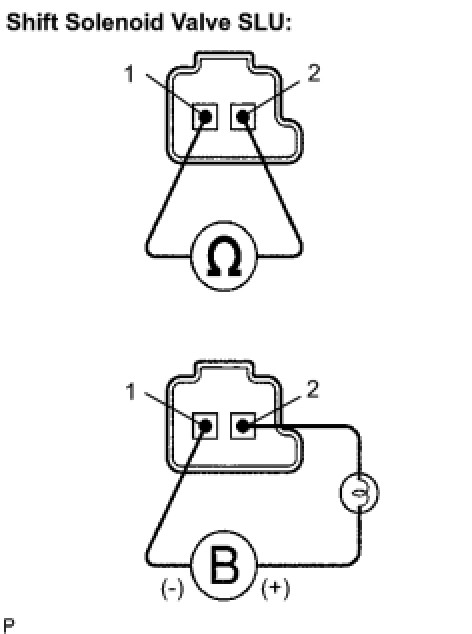

9. INSPECT SHIFT SOLENOID VALVE (SLU)





(a) Measure the resistance according to the value(s) in the table below:
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.
