Removal

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.





2. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY

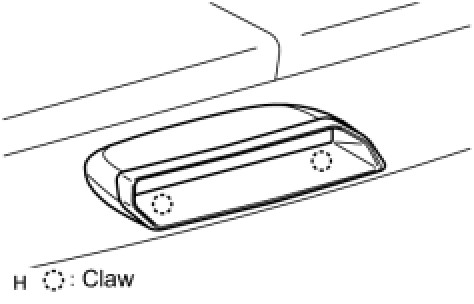

(a) Detach the 2 claws and remove the stop light from the package tray trim center bracket.
(b) Disconnect the connector.





3. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
(a) Disconnect the connector.

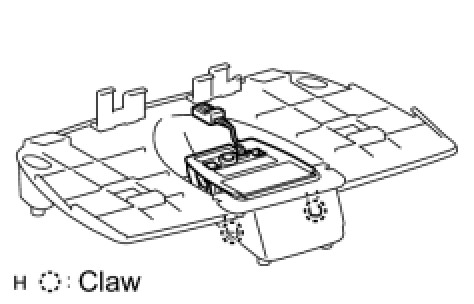

(b) Detach the 2 claws and remove the sensor from the high mounted stop lamp base.
