Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
(a) Connect the connector.
(b) Attach the 2 claws and install the sensor to the package tray trim center bracket.





2. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Connect the connector.

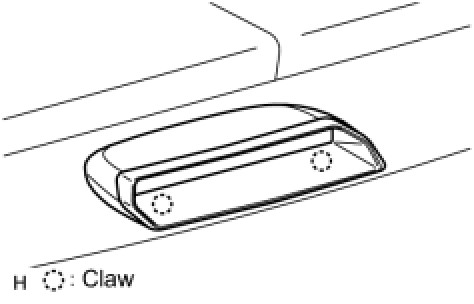

(b) Attach the 2 claws and install the stop light to the package tray trim center bracket.
3. CONNECT CONNECT BATTERY NEGATIVE TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
