Disassembly

AIR CONDITIONING: AIR CONDITIONING UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY

(a) Remove the packing from the A/C tube.

(b) Using a 4 mm hexagon wench, remove the 2 hexagon bolts and A/C tube.
(c) Remove the 2 O-rings from the A/C tube.
2. REMOVE COOLER EXPANSION VALVE

(a) Remove the cooler expansion valve from the cooler evaporator.

3. REMOVE AIR OUTLET CONTROL SERVOMOTOR RH
(a) Disconnect the connector.

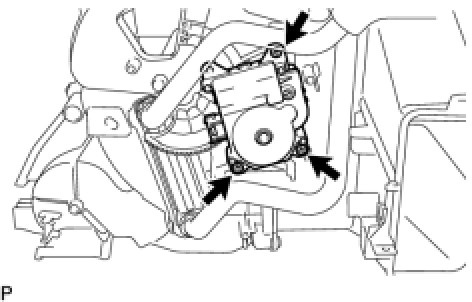

(b) Remove the 3 screws and servomotor.
4. REMOVE AIR MIX CONTROL SERVOMOTOR RH

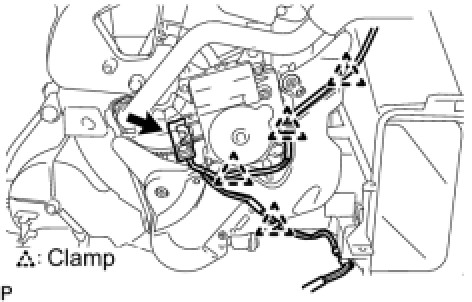

(a) Remove the 3 clamps and connector and disconnect the wire harness.

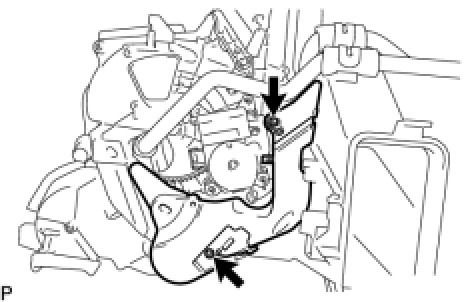

(b) Remove the 2 screws and heater piping cover.

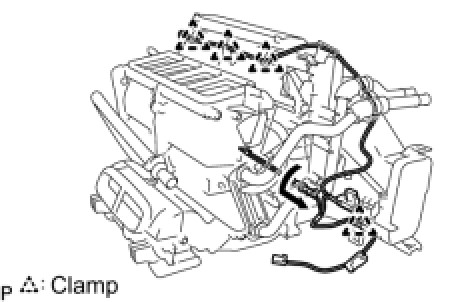

(a) Disconnect the 2 connectors and detach the 2 clamps.

(b) Detach the 4 clamps and then disconnect the wire harness.
(c) Remove the A/C harness as shown in the illustration.
6. REMOVE AIR OUTLET CONTROL SERVOMOTOR LH

(a) Remove the 2 screws and air duct.

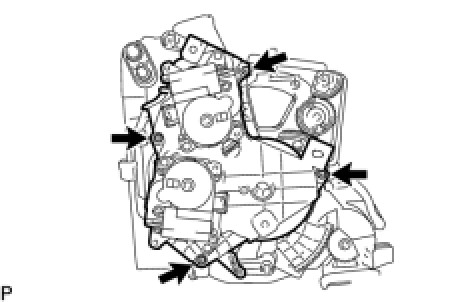

(b) Remove the 4 screws and servomotors.

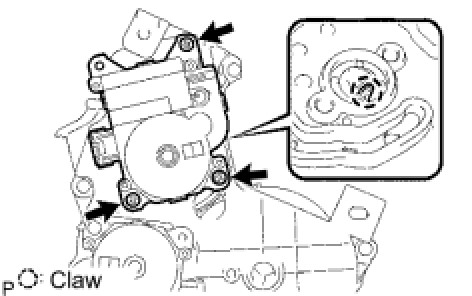

(c) Remove the 3 screws.
(d) Detach the claw and remove the air outlet control servomotor.
7. REMOVE AIR MIX CONTROL SERVOMOTOR LH

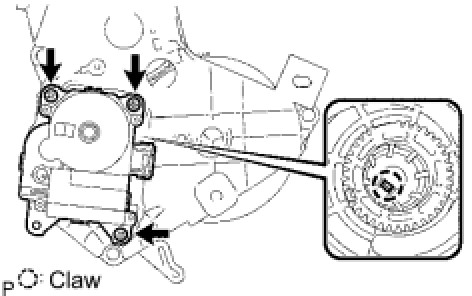

(a) Remove the 3 screws.
(b) Release the claw and remove the servomotor.
8. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY

(a) Remove the screw and clamp.
(b) Remove the radiator unit.
9. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

(a) Remove the 5 screws.
(b) Release the 3 claws and remove the air duct case.
