Blower Motor: Testing and Inspection

AIR CONDITIONING: BLOWER MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT BLOWER MOTOR

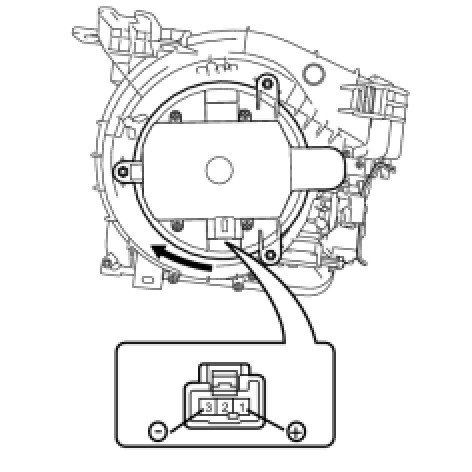

(a) Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 3. Check that the motor operates smoothly.
If the result is not as specified, replace the blower motor.
