Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

1. INSTALL COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

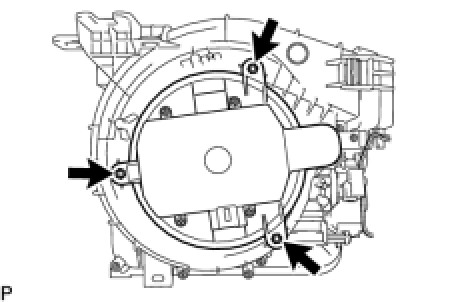

(a) Install the fan motor with the 3 screws.
2. INSTALL CLEAN AIR FILTER

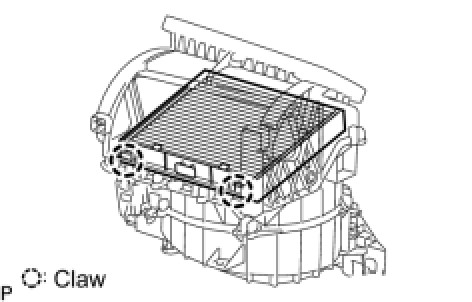

(a) Attach the 2 claws to install the air filter.
3. INSTALL DAMPER SERVO SUB-ASSEMBLY

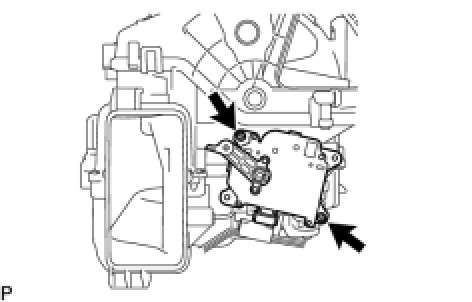

(a) Install the damper servo with the 2 screws.

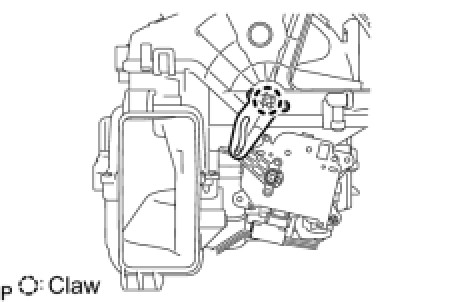

(b) Attach the claw and install the lever.
