Components
Components
BRAKE:

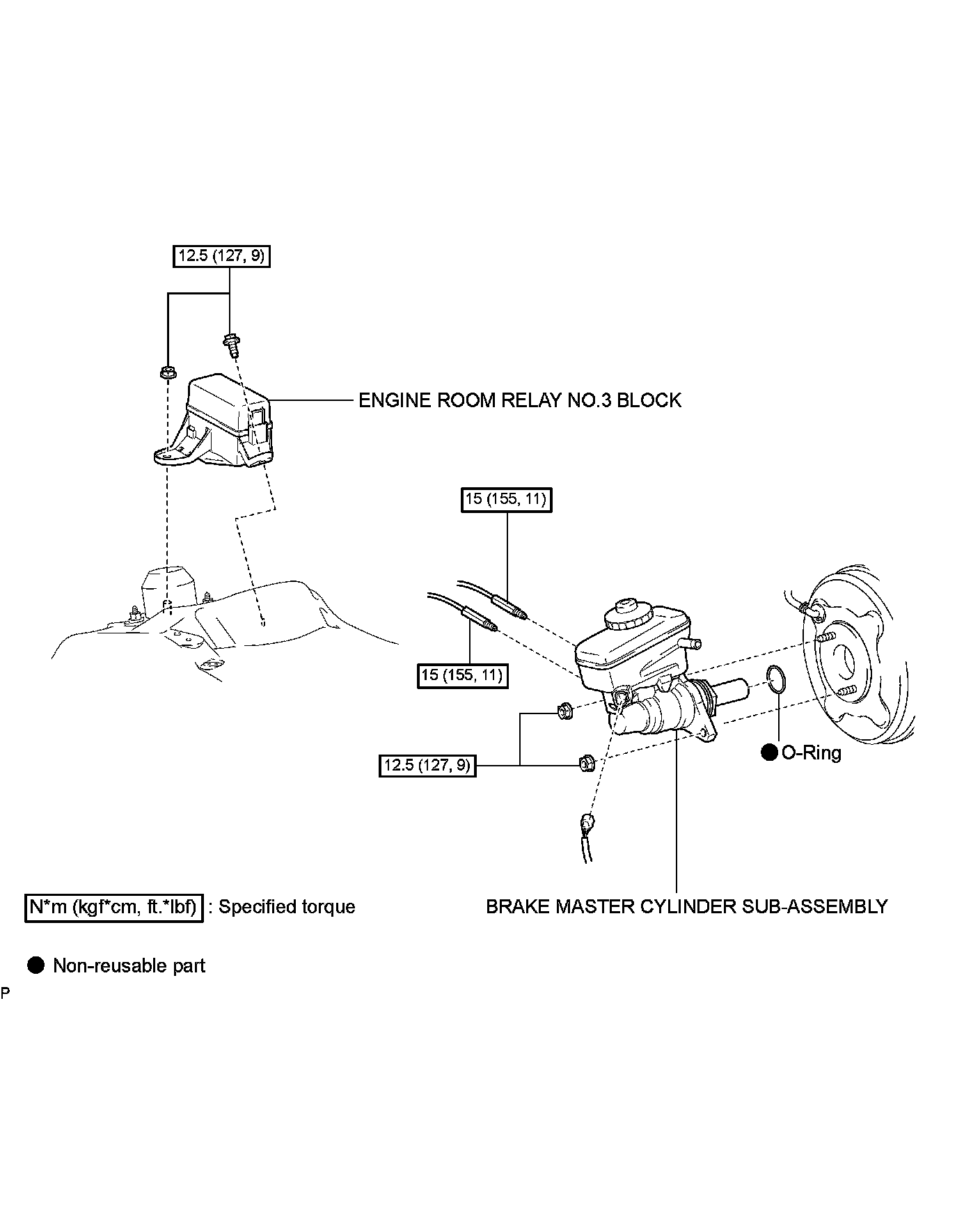

BRAKE MASTER CYLINDER
(for 2GR-FSE): COMPONENTS

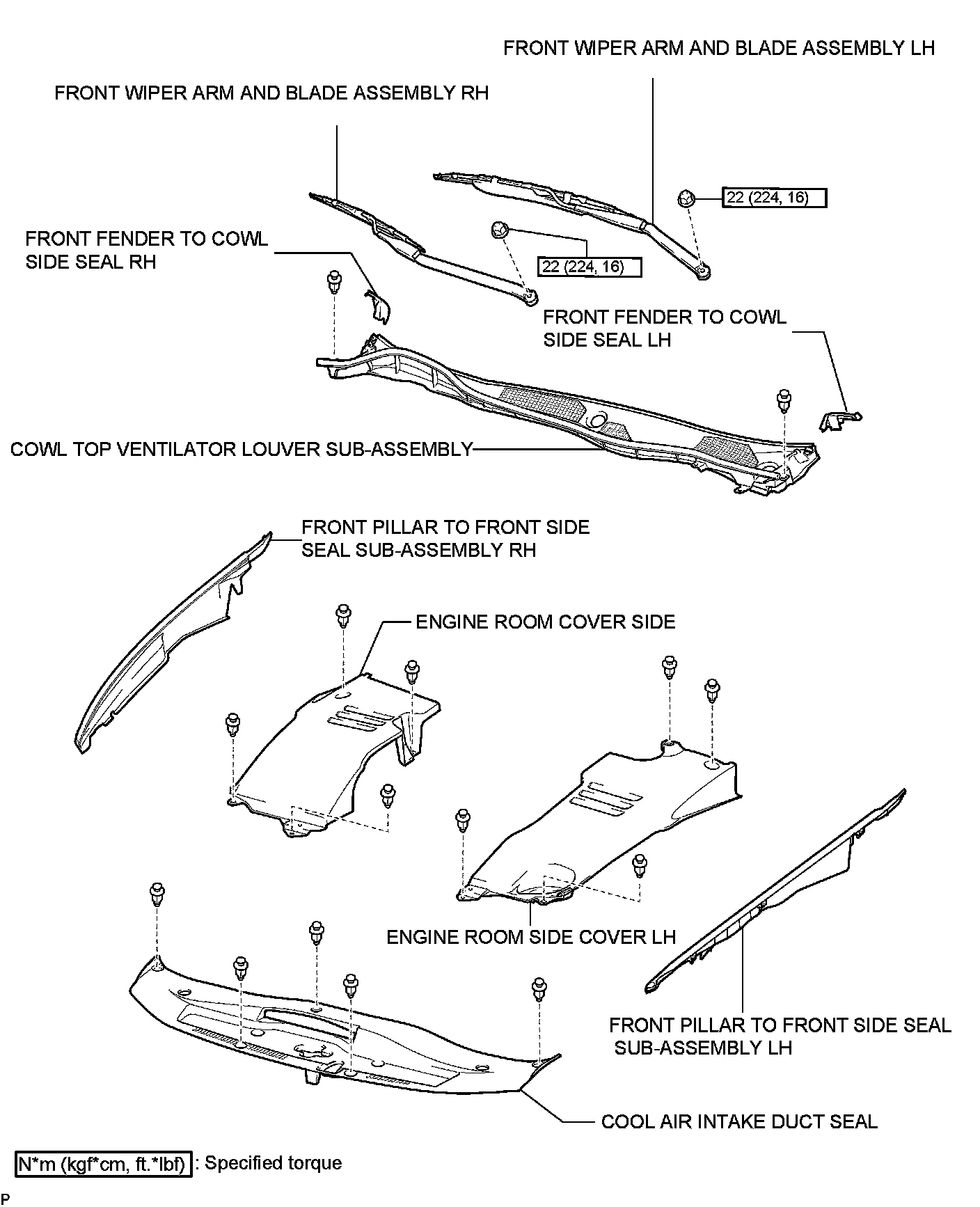

COMPONENTS
ILLUSTRATION
