Brakes and Traction Control: Description and Operation

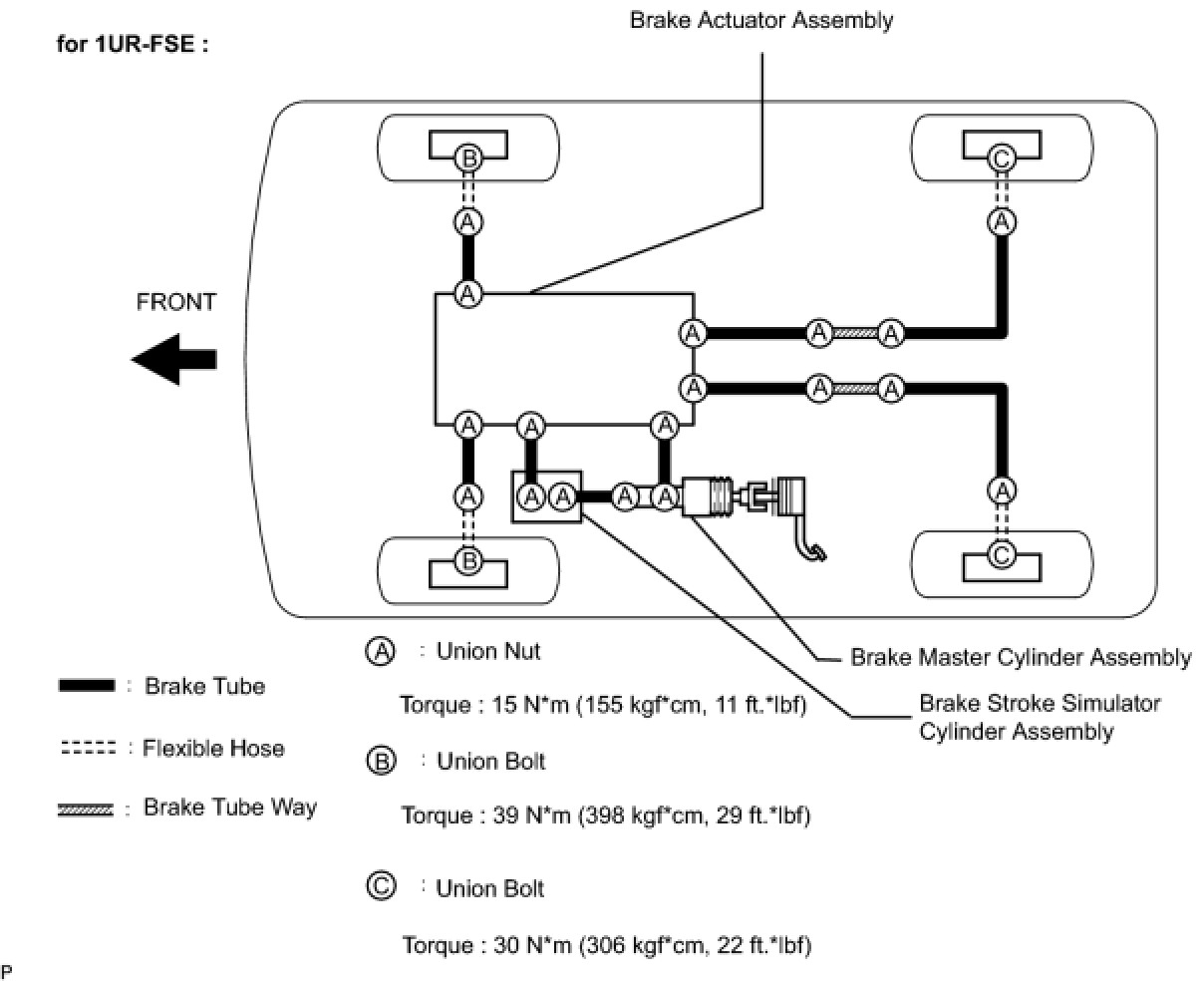

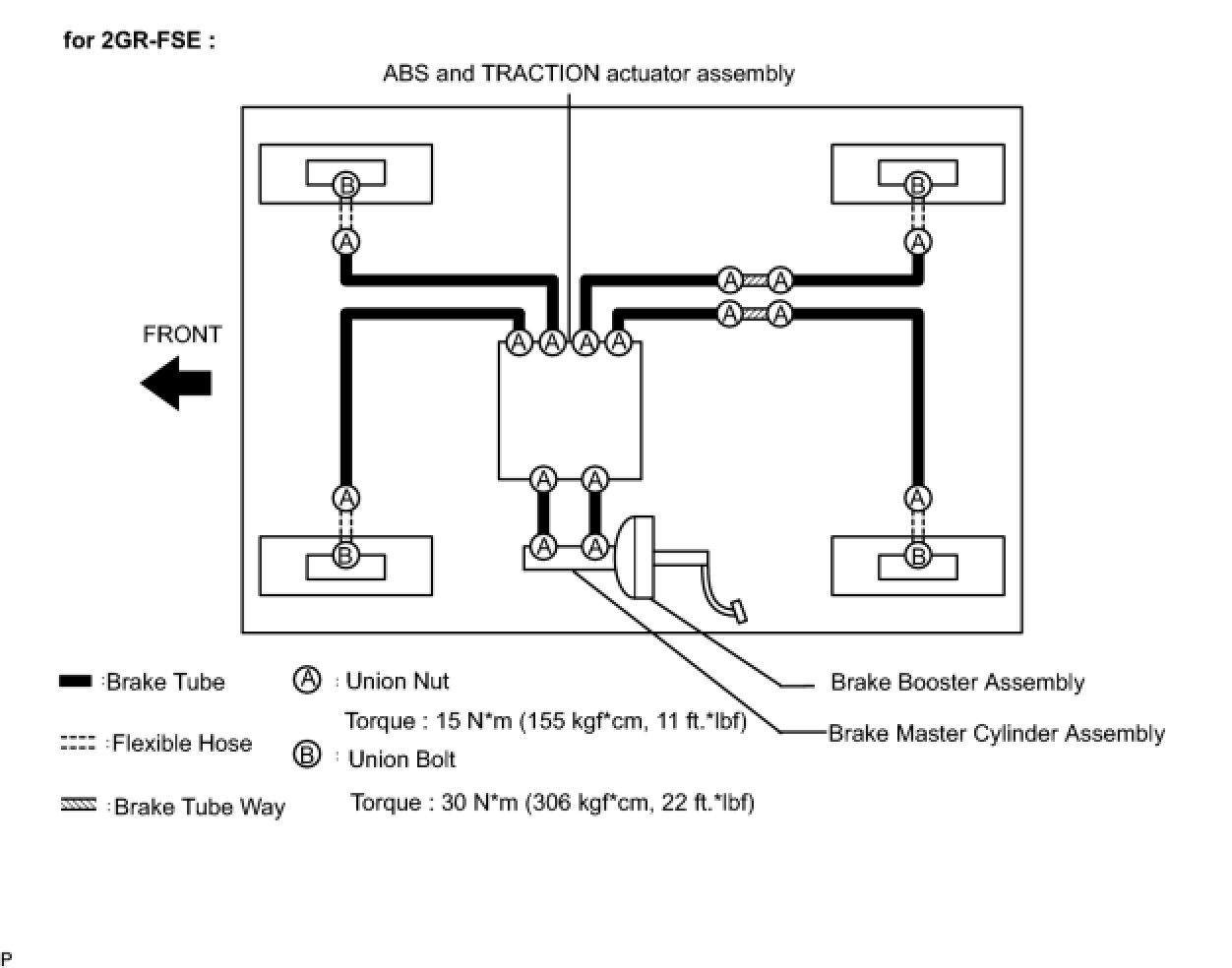

BRAKE: BRAKE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
HINT: See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake tubes.
