Installation

EXTERIOR: REAR WHEEL HOUSE PLATE: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

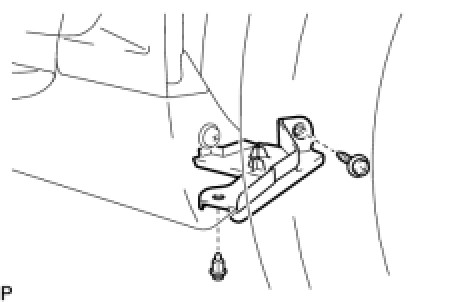

1. INSTALL REAR FLOOR HOUSING SHIELD
(a) Install the shield with the clip and screw.
