Installation

EXTERIOR: NAME PLATE: INSTALLATION

INSTALLATION
HINT: When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

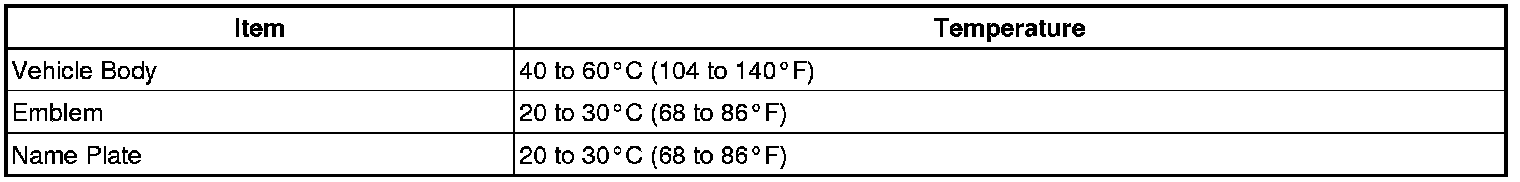

Heating temperature:





NOTE:
Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) If reusing the emblem:
Clean the emblem.
(1) Using a heat light, heat the emblem.
(2) Remove the double-sided tape from the emblem.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the emblem.
(c) Install the emblem.
(1) Using a heat light, heat the vehicle body and emblem.
(2) Remove the peeling paper from the face of the emblem.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the emblem.
2. INSTALL LUGGAGE COMPARTMENT NO. 1 DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) If reusing the name plate:
Clean the name plate.
(1) Using a heat light, heat the name plate.
(2) Remove the double-sided tape from the name plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the name plate.
(c) Install the name plate.
(1) Using a heat light, heat the vehicle body and name plate.
(2) Remove the peeling paper from the face of the name plate.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the name plate.
3. INSTALL LUGGAGE COMPARTMENT NO. 3 DOOR PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) If reusing the door plate:
Clean the door plate.
(1) Using a heat light, heat the door plate.
(2) Remove the double-sided tape from the door plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the door plate.
(c) Install the door plate.
(1) Using a heat light, heat the vehicle body and door plate.
(2) Remove the peeling paper from the face of the door plate.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the door plate.
