Removal

ENGINE HOOD / DOOR: HOOD SUPPORT ROD: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE HOOD SUPPORT ROD

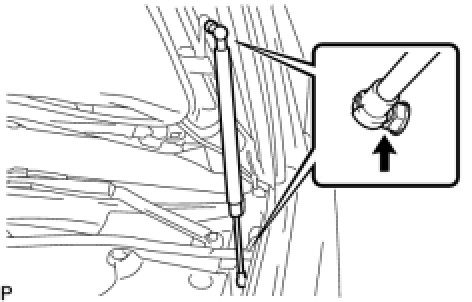

(a) Using a screwdriver, remove the clip and support from the hood side.
HINT:
- Tape the screwdriver tip before use.
- Remove the support while supporting the hood with your hands.

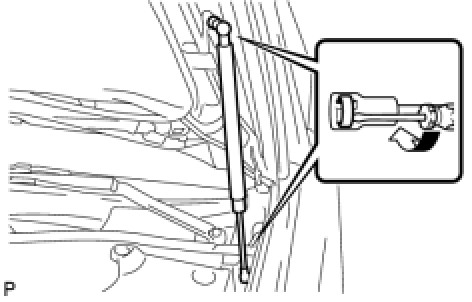

(b) Using a screwdriver, remove the clip and support from the vehicle body side.
HINT:
- Tape the screwdriver tip before use.
- Remove the support while supporting the hood with your hands.





(c) Remove the 2 bolts and hood support.
HINT: Remove the hood support while supporting the hood panel with your hands.
