Installation

AUDIO / VISUAL: REAR DOOR SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.





1. INSTALL REAR SPEAKER ASSEMBLY

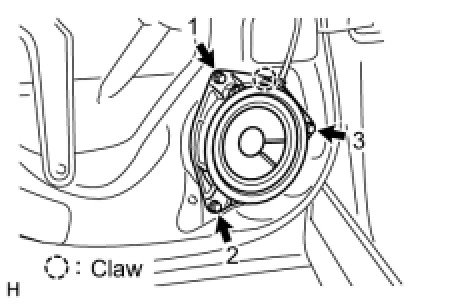

(a) Temporarily install the speaker by attaching the claws of the speaker to the door panel.
(b) Install the speaker with the 3 screws.
HINT:
- Install the screws in the order shown in the illustration.
- Do not touch the cone part of the speaker.

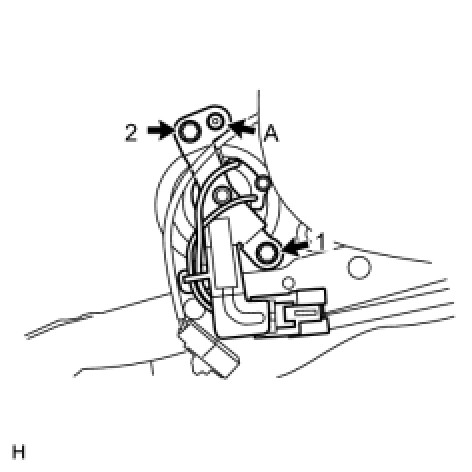

2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY





(a) Align the speaker to the door position pin A.
(b) Install the speaker with the 2 screws.
HINT:
- Install the screws in the order shown in the illustration.
- Do not touch the cone part of the speaker.

(c) Connect the connector.
3. INSTALL REAR DOOR TRIM PANEL ASSEMBLY Installation
4. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG Installation
