Removal

NAVIGATION: NAVIGATION ANTENNA: REMOVAL

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE FRONT DOOR SCUFF PLATE LH Removal
4. REMOVE FRONT DOOR SCUFF PLATE RH Removal
5. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
6. REMOVE FRONT DOOR OPENING TRIM COVER RH Removal
7. REMOVE NO. 3 STEERING WHEEL COVER LOWER Removal
8. REMOVE NO. 2 STEERING WHEEL COVER LOWER Removal
9. REMOVE STEERING PAD Removal
10. REMOVE STEERING WHEEL ASSEMBLY Removal
11. REMOVE STEERING COLUMN COVER Removal
12. REMOVE SPIRAL CABLE WITH STEERING SENSOR Removal
13. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY Removal
14. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY Removal
15. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal
16. REMOVE CONSOLE UPPER PANEL ASSEMBLY Removal
17. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
18. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
19. REMOVE CONSOLE BOX PLATE Removal
20. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal
21. REMOVE CONSOLE BOX Removal
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
23. REMOVE COMBINATION METER ASSEMBLY Removal
24. REMOVE INSTRUMENT SIDE PANEL LH Removal
25. REMOVE INSTRUMENT SIDE PANEL RH Removal
26. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
27. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal
28. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal
29. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY Removal
30. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
31. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Removal
32. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY Removal
33. REMOVE FRONT PILLAR GARNISH LH Removal
34. REMOVE FRONT PILLAR GARNISH RH Removal
35. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Removal
36. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE SETTING Removal
37. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal
38. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT Disassembly
39. REMOVE NO. 1 HEATER TO REGISTER DUCT Disassembly





40. REMOVE NAVIGATION ANTENNA

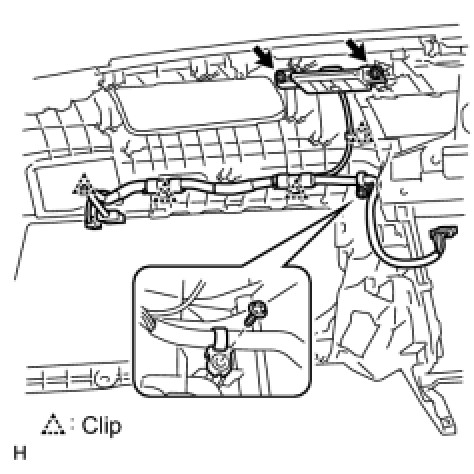

(a) Remove the 3 screws and detach the 4 clips to remove the antenna.
