Transfer Case Four Wheel Drive Control System - UF1AE








UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

FOUR WHEELS DRIVE CONTROL SYSTEM

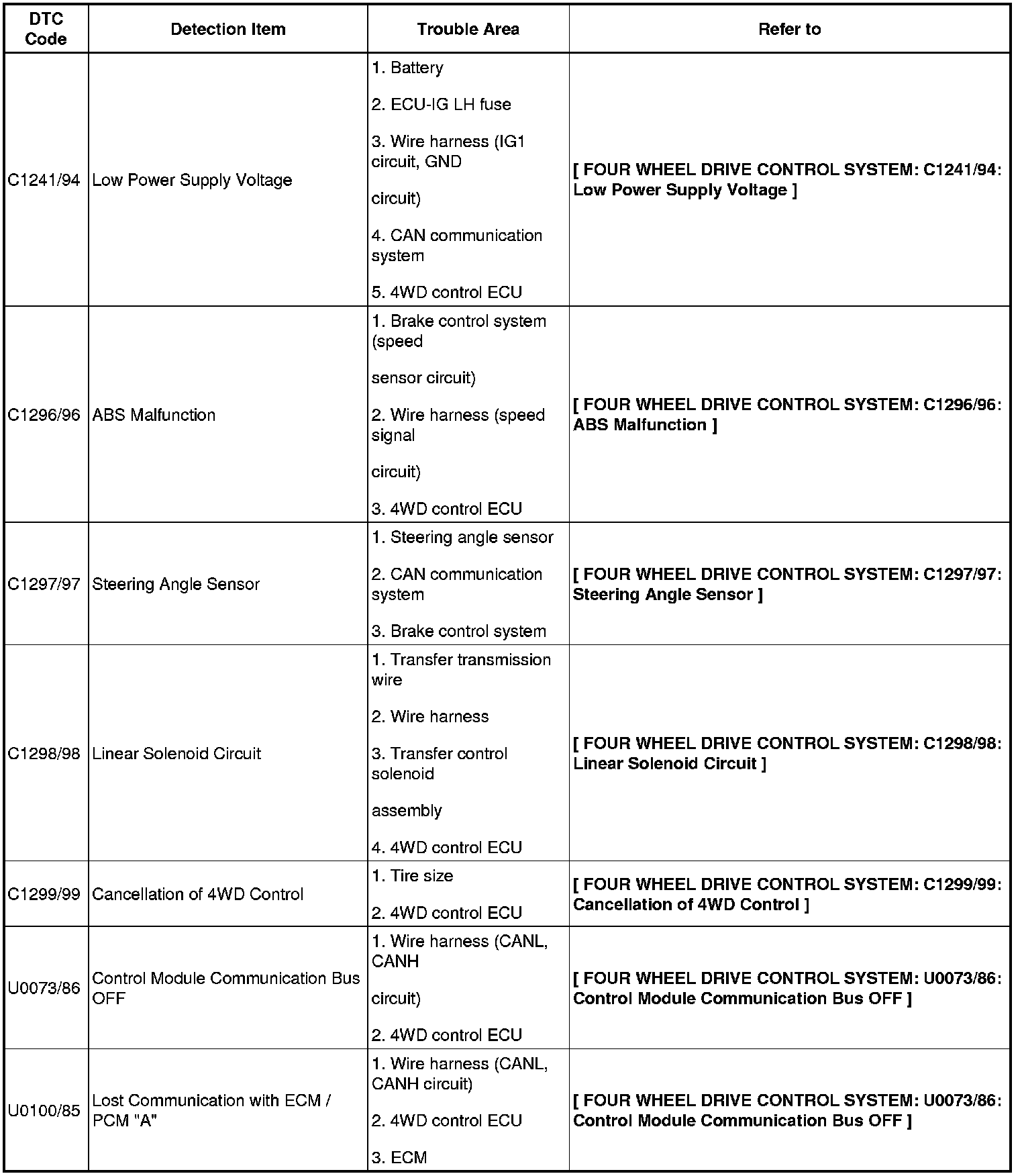

C1241/94-C1299/99 U0073/86-U0100/85:

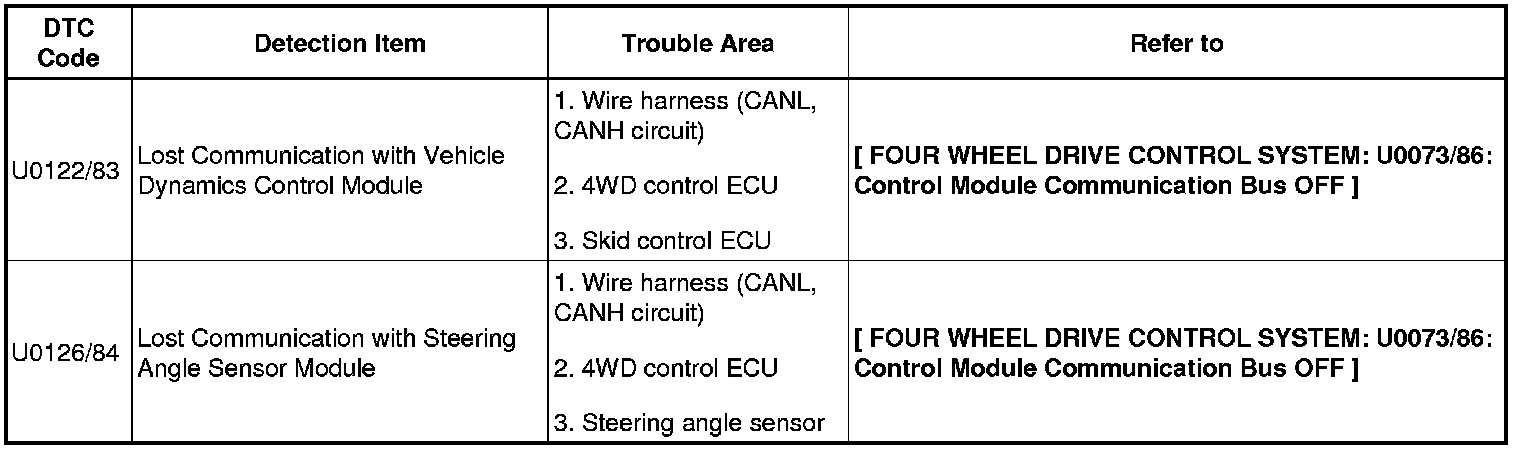

U0122/83-U0126/84:
