Audio and Visual System

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Audio and visual system

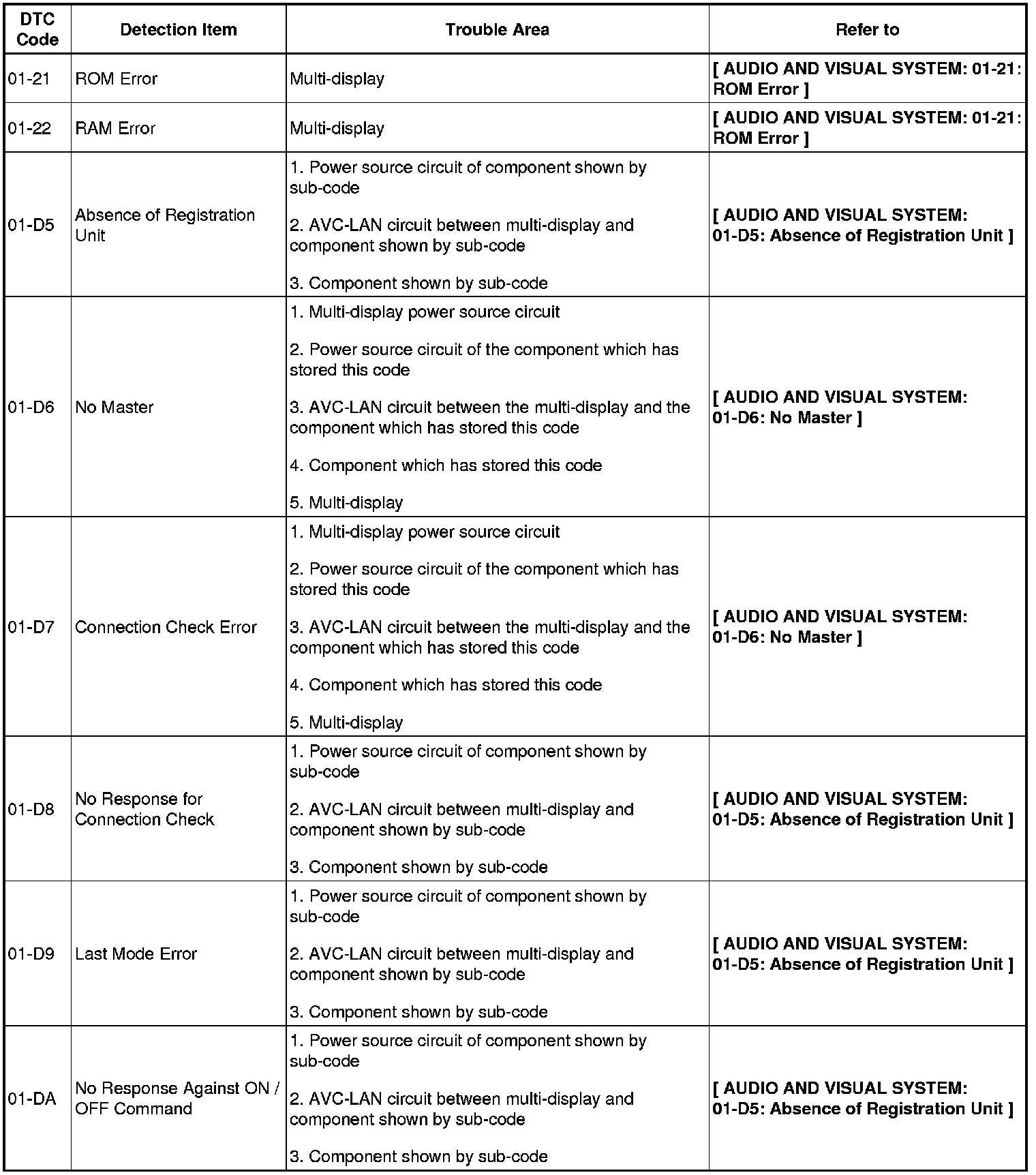

DTC 01-21-01-DA:

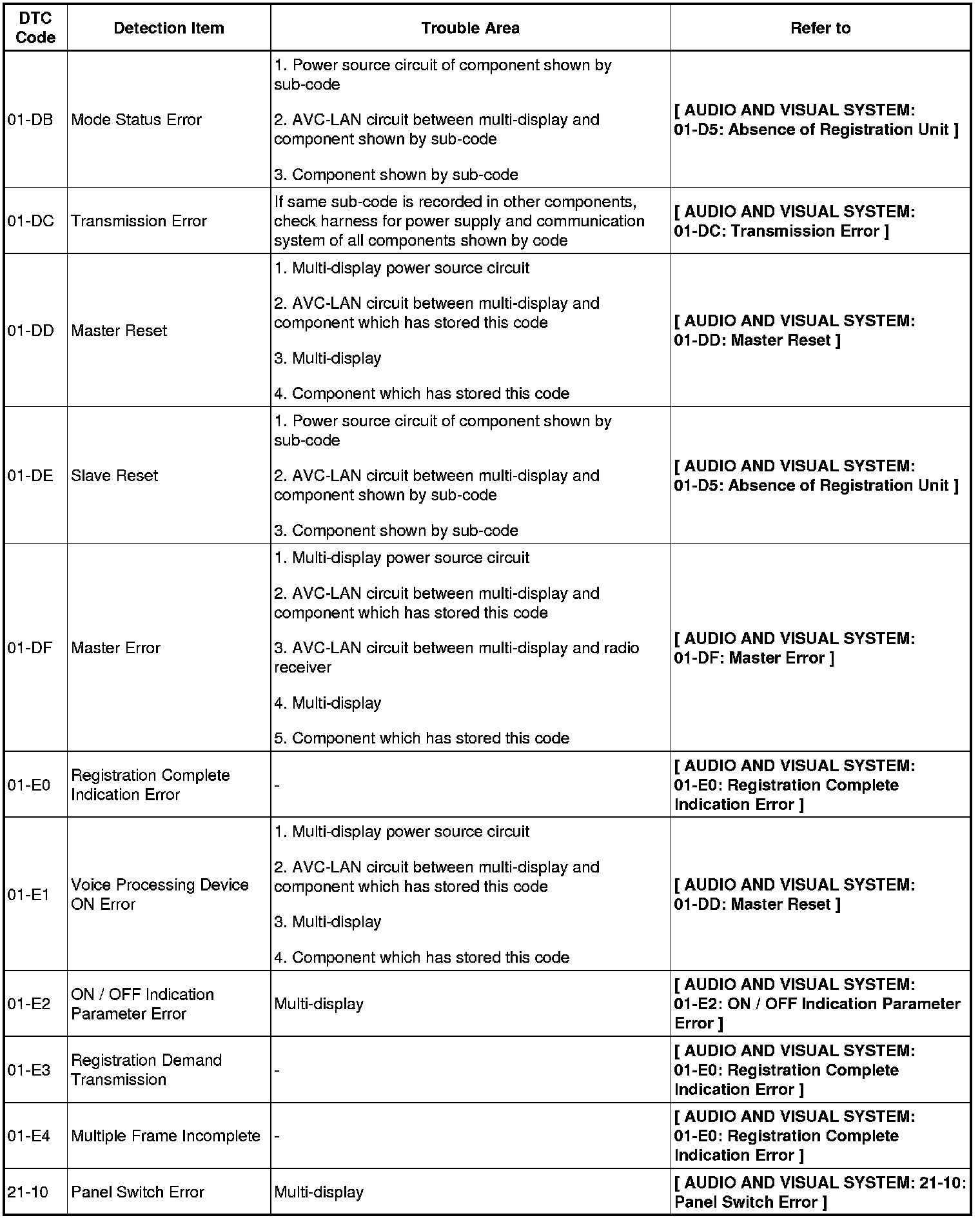

DTC 01-DB-21-10:

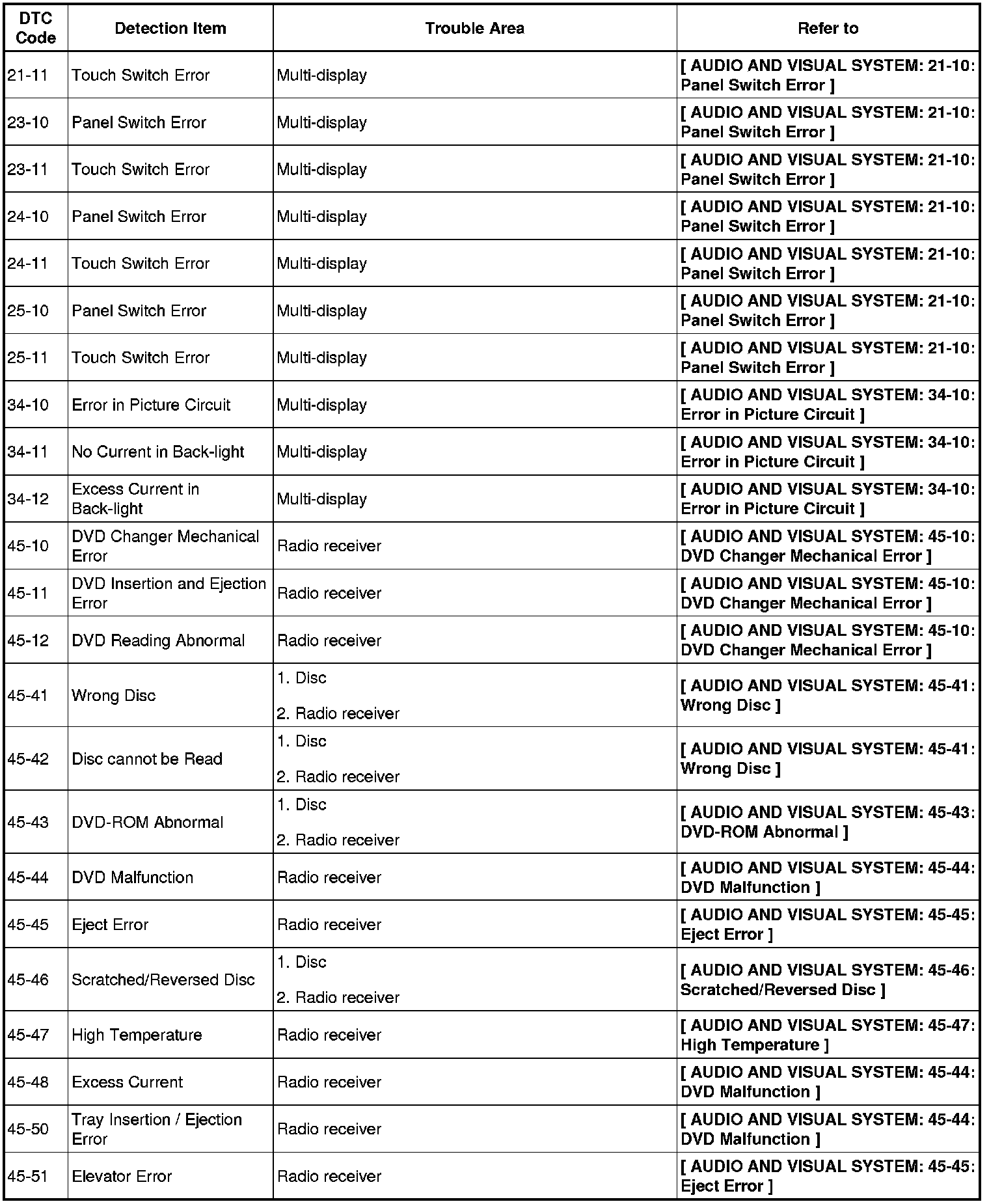

DTC 21-11-45-51:

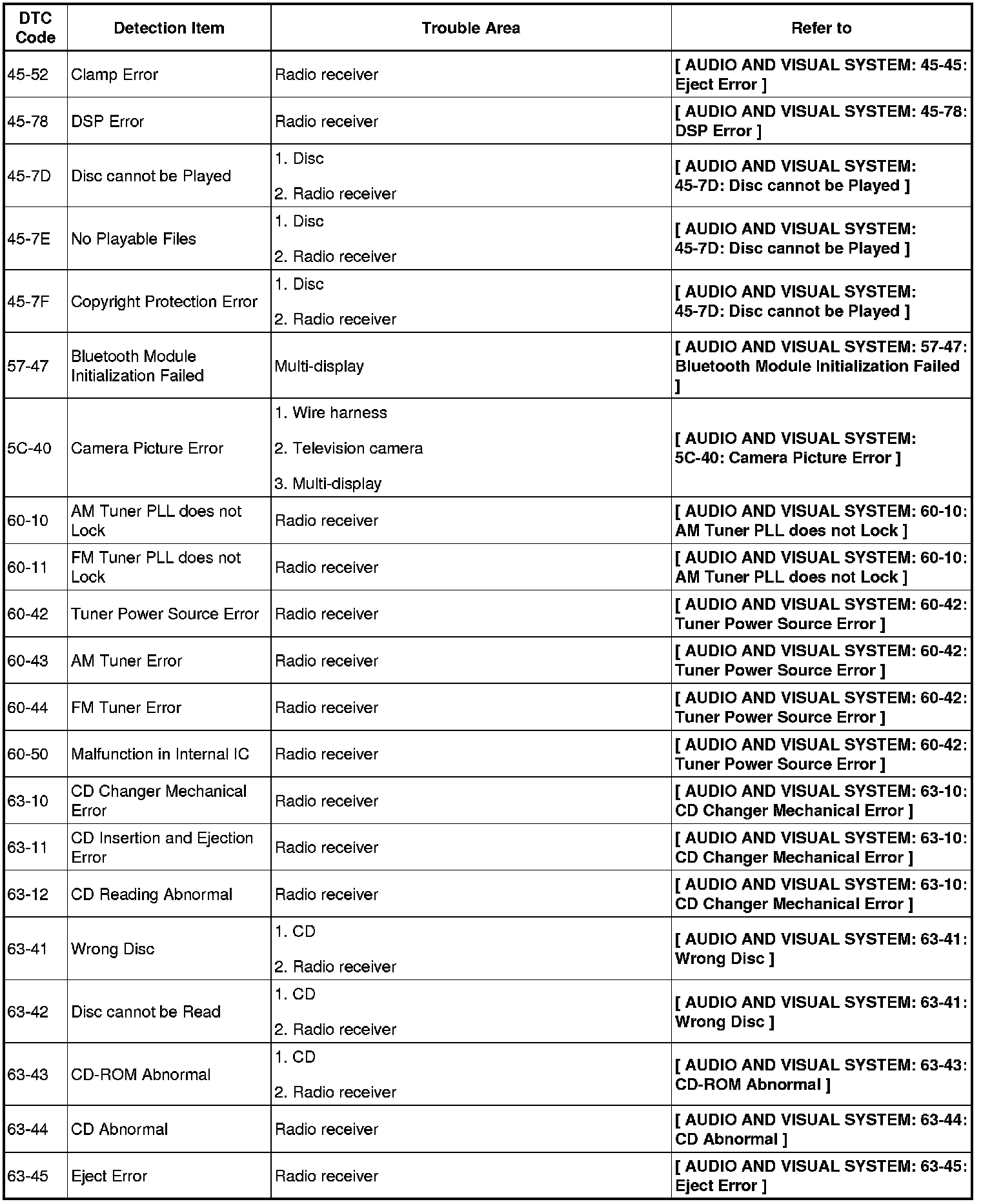

DTC 45-52-63-45:

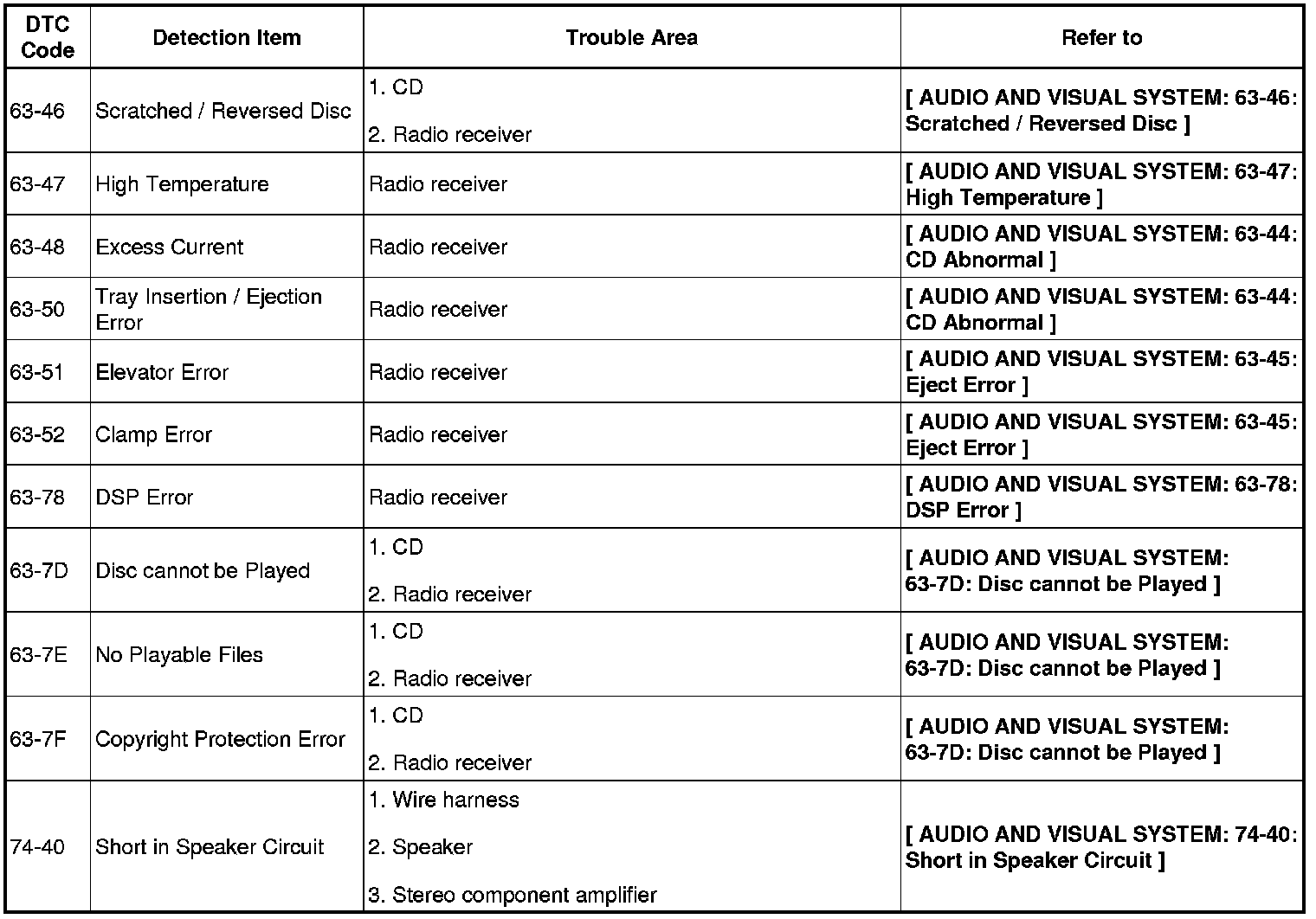

DTC 63-46-74-40:
