Installation

WIPER AND WASHER: FRONT WASHER MOTOR:

INSTALLATION

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY





(a) Install the windshield washer motor and pump assembly.
(b) Connect the connector.
2. FILL WASHER JAR WITH WASHER FLUID

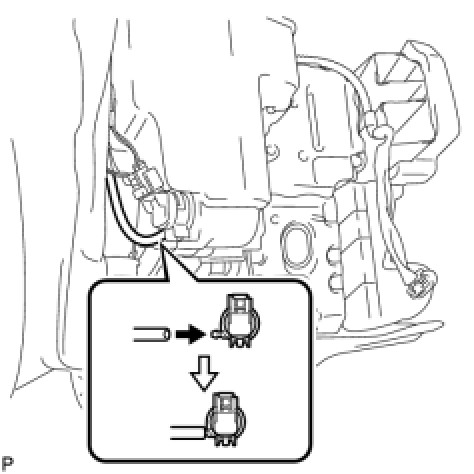

(a) Connect the washer hose to the windshield washer motor and pump assembly and fill the washer jar with washer fluid.
3. INSTALL FRONT BUMPER ASSEMBLY Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT Adjustments
6. PREPARATION FOR FOG LIGHT AIMING Adjustments
7. FOG LIGHT AIMING INSPECTION Adjustments
8. FOG LIGHT AIMING ADJUSTMENT Adjustments
