WIPER AND WASHER: WIPER AND WASHER SYSTEM (w/o
Rain Sensor
):
PROBLEM SYMPTOMS TABLE

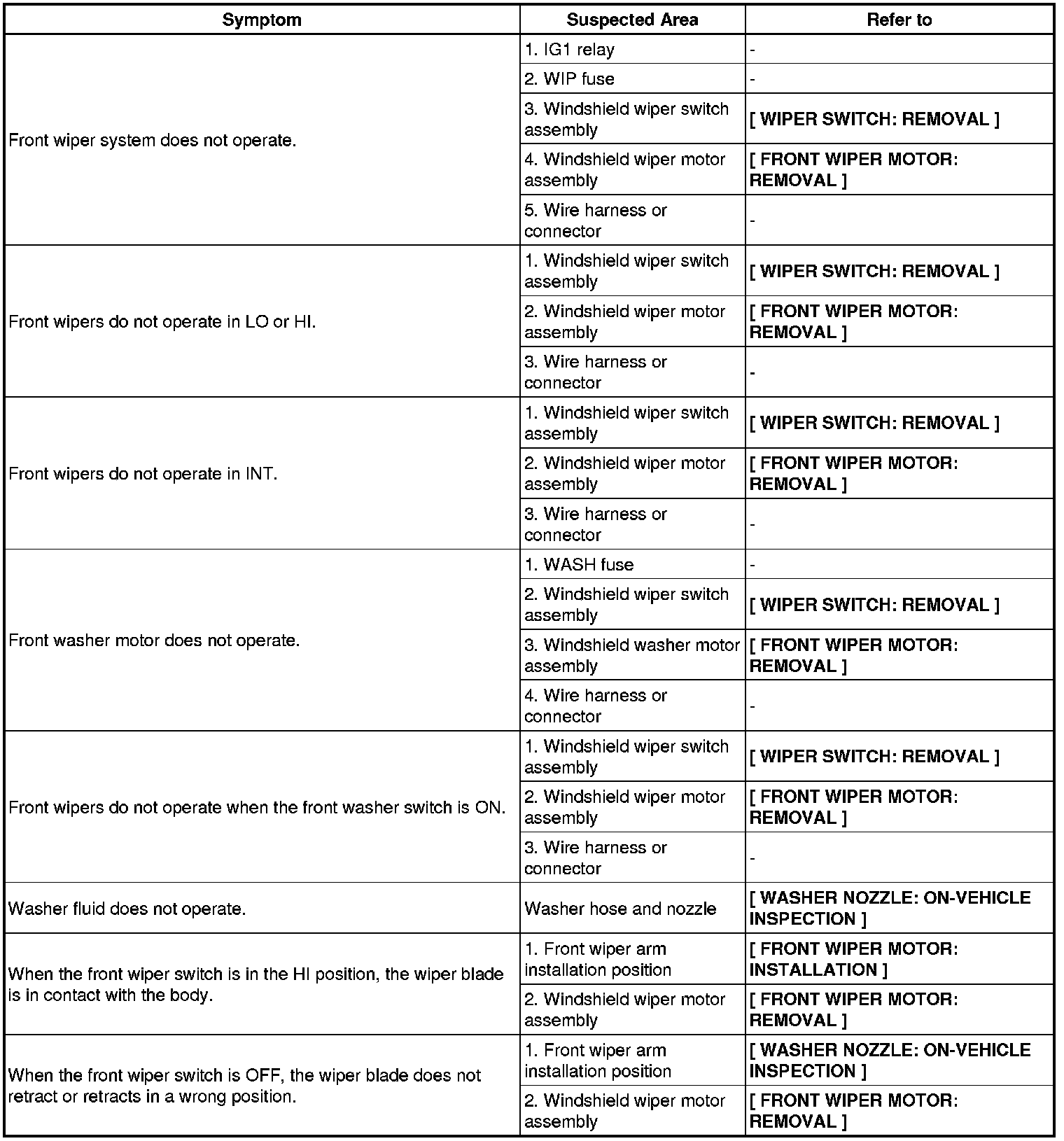

Front Wiper and Washer System:

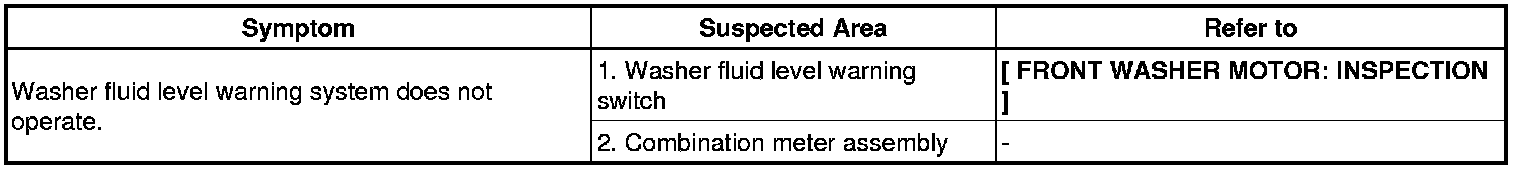

Others:
