Lexus
>>
2009
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Locations
>>
Wiper and Washer System (w/ Rain Sensor)
Wiper and Washer System (w/ Rain Sensor)
WIPER AND WASHER: WIPER AND WASHER SYSTEM (w/ Rain Sensor)

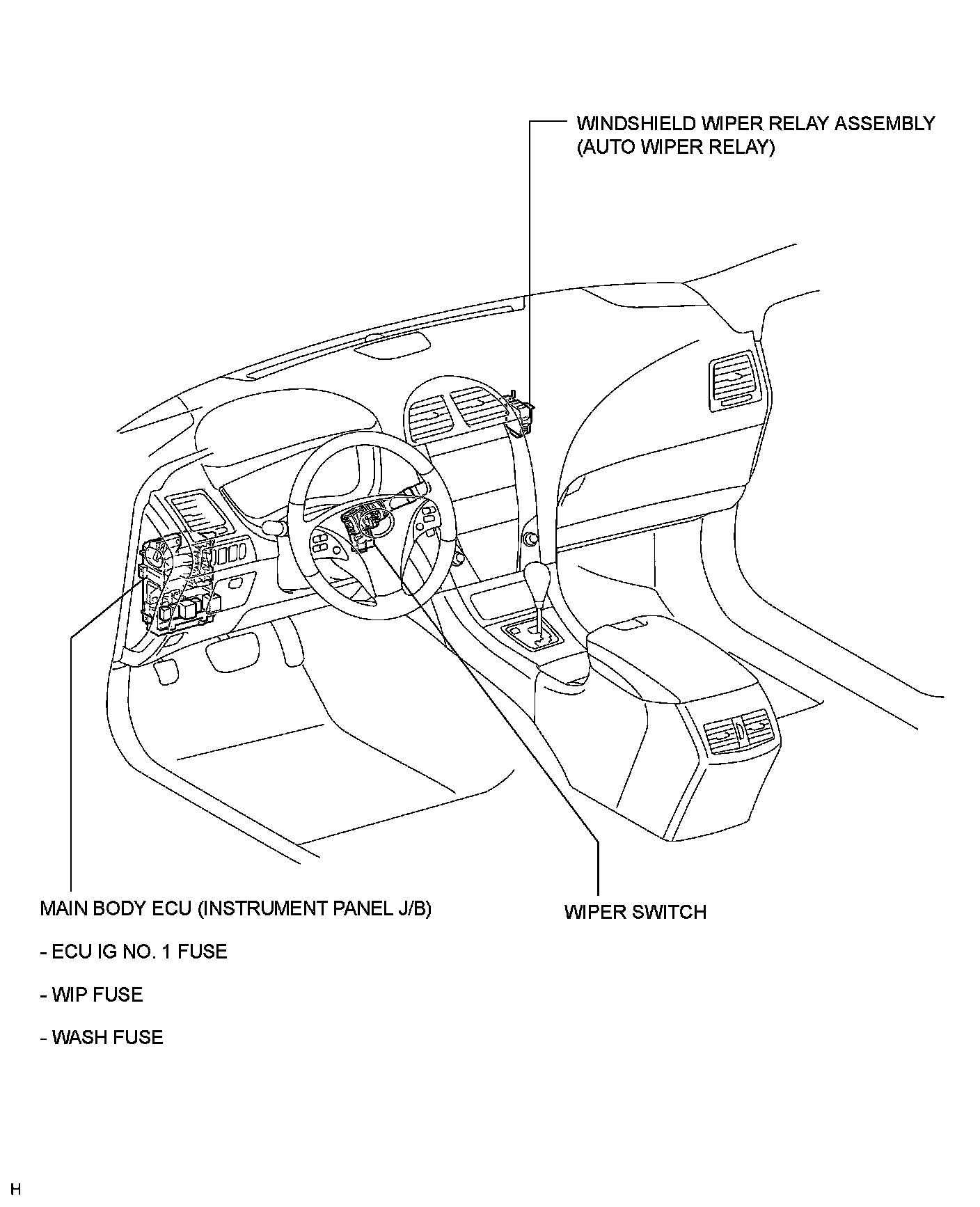

PARTS LOCATION
