U660E AUTOMATIC TRANSAXLE: ATF TEMPERATURE SENSOR:

INSTALLATION

1. INSTALL ATF TEMPERATURE SENSOR ASSEMBLY





(a) Coat a new O-ring with ATF and install it to the ATF temperature sensor assembly.
(b) Coat the 4 bolts with ATF.

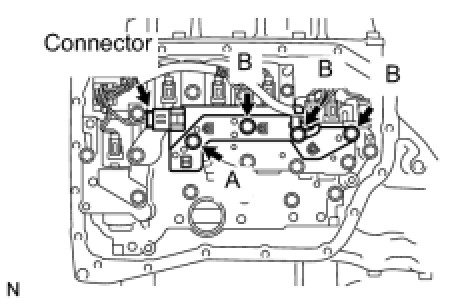

(c) Install the ATF temperature sensor assembly and clamp to the valve body with the 4 bolts.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
Bolt length:
Bolt A
25 mm (0.98 in.)
Bolt B
85 mm (3.35 in.)
(d) Connect the connector.
2. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation
3. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY Installation
4. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT: Installation
