System Diagram








U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

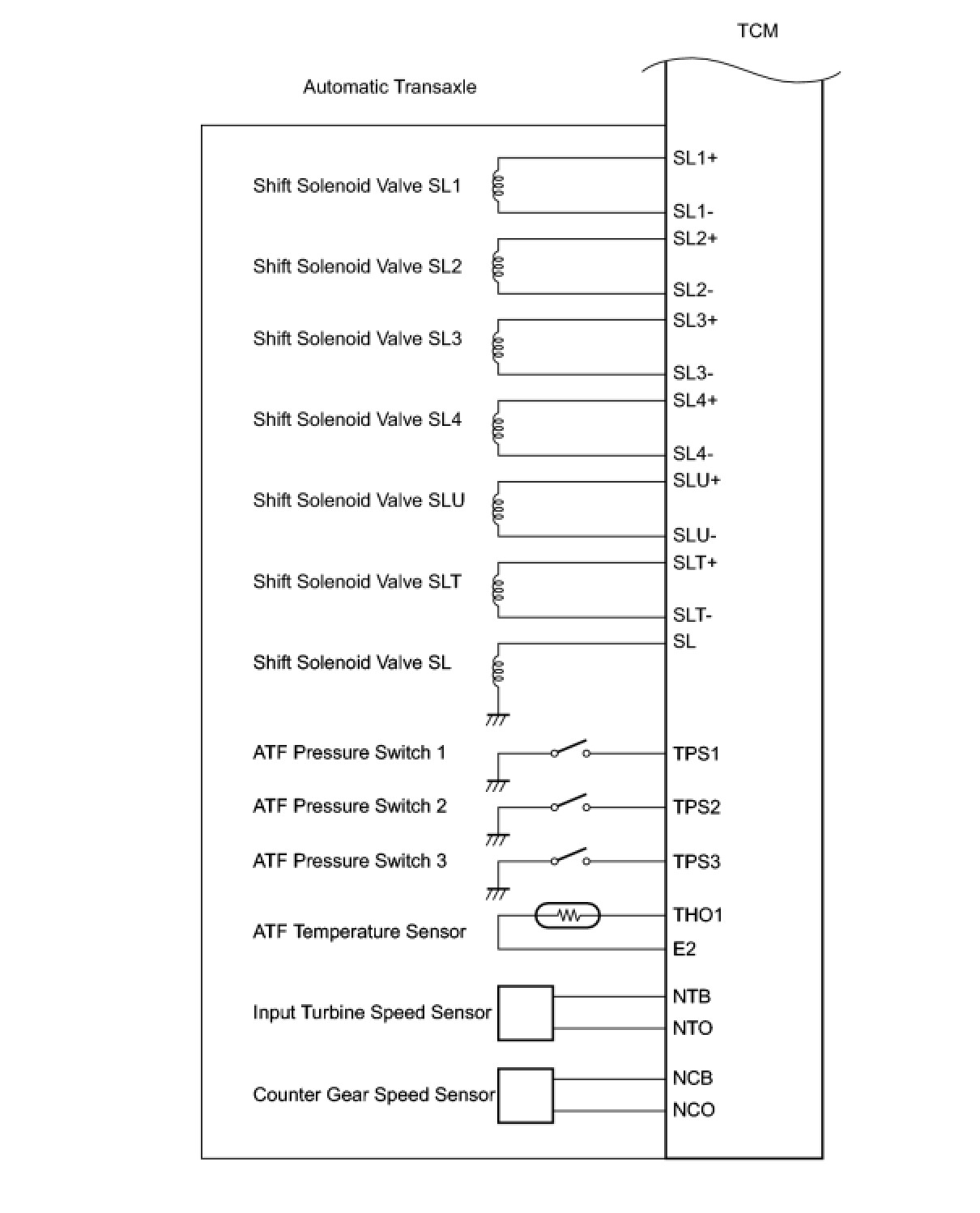

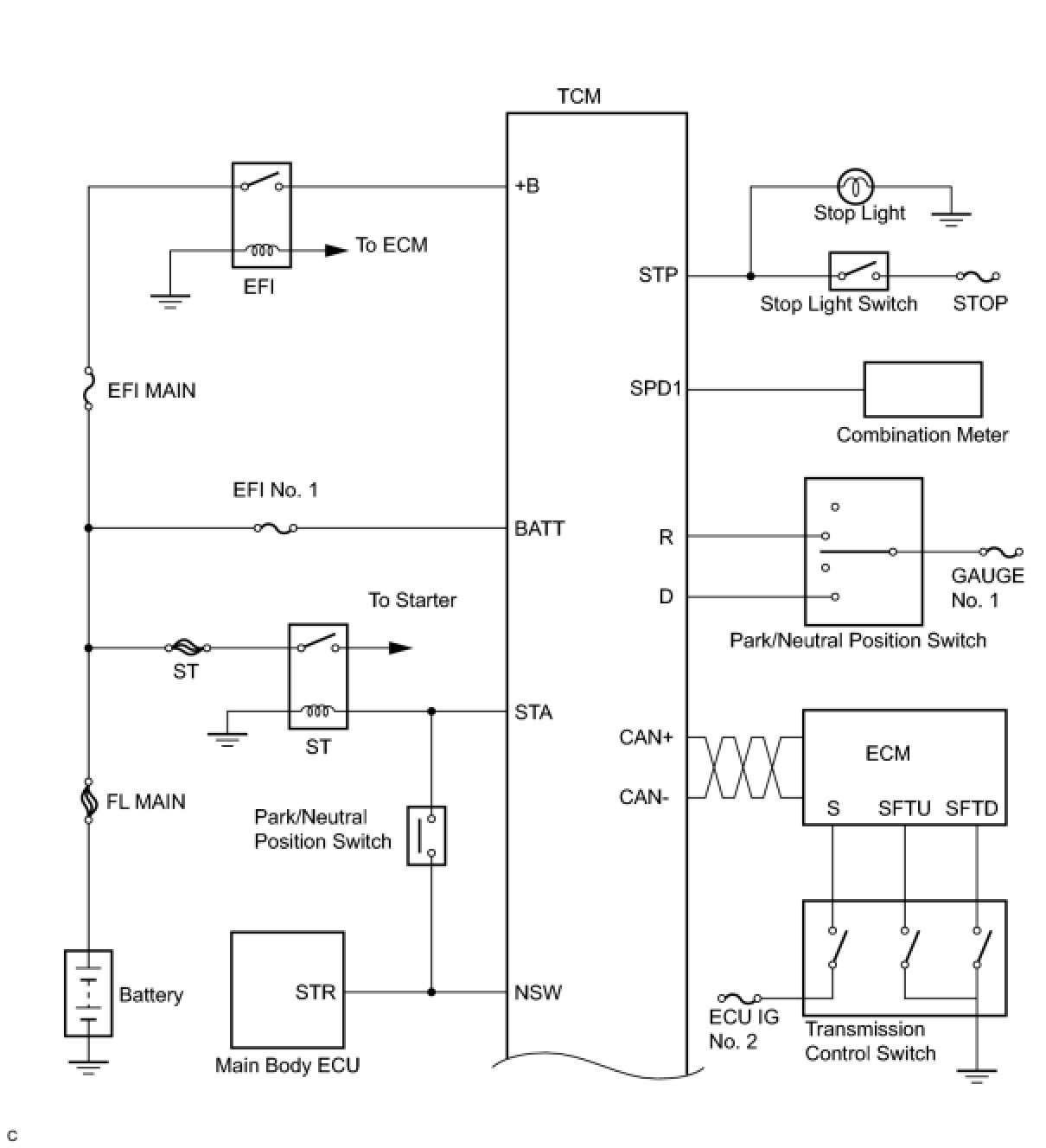

The configuration of the electronic control system in the U660E automatic transaxle is as shown in the following chart.
