Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING SELECT SWITCH:

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING SELECT SWITCH

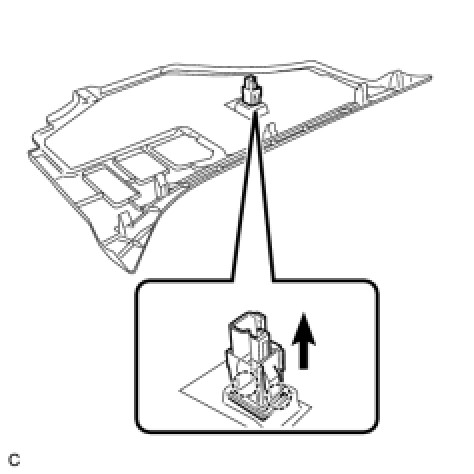

(a) Engage the 2 claws to install the tire pressure warning select switch to the No. 2 instrument panel under cover sub-assembly.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT: Test Mode Procedure
