Home >> Lexus >> 2009 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID

Fuse: Application and ID




Fuse Layout and Amperage Ratings

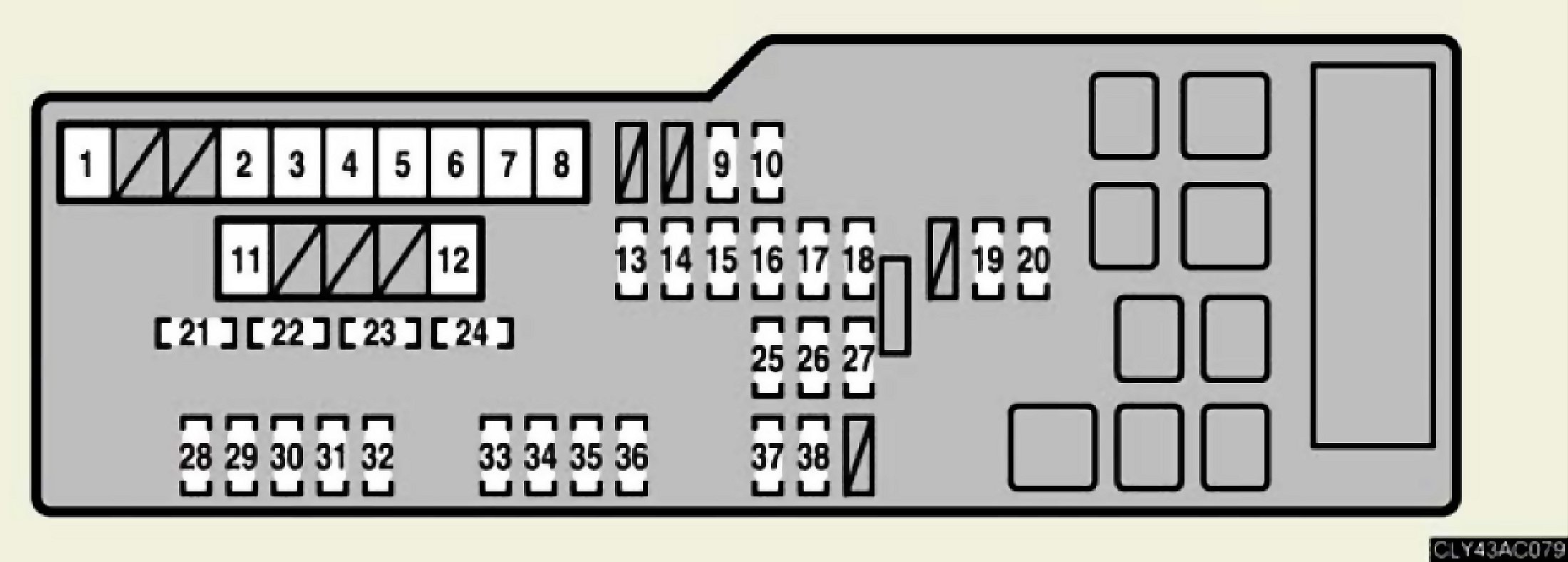

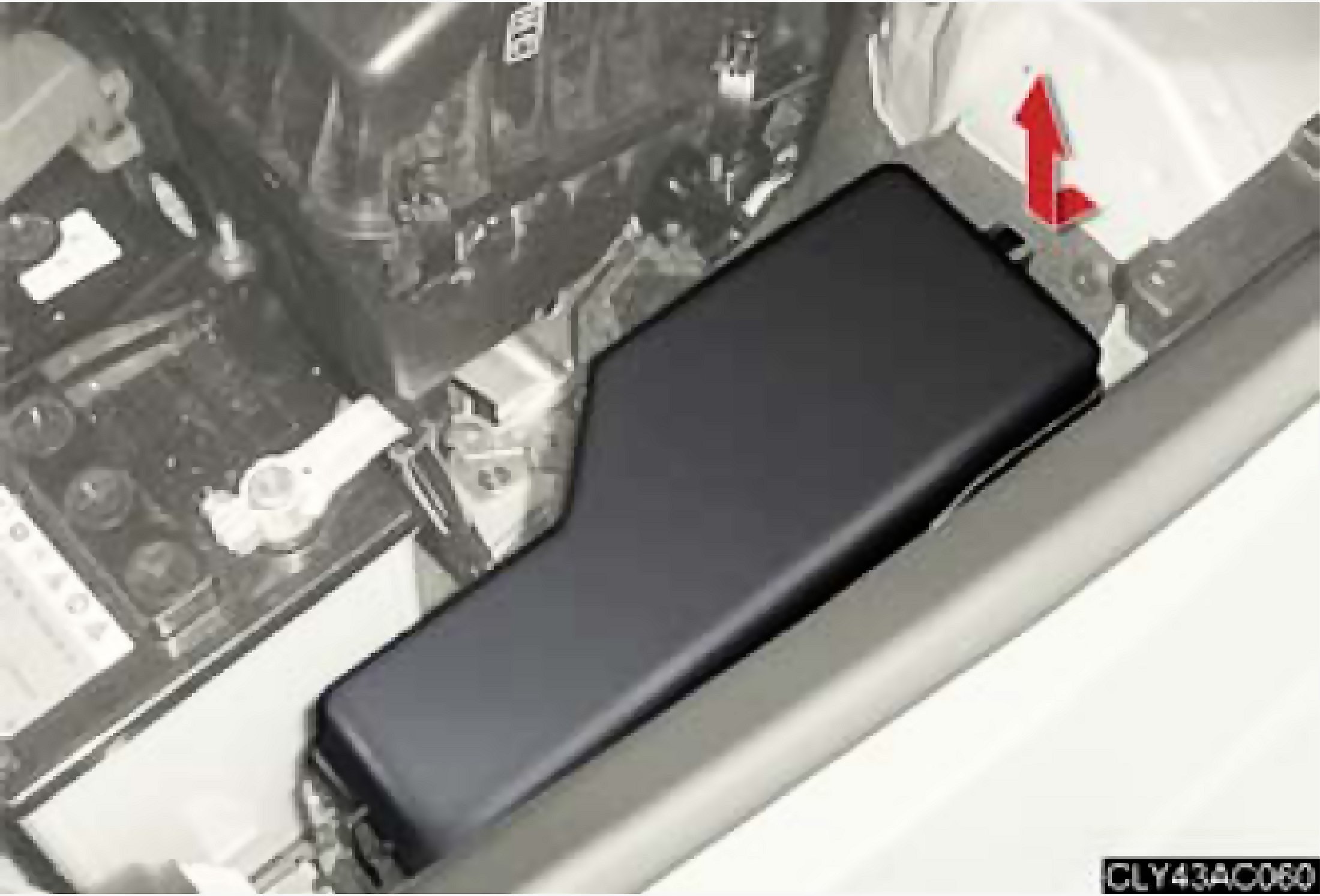

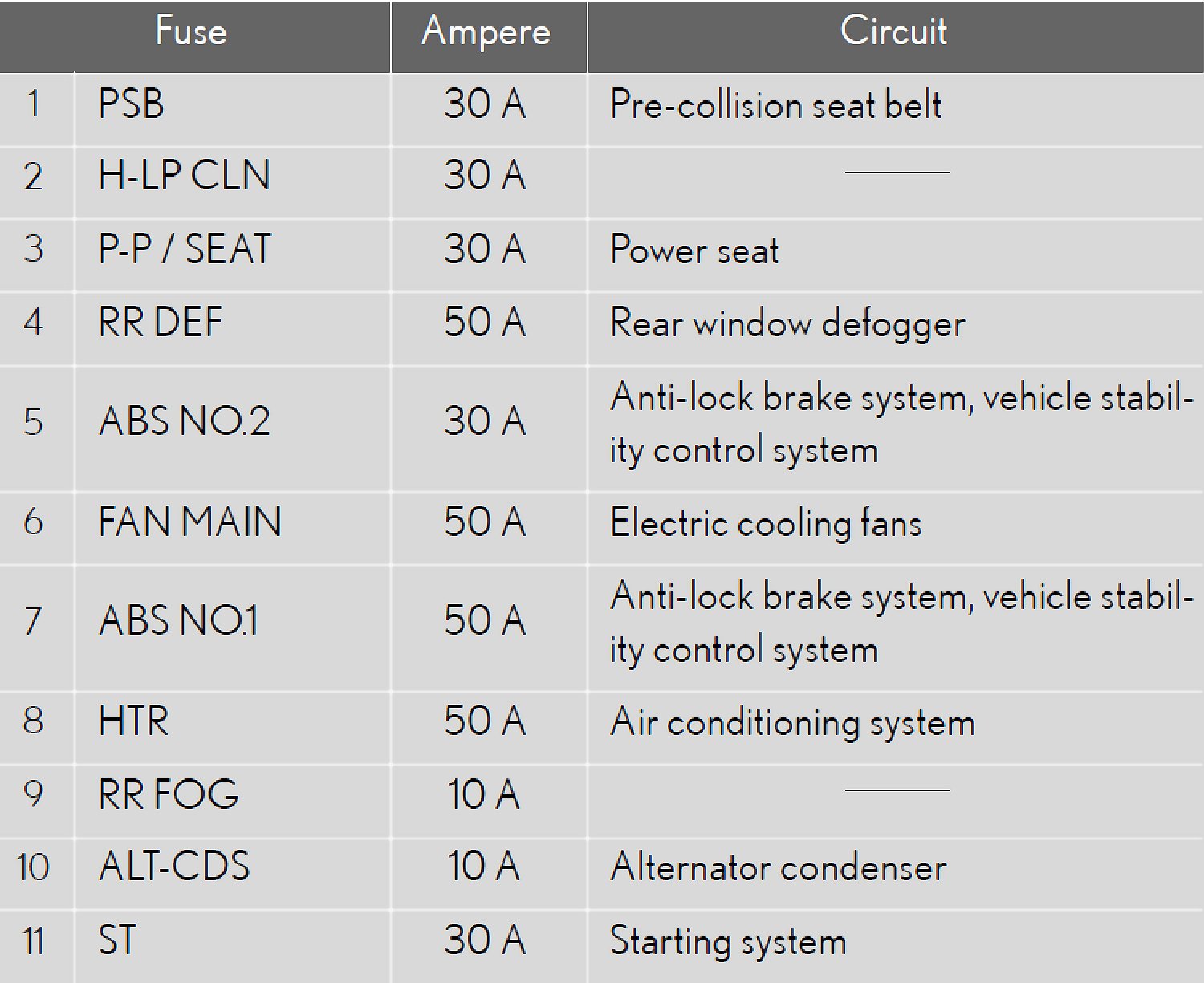

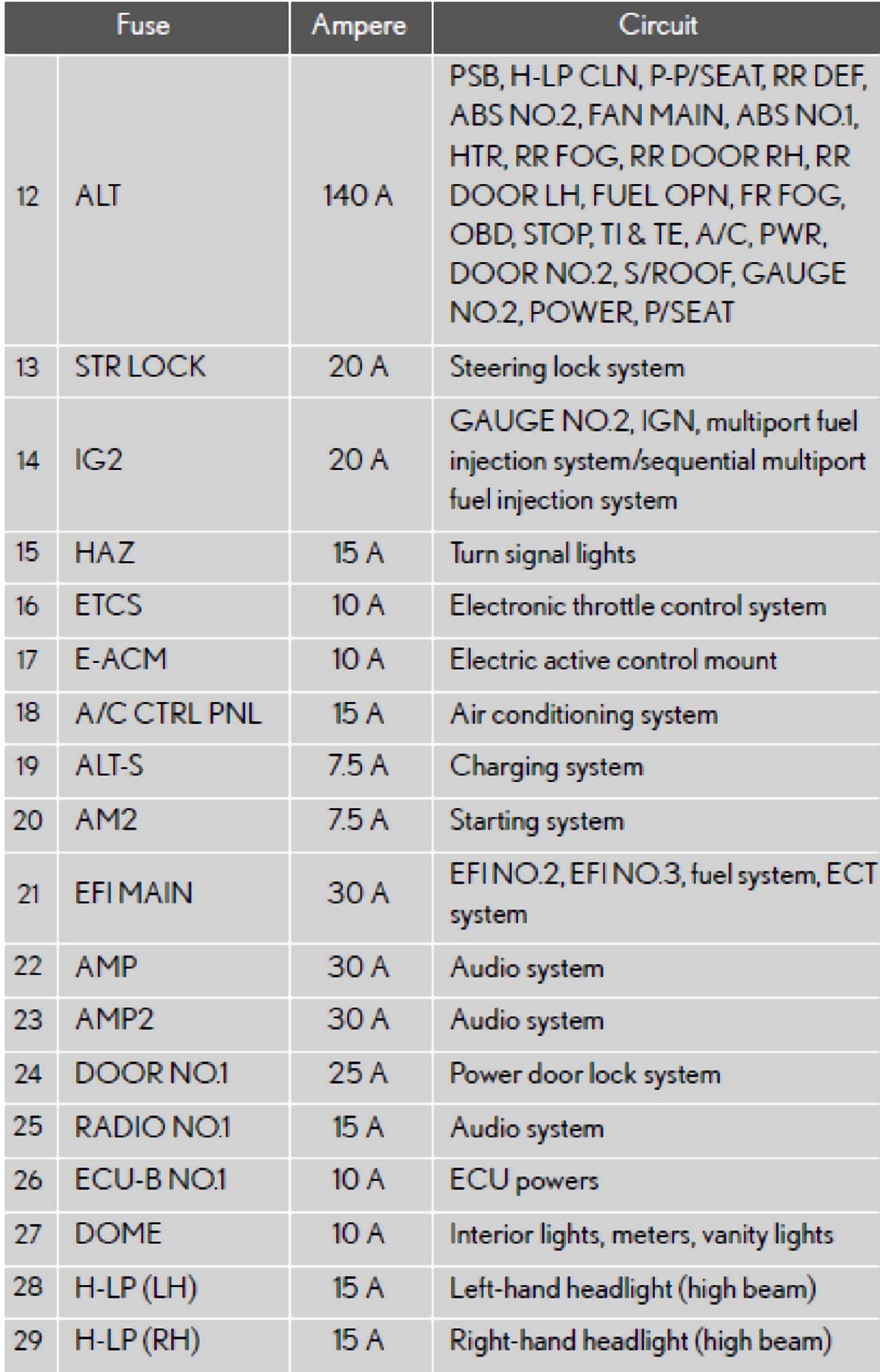

Fuse Block Location - Engine Compartment:





Fuse Location - Engine Compartment:

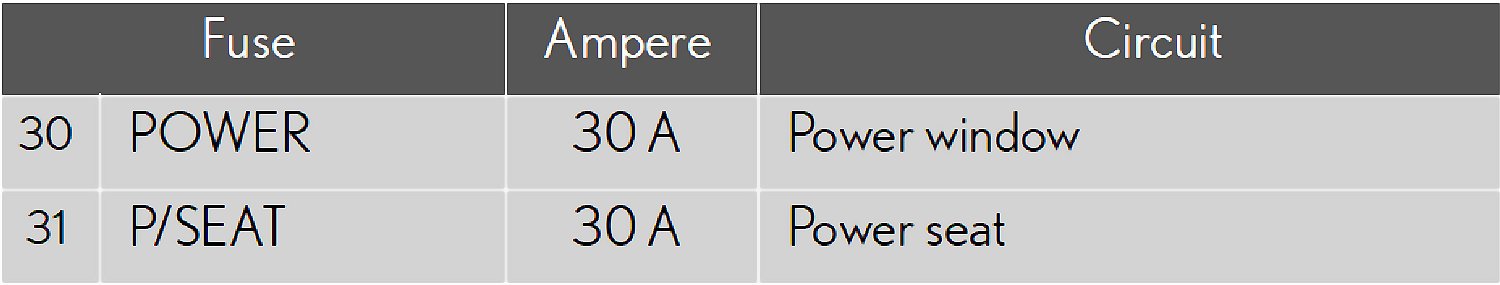

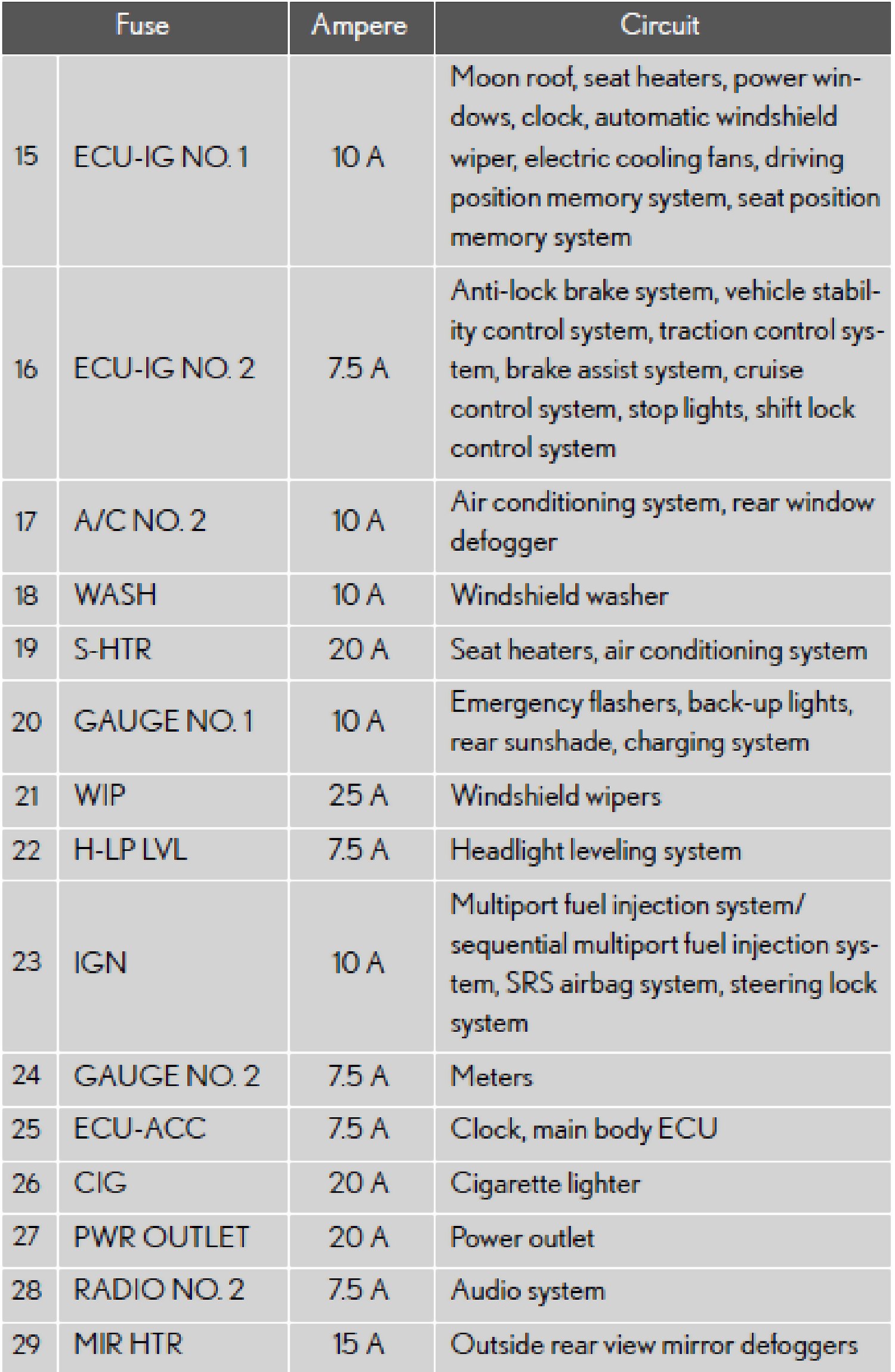

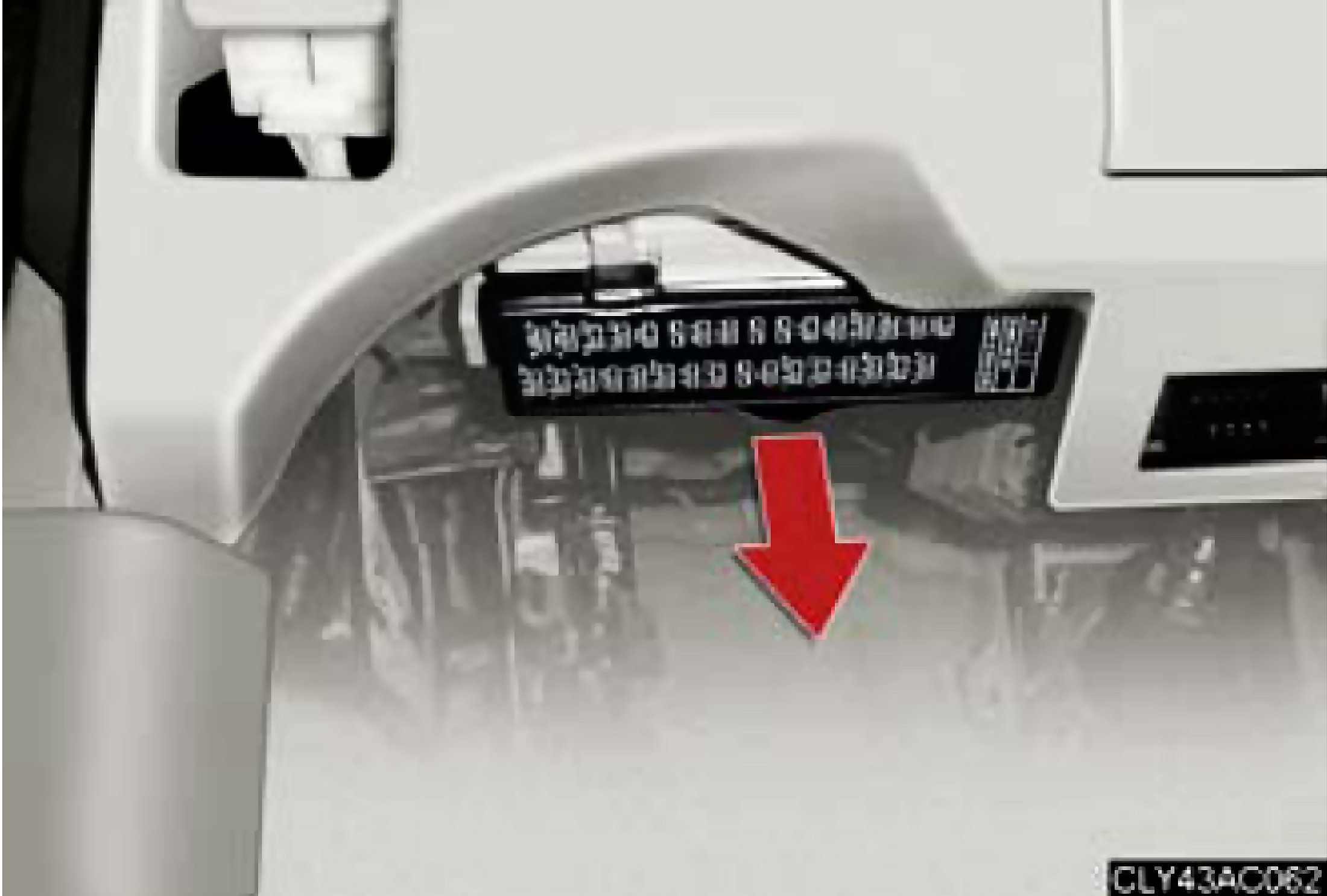

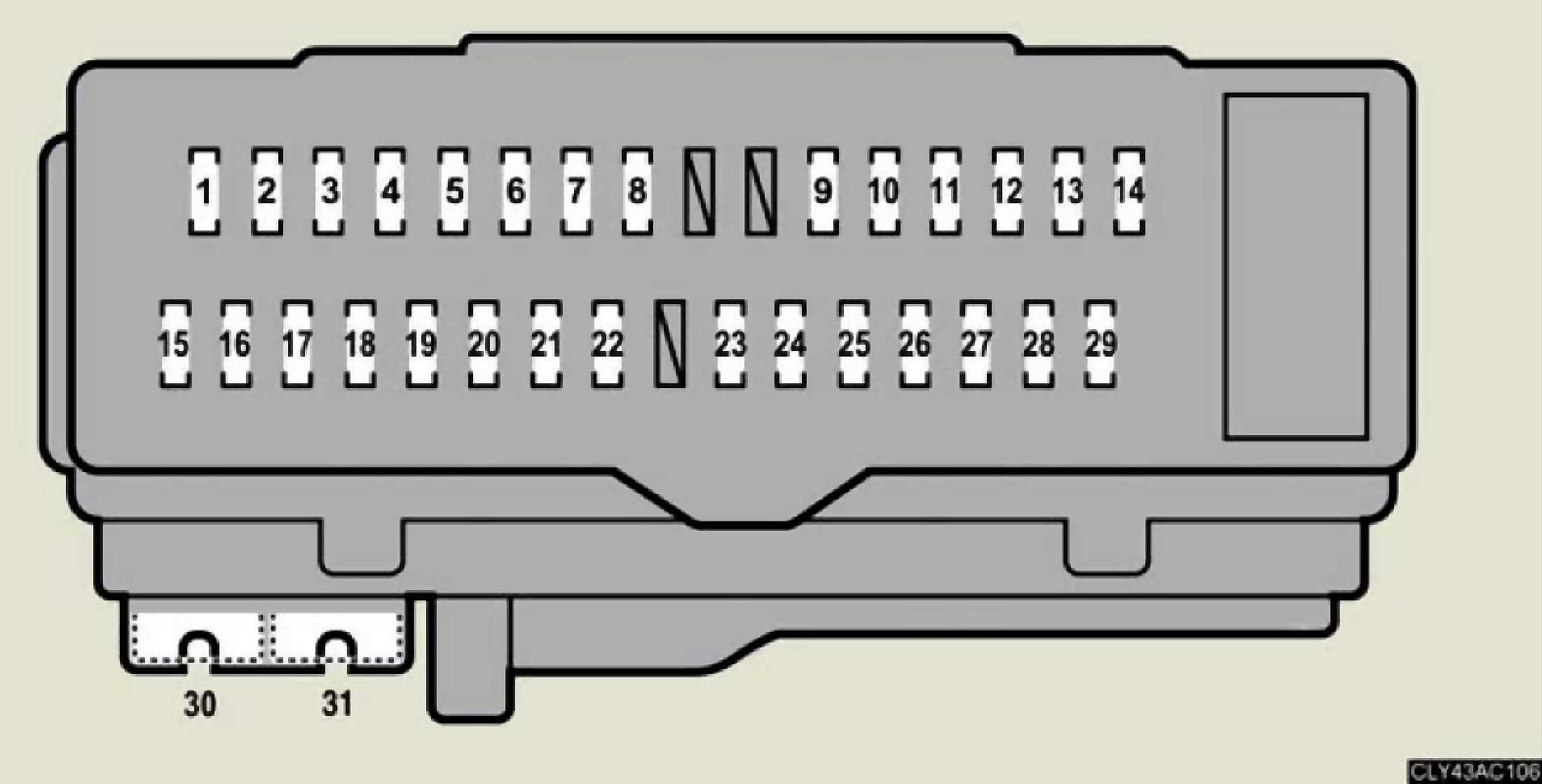

Fuse Block Location - Driver's Side Instrument Panel:





Fuse Location - Driver's Side Instrument Panel:
