Service Data

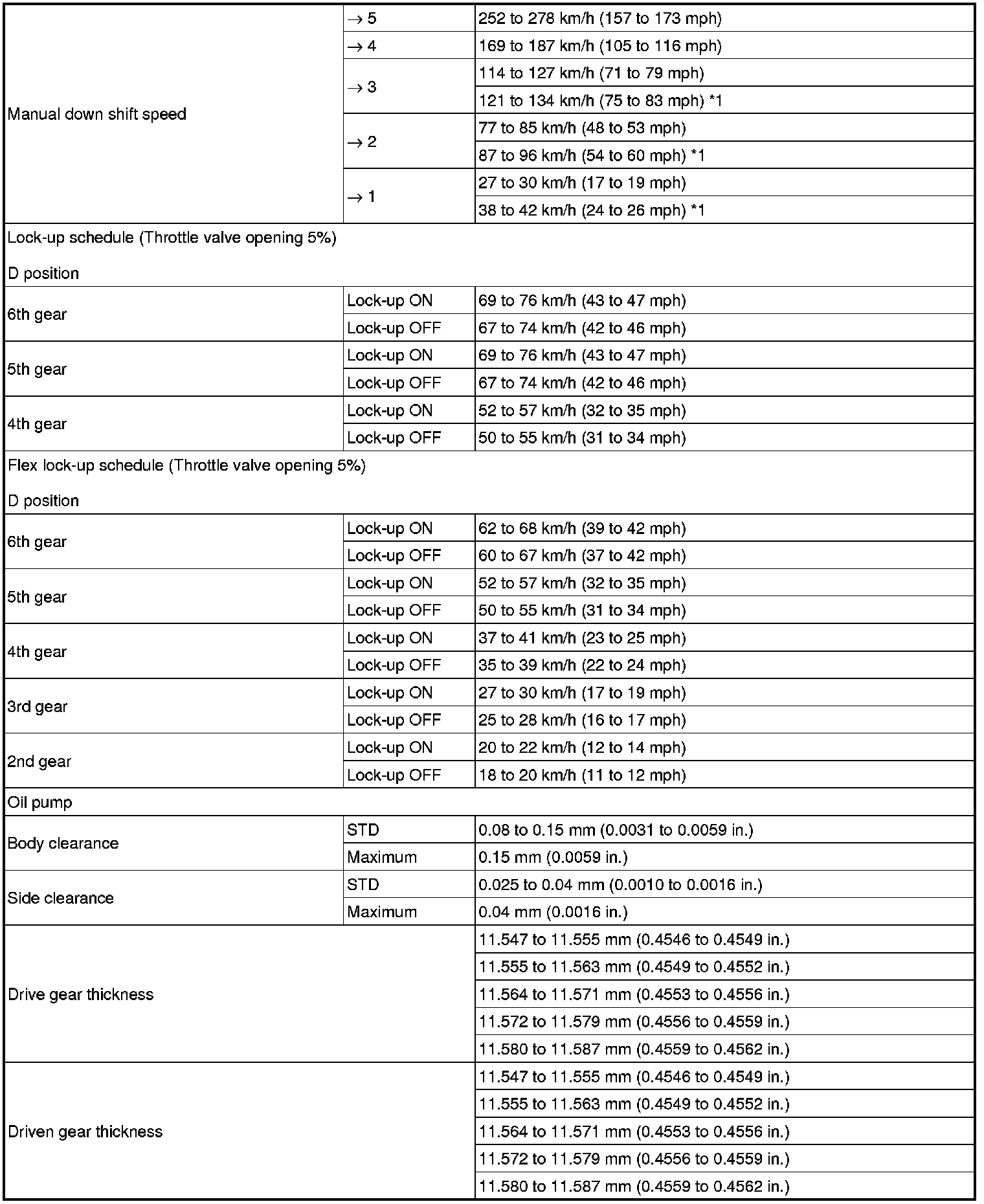

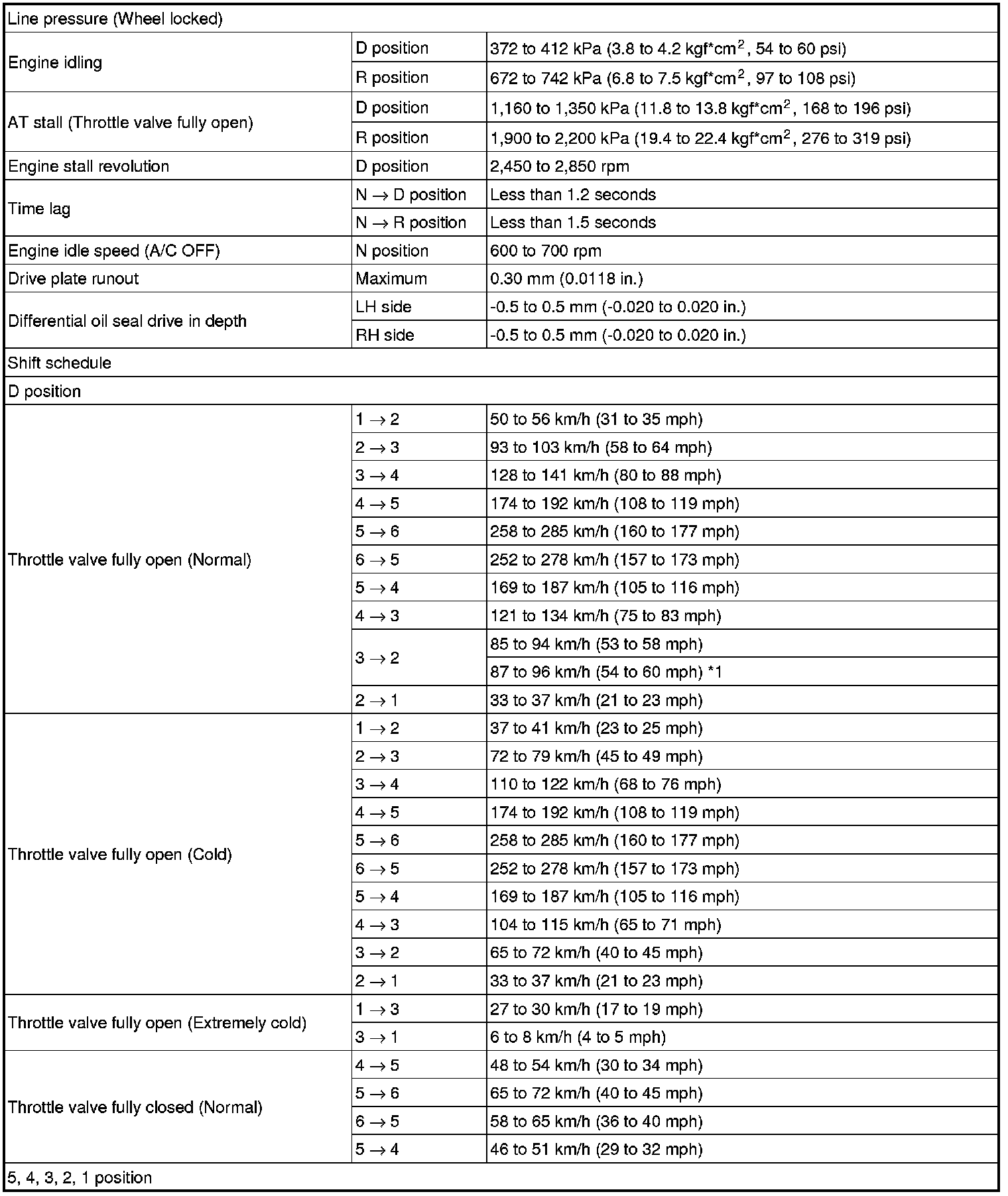

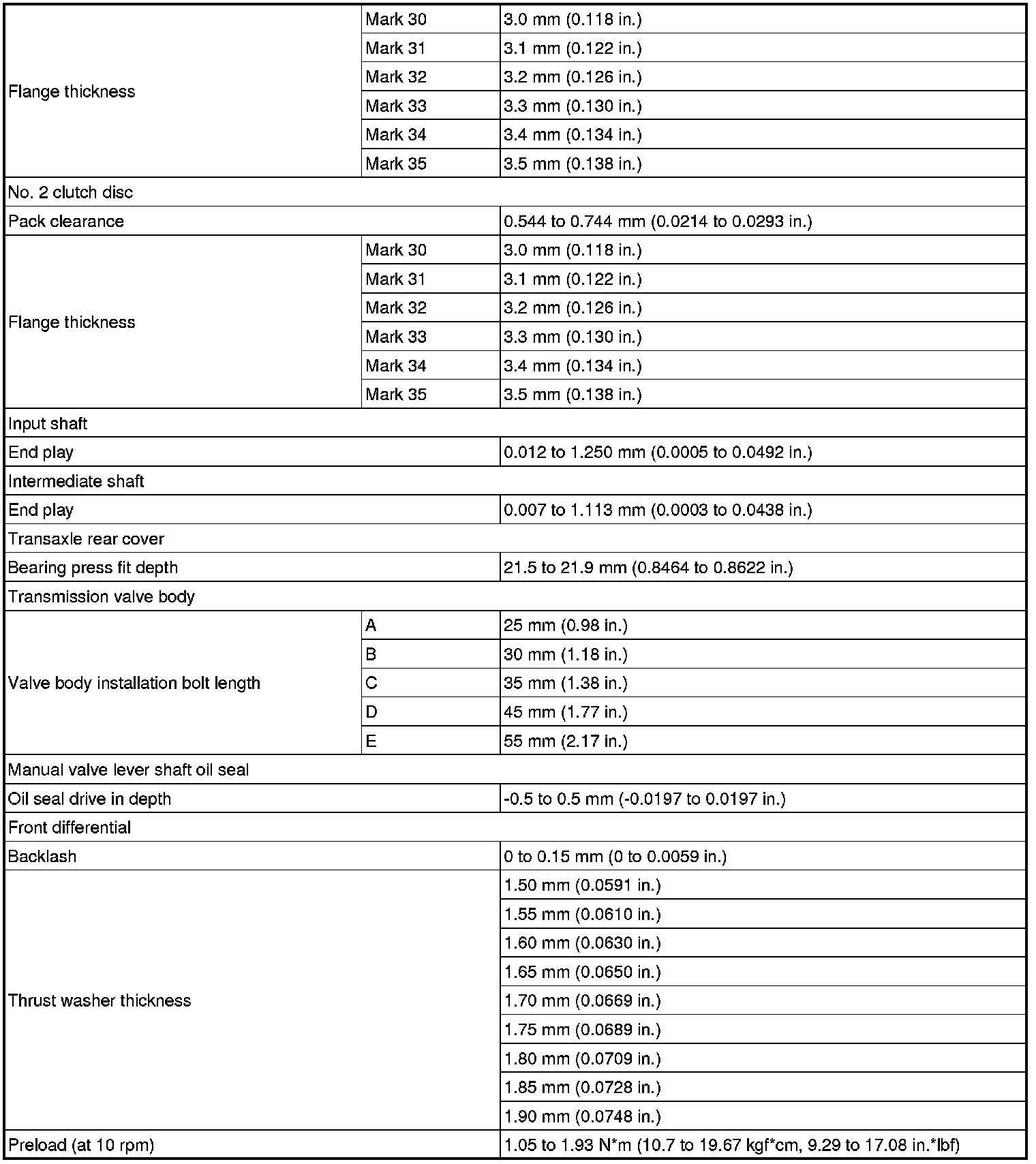

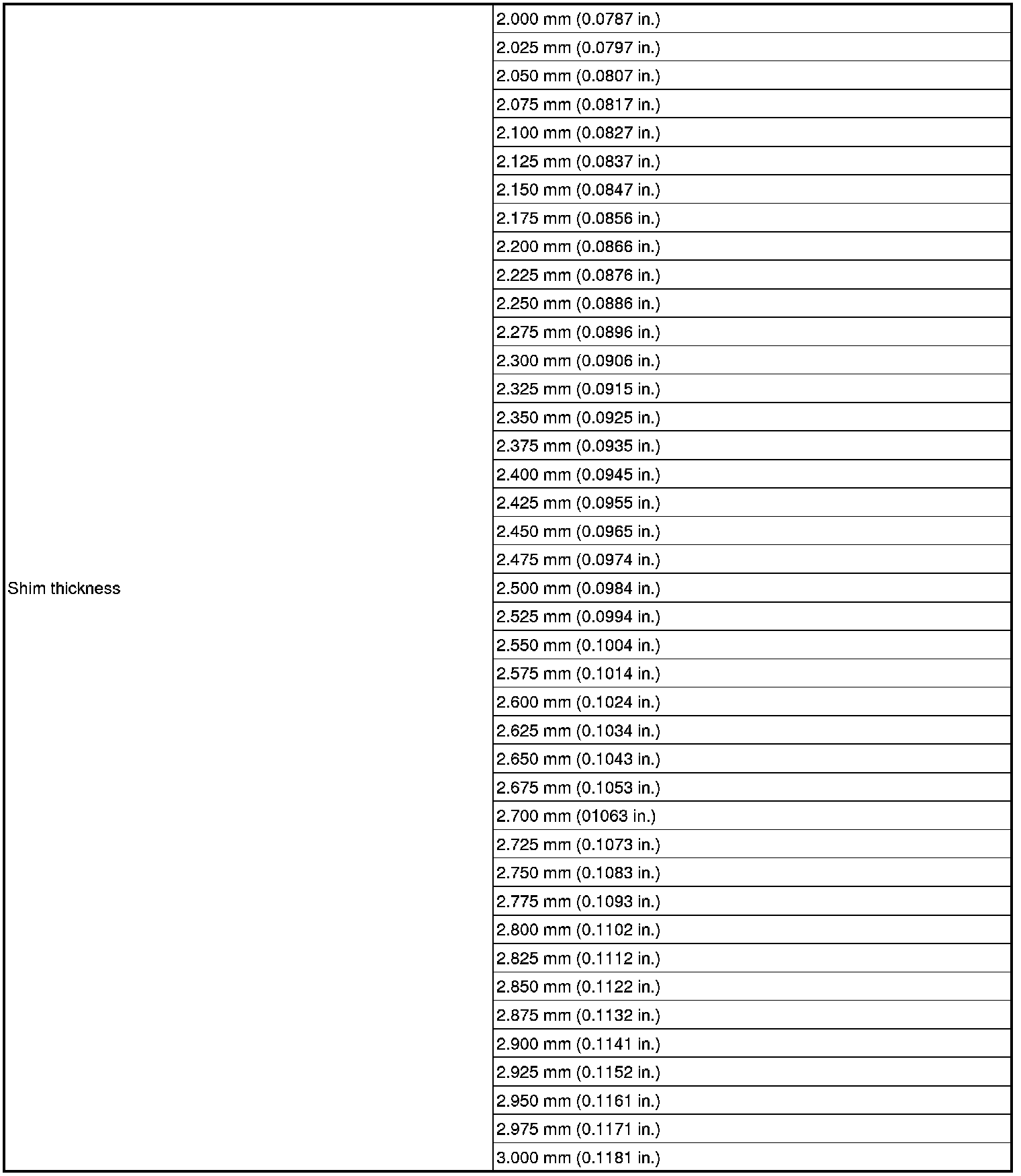

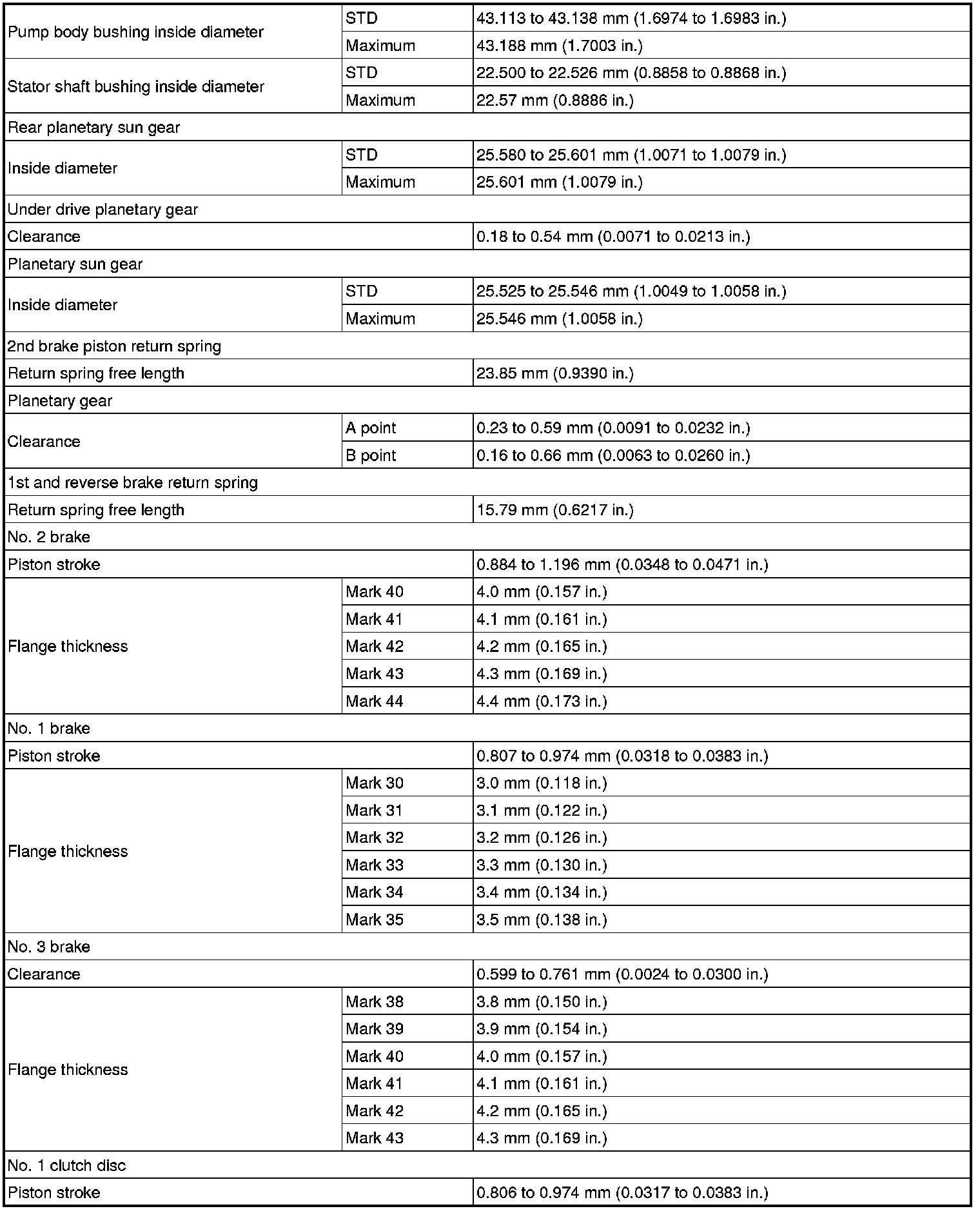

SERVICE SPECIFICATIONS: U660E AUTOMATIC TRANSAXLE: SERVICE DATA

SERVICE DATA

























*1: for South Korea and Brazil
