Control Module: Locations








U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM

PARTS LOCATION

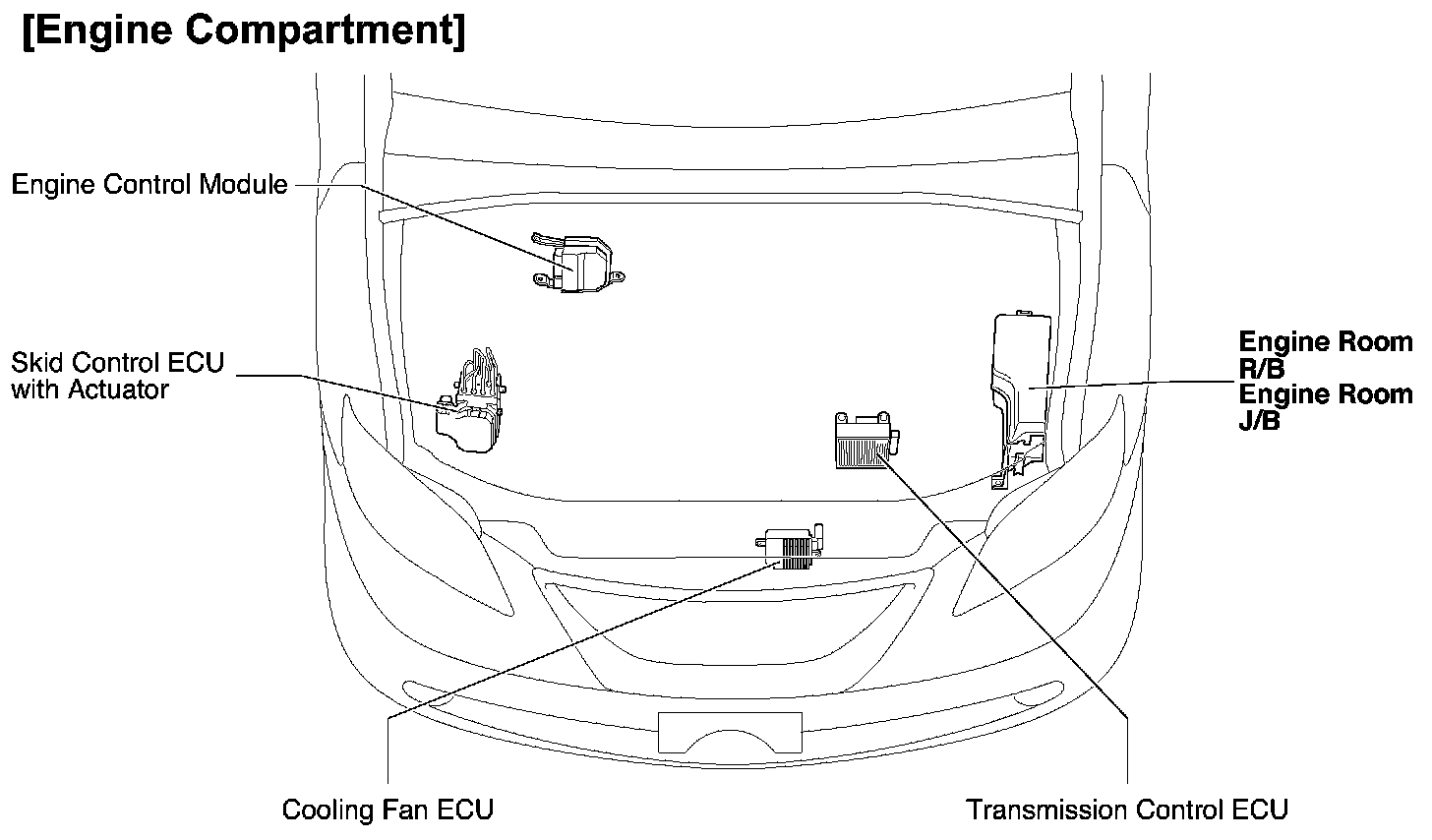

Engine Compartment:
