Installation

2GR-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL:

INSTALLATION

1. INSTALL ACCELERATOR PEDAL
NOTICE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.

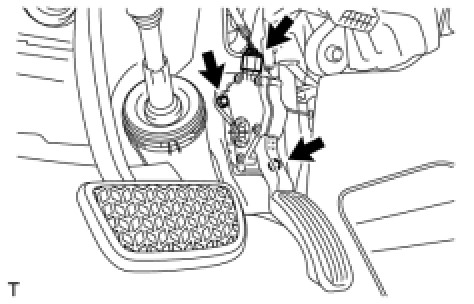

(a) Install the accelerator pedal assembly with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the accelerator pedal connector.
