Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY:

REMOVAL

1. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

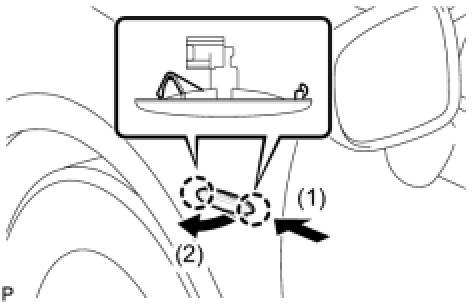

(a) Disengage the 2 claws and disconnect the side turn signal light assembly as shown in the illustration.
(b) Disconnect the connector and remove the side turn signal light assembly.
