Installation

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT:

INSTALLATION

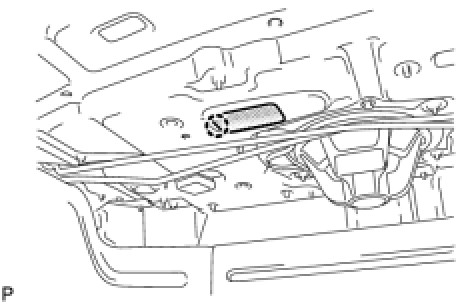

1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
(a) Connect the connector.





(b) Engage the claw and install the No. 1 luggage compartment light assembly.
