LIGHTING: GLOVE BOX LIGHT: INSPECTION

INSPECTION

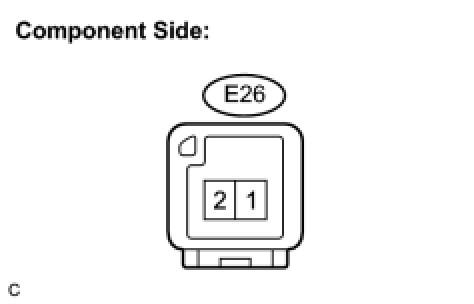

1. INSPECT GLOVE BOX LIGHT ASSEMBLY





(a) Disconnect the E26 glove box light assembly connector.

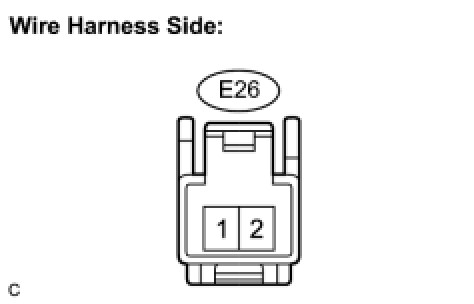

(b) Measure the voltage according to the value(s) in the table below.

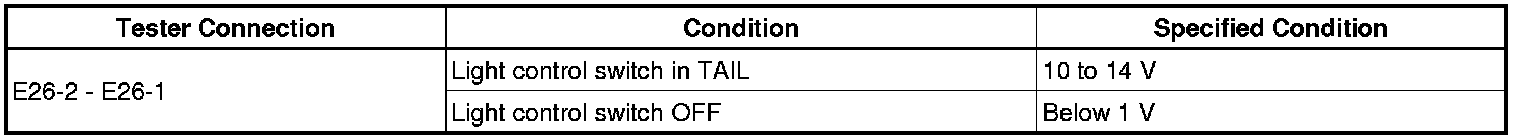

Standard voltage:





If the result is not as specified, there is a malfunction on the wire harness side.





(c) Apply battery voltage to the glove box light assembly connector.
(d) Check that the glove box light comes on.

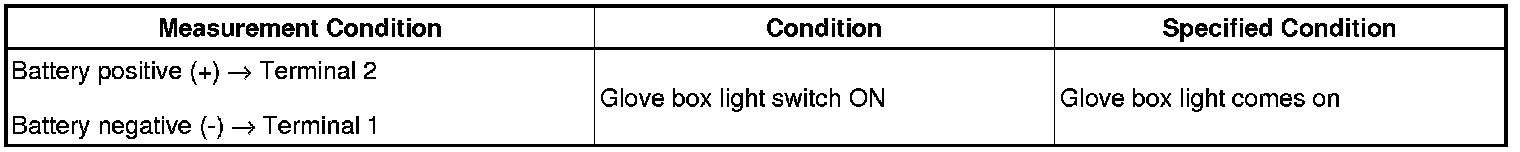

OK:





If the result is not as specified, replace the glove box light assembly.
