Removal

BRAKE: REAR BRAKE FLEXIBLE HOSE:

REMOVAL

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE REAR BRAKE FLEXIBLE HOSE





(a) Remove the union bolt and separate the rear brake flexible hose.
(b) Remove the gasket from the rear brake flexible hose.





(c) Remove the bolt and separate the rear brake flexible hose.

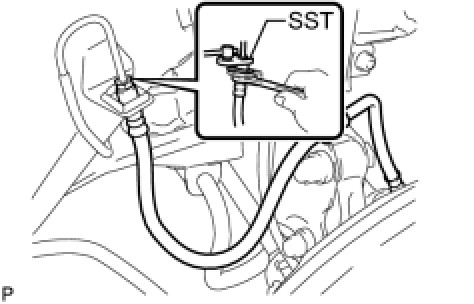

(d) Using SST, remove the brake line while holding the rear brake flexible hose with a wrench.
SST: 09023-00101
- Do not bend or damage the brake line.
- Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

(e) Remove the clip.
