Front Power Seat Control System (w/o Seat Position Memory System)

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/o Seat Position Memory System):

PROBLEM SYMPTOMS TABLE
HINT:
- Inspect the fuses and relays before inspecting the suspected areas in the table below.
- Inspect each suspected area in numerical order for the corresponding symptom.

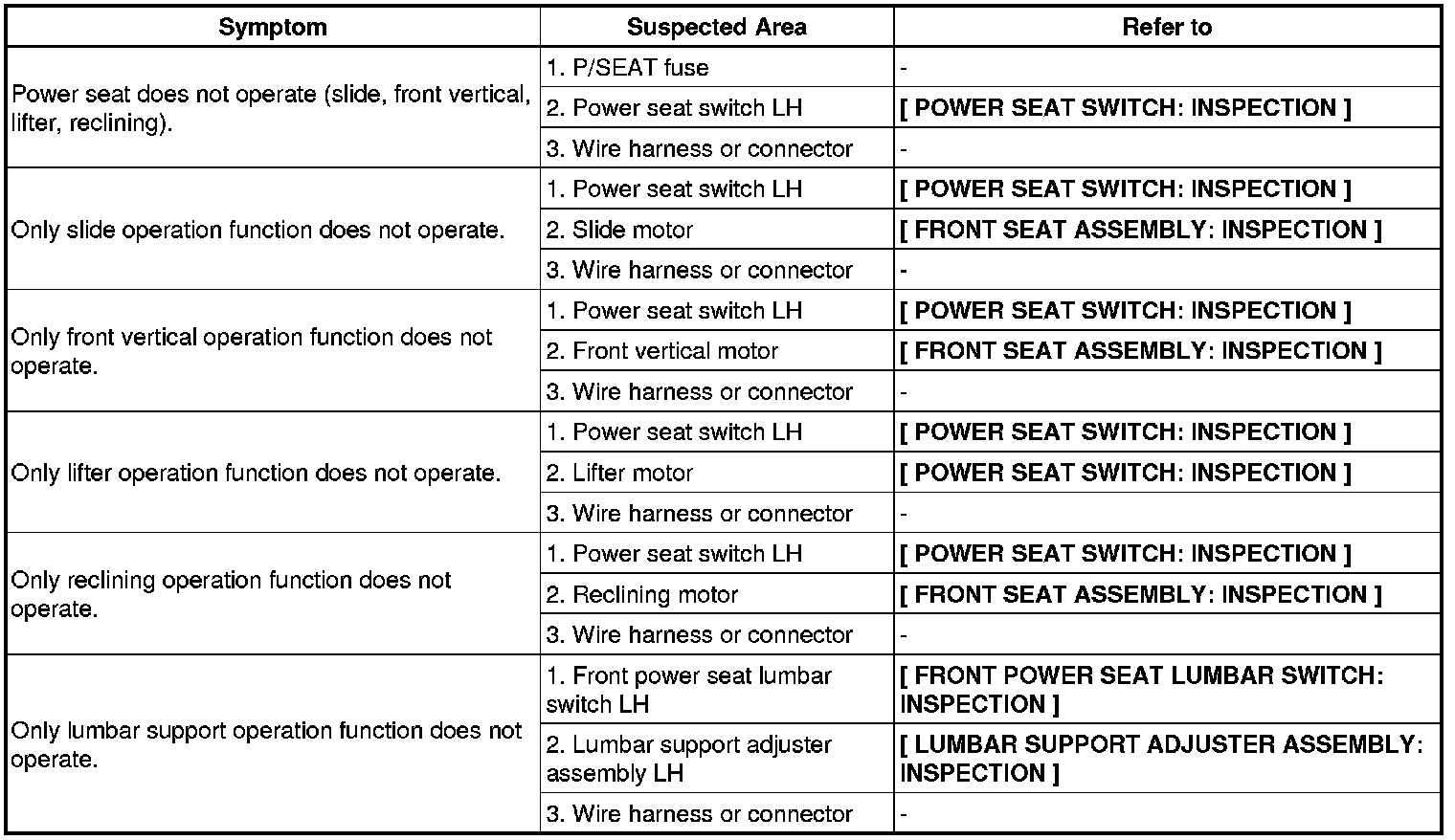

Front Power Seat Control System (Driver Side):





Front Power Seat Control System (Passenger Side):
