Disassembly

SLIDING ROOF: SLIDING ROOF HOUSING (for Standard): DISASSEMBLY

DISASSEMBLY

1. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY





(a) Disengage the claw and remove the sliding roof room light bracket.





(b) Remove the 2 bolts and sliding roof drive gear sub-assembly.
2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY





(a) Remove the screw and sliding roof piece sub-assembly LH.
HINT: Use the same procedure for the RH side and the LH side.

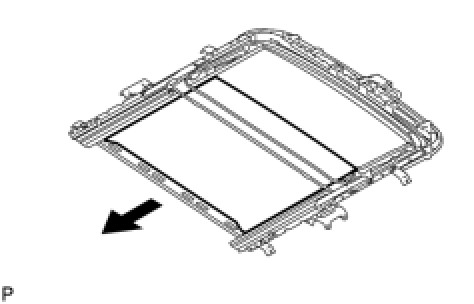

(b) Slide and remove the sunshade trim sub-assembly.
3. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
NOTE:
Do not remove the sliding roof drive cable sub-assembly except when replacing it.





(a) Remove the 2 screws and sliding roof side stoppers.

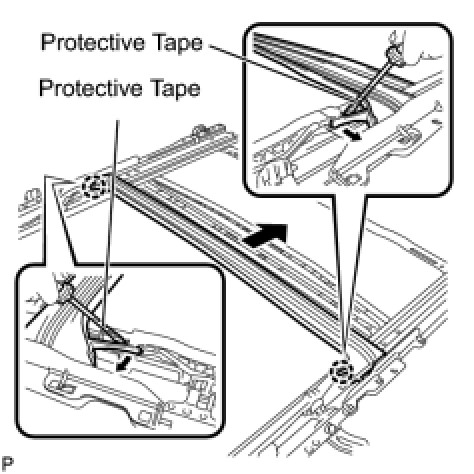

(b) Using a screwdriver, disengage the 2 claws. Then slide the sliding roof drip channel rearward to remove it.
HINT: Tape the screwdriver tip before use.

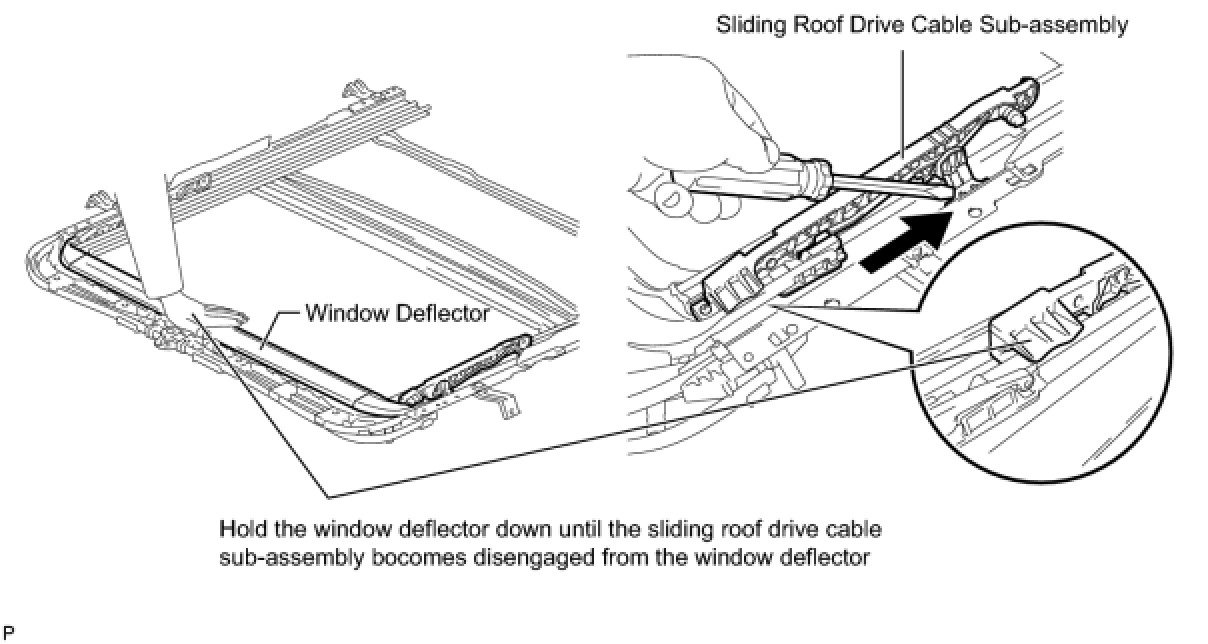

(c) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it.




HINT: Hold the window deflector down, as shown in the illustration, until the sliding roof drive cable sub-assembly becomes disengaged from the window deflector.
