Disassembly

INTERIOR: REAR CONSOLE BOX: DISASSEMBLY

DISASSEMBLY

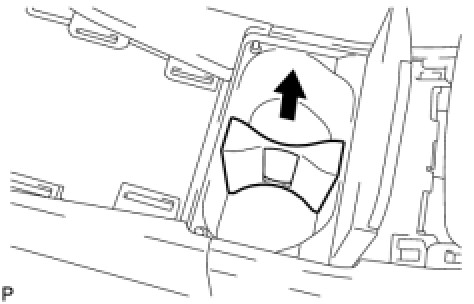

1. REMOVE NO. 5 CONSOLE BOX RETAINER





(a) Remove the No. 5 console box retainer as shown in the illustration.

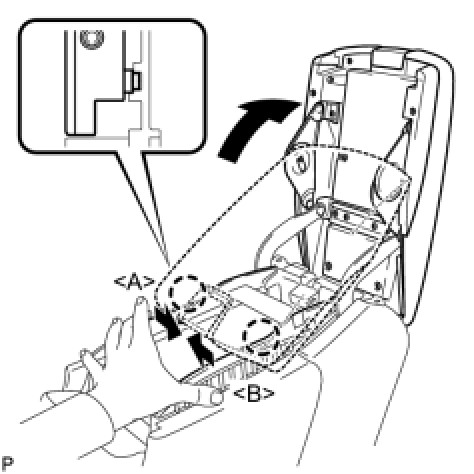

2. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY





(a) Open the console compartment door sub-assembly.





(b) Slightly deform areas [A] and [B] of the console box assembly inward to disengage the 2 claws. Next, raise the console compartment door sub-assembly as shown in the illustration.





(c) Remove the 4 screws and the console compartment door sub-assembly.

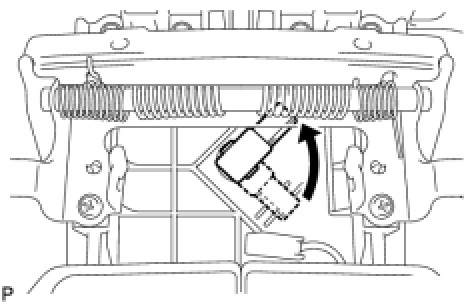

3. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY





(a) Loosen the 10 screws and disconnect the connector.





(b) Turn the console box illumination light assembly in the direction indicated by the arrow and remove it.
4. REMOVE POWER OUTLET SOCKET ASSEMBLY Removal
5. REMOVE POWER OUTLET SOCKET COVER Removal
6. REMOVE AUDIO TERMINAL Removal
