AUDIO / VISUAL: REAR CENTER SPEAKER:

INSTALLATION

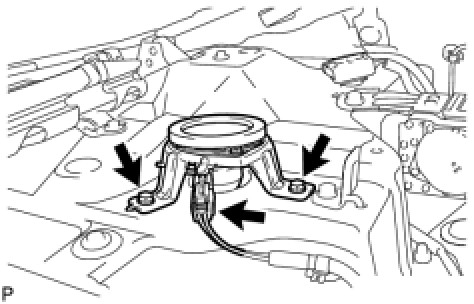

1. INSTALL REAR HEADER SPEAKER ASSEMBLY (w/ Rear Header Speaker)





(a) Install the rear header speaker assembly with the 2 bolts.
(b) Connect the connector.

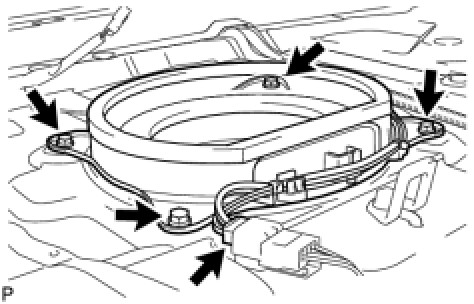

2. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY





(a) Install the stereo component speaker assembly with the 4 bolts.
(b) Connect the connector.

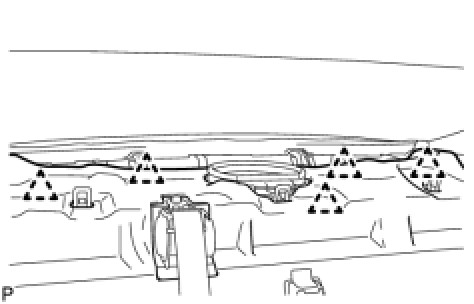

(c) Install the carpet with the 5 clips.
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Installation
4. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Installation
5. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Installation
6. INSTALL CENTER STOP LIGHT SET Installation
7. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation
8. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Installation
9. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Installation
10. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH Installation
11. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH Installation
12. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH Installation
13. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag) Installation
14. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag) Installation
15. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag) Installation
16. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag) Installation
17. INSTALL REAR DOOR SCUFF PLATE LH Installation
18. INSTALL REAR DOOR SCUFF PLATE RH Installation
19. INSTALL REAR SEATBACK ASSEMBLY Installation
20. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT HEADREST ASSEMBLY
22. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)
24. PERFORM INITIALIZATION (w/ Rear Seat Side Airbag)
NOTE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

25. INSPECT SRS WARNING LIGHT (w/ Rear Seat Side Airbag) Diagnosis System
