Theft Deterrent System

THEFT DETERRENT: THEFT DETERRENT SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK MAIN BODY ECU (INSTRUMENT PANEL J/B)
(a) Disconnect the main body ECU (instrument panel J/B) connectors.

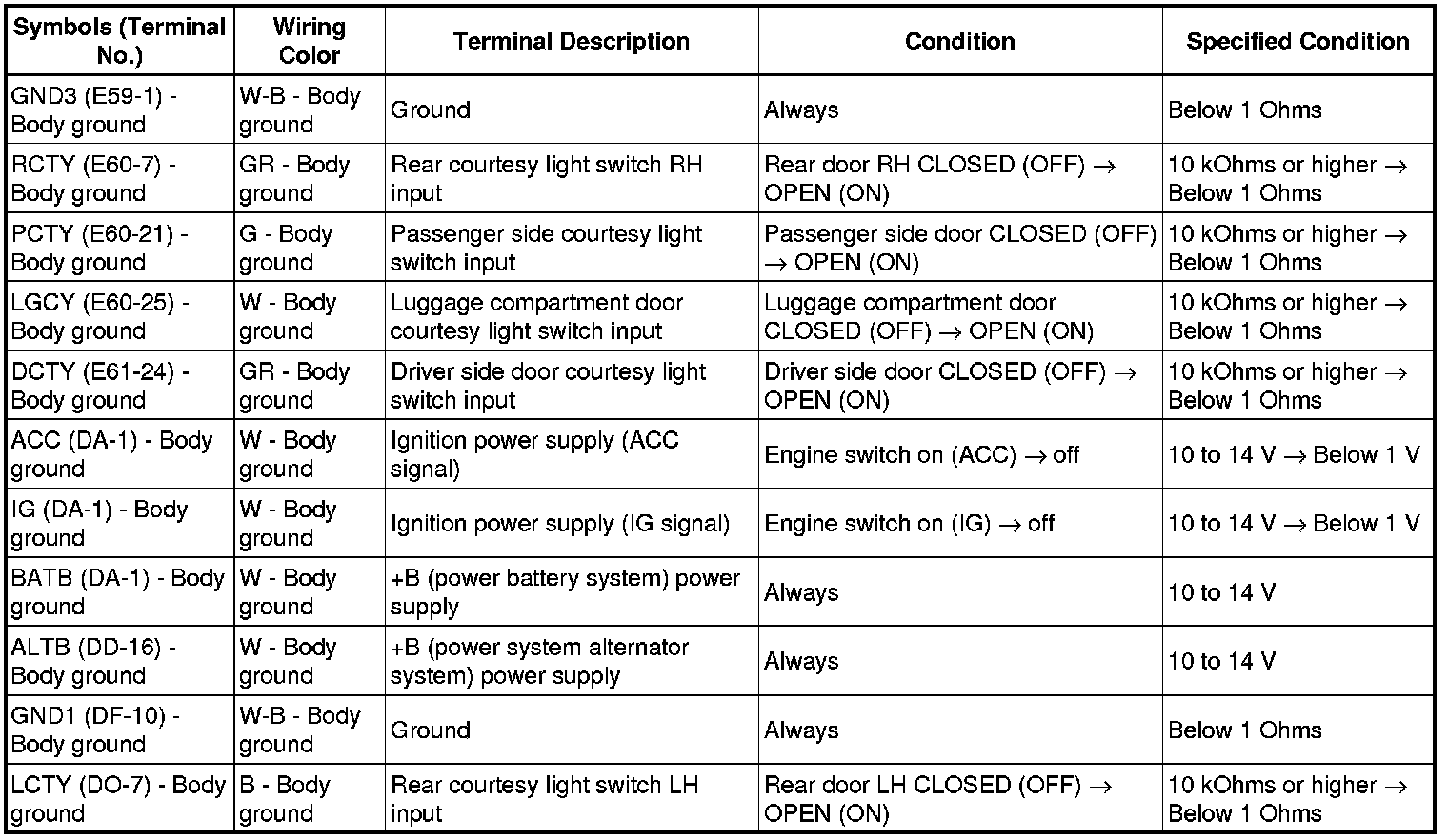

(b) Measure the resistance and voltage between each terminal of the wire harness side connectors and body ground.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the main body ECU (instrument panel J/B) connectors.

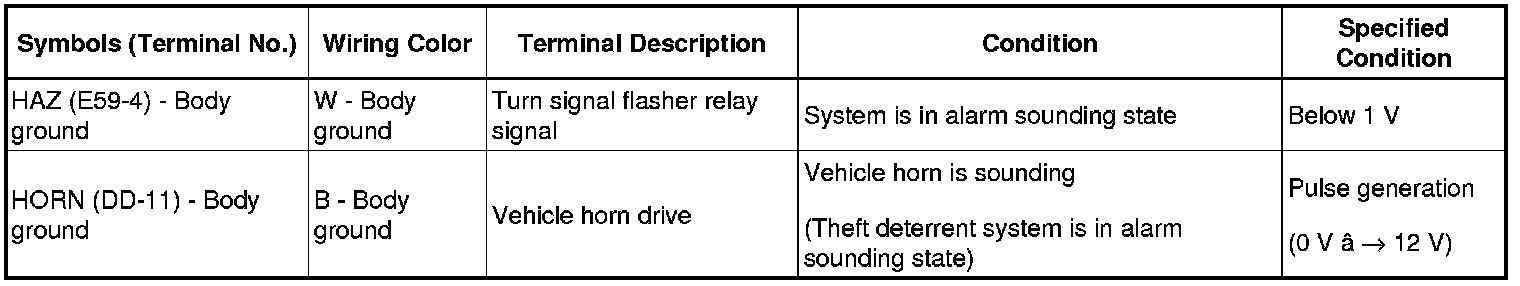

(d) Measure the voltage between each terminal of the wire harness side connectors and body ground.





If the result is not as specified, the ECU may have a malfunction.
2. CHECK CERTIFICATION ECU ASSEMBLY

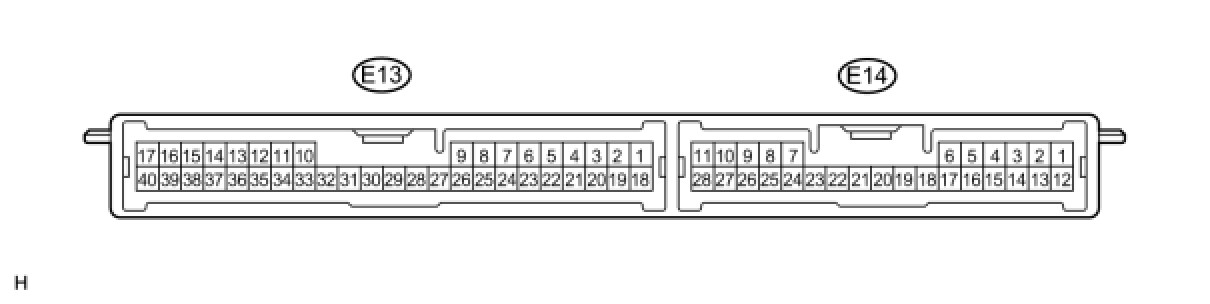

(a) Disconnect the E13 and E14 ECU connectors.

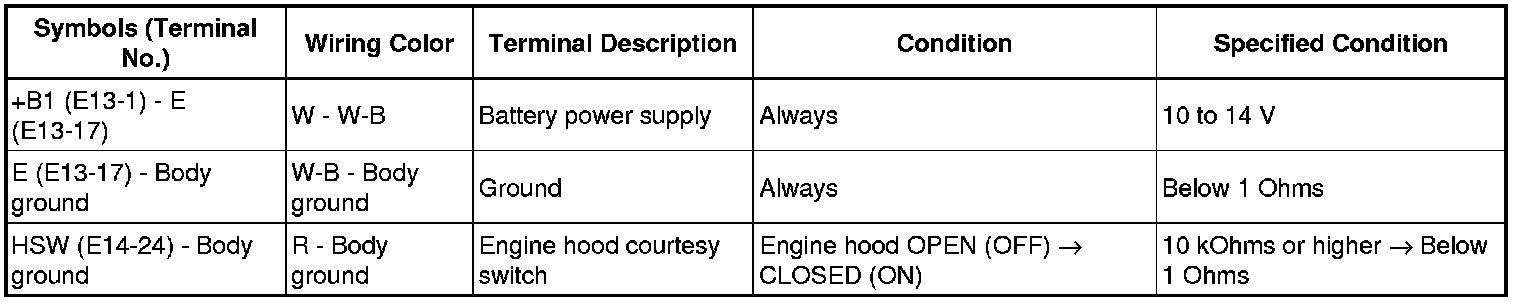

(b) Measure the voltage and resistance of the wire harness side connector.





- If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the E13 and E14 ECU connectors.

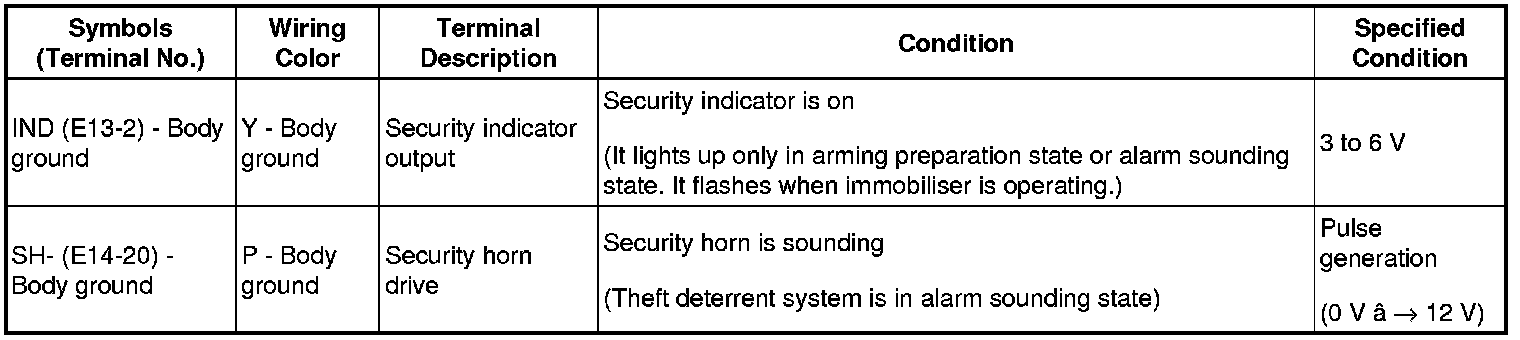

(d) Measure the voltage of the connector.





- If the result is not as specified, the ECU may have a malfunction.
