Removal

SUSPENSION: FRONT SUSPENSION NO. 2 LOWER ARM:

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY
(a) Remove the 10 bolts and ornament.
2. REMOVE FRONT WHEEL
(a) Remove the 5 nuts and wheel.
3. REMOVE NO. 2 ENGINE UNDER COVER
4. REMOVE FRONT SUSPENSION NO. 2 LOWER ARM SUB-ASSEMBLY LH





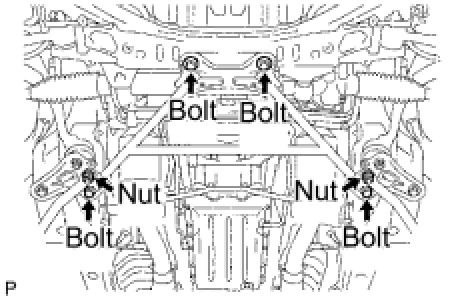

(a) Remove the 2 nuts and disconnect the front suspension member brace rear.
(b) Remove the 4 bolts and front suspension member brace.

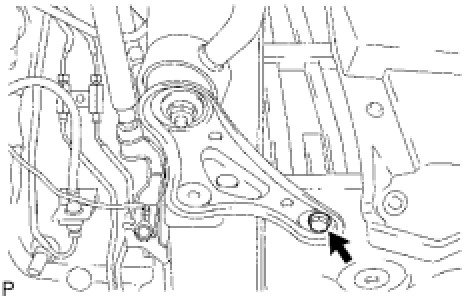

(c) Remove the bolt.

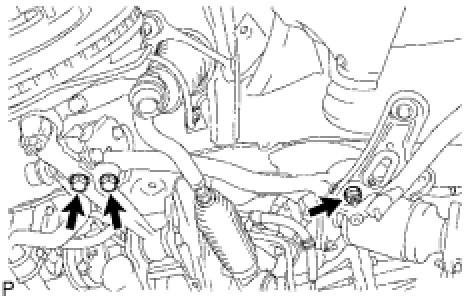

(d) Remove the 2 bolts, nut, front suspension No. 2 lower arm and strut bar bracket.
