SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Fuel Delivery and Air Induction
>>
System Specifications
>>
Torque Specifications
Torque Specifications
SERVICE SPECIFICATIONS: TORQUE SPECIFICATIONS

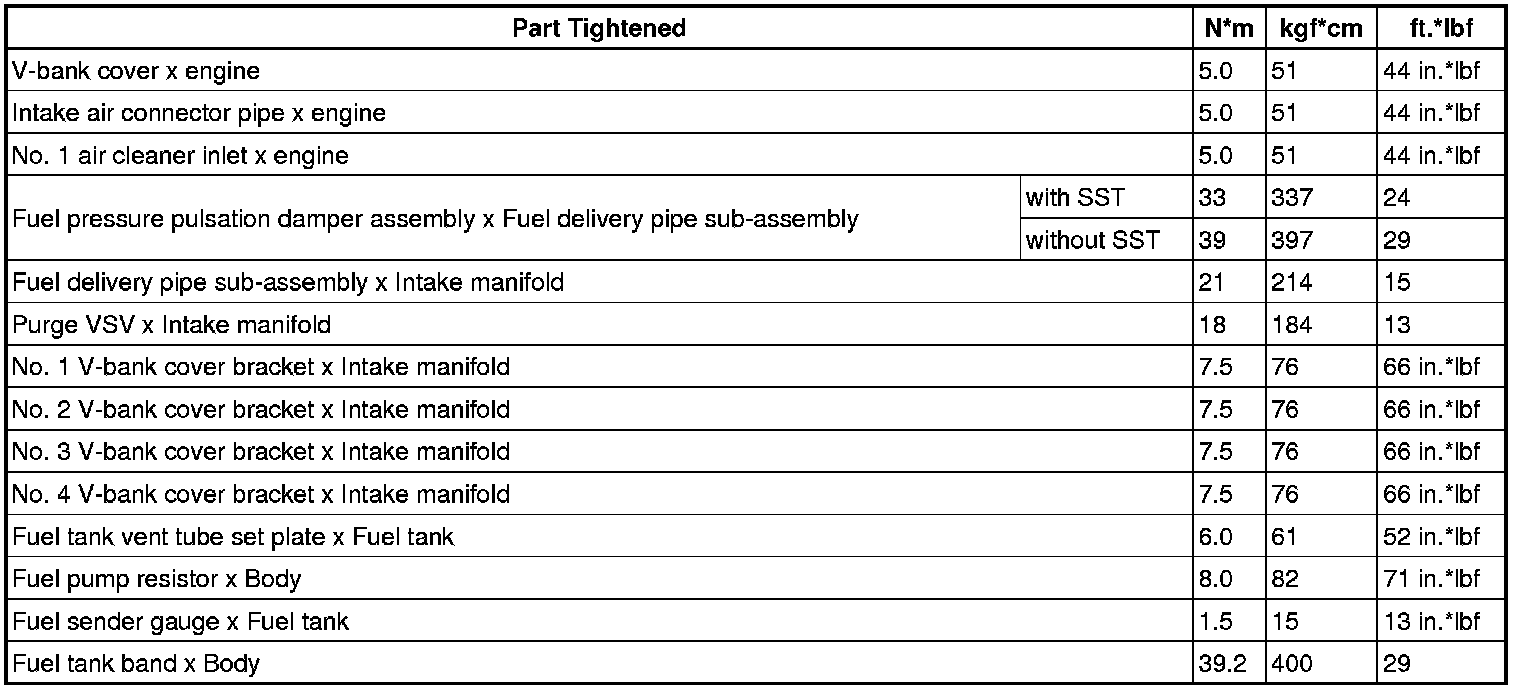

3UZ-FE FUEL

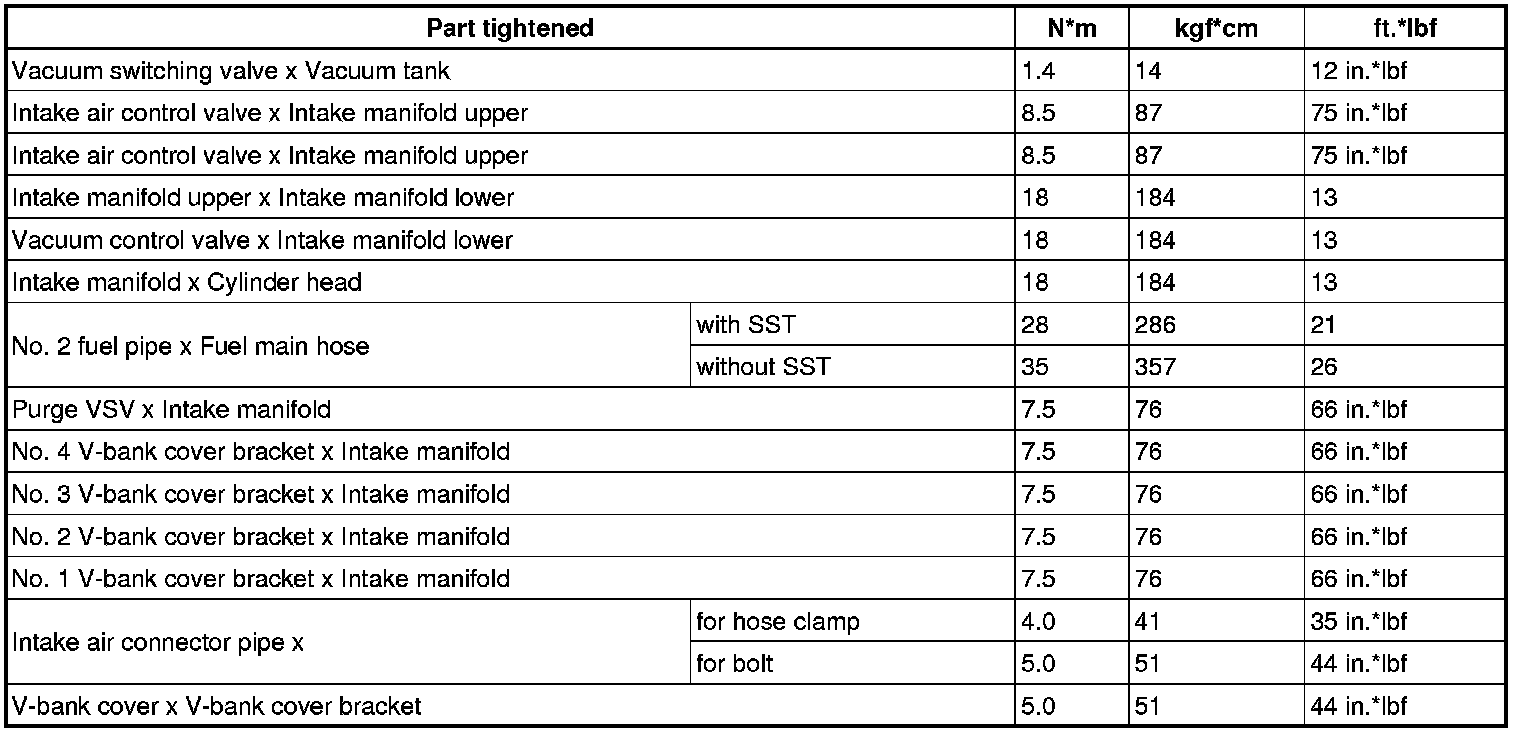

3UZ-FE INTAKE
