Water Pump
Water Pump

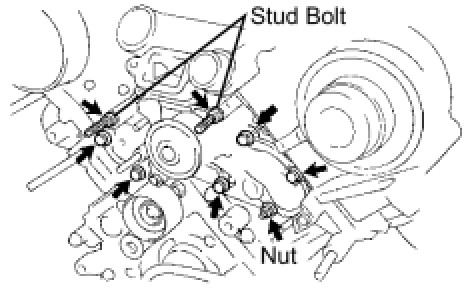

Water pump: for bolts: 21 Nm (15 ft. lbf.)
Water pump: for stud bolts and nuts: 18 Nm (13 ft. lbf.)
