Rod Bearing Cap

HINT: If any one of the connecting rod cap bolts is broken or deformed, replace it.

Install and alternately tighten the 2 connecting rod cap bolts in several passes.
Torque: 24.5 Nm (250 kgf-cm, 18 ft-lbf)

If any of the connecting rod cap bolts cannot meet the torque specification, replace the connecting rod cap bolts.

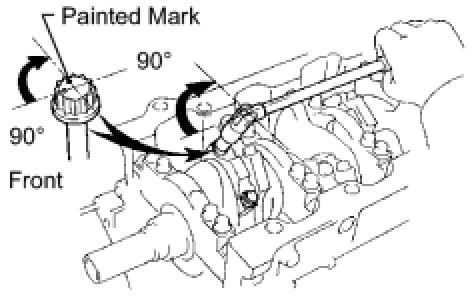

Tighten the cap bolts another 90° as shown in the illustration.
