Flexplate

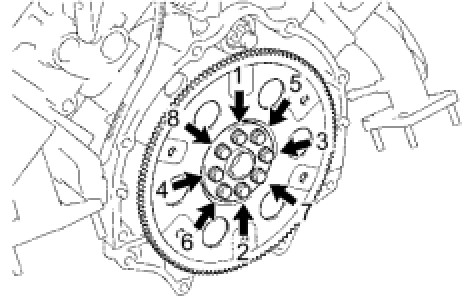

Flexplate - Drive plate & ring gear sub-assembly x Crankshaft
1st 49 Nm (36 ft.lbf)
2nd Turn 90 degrees
