Removal

LIGHTING: TURN SIGNAL LIGHT SWITCH:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

4. REMOVE STEERING COLUMN COVER UPPER
5. REMOVE STEERING COLUMN COVER LOWER

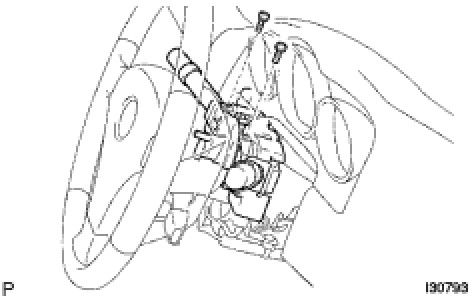

6. REMOVE TURN SIGNAL SWITCH ASSEMBLY
(a) Disconnect the connector.
(b) Remove the 2 screws and switch.
