Installation

CRUISE CONTROL MAIN SWITCH:

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY





(a) Install the switch and steering wheel boss cover lower.

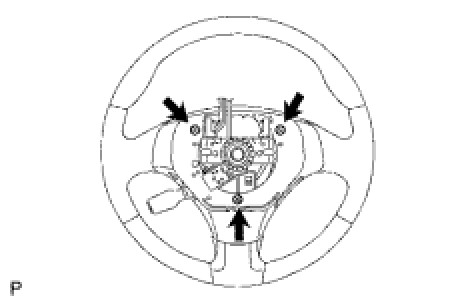

(b) Install the 3 screws.

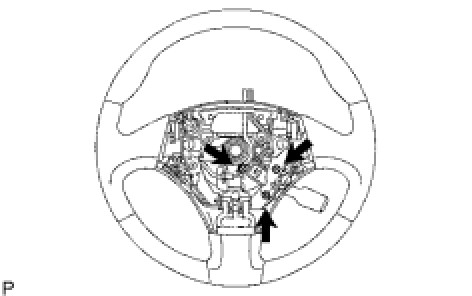

(c) Install the 3 screws.
2. INSTALL STEERING WHEEL ASSEMBLY Installation

3. INSTALL STEERING PAD ASSEMBLY Installation







4. INSTALL STEERING PAD SWITCH MODULATOR
(a) Install the modulator and then connect the connector.
(b) Install the 2 screws.






5. INSTALL SWITCH AND VOLUME CASE
(a) Attach the 3 claws to install the case.
6. INSTALL NO. 2 STEERING WHEEL COVER LOWER
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
