Roof Position Limit Switch

CONVERTIBLE: ROOF POSITION LIMIT SWITCH:

INSPECTION





1. INSPECT SLIDE ROOF LIMIT SWITCH

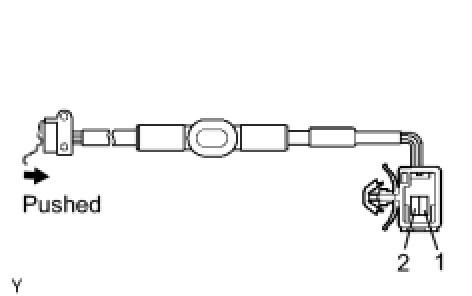

(a) Measure the resistance of the switch.

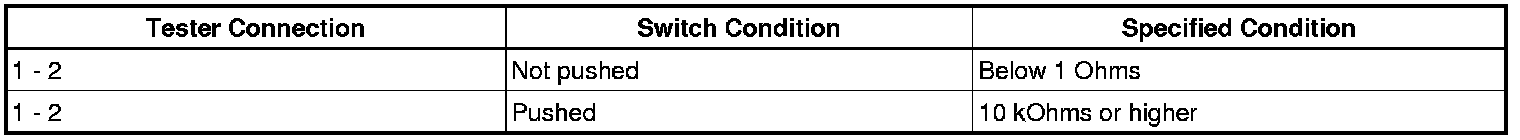

Standard resistance:





If the result is not as specified, replace the side roof limit switch.






2. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE RH)

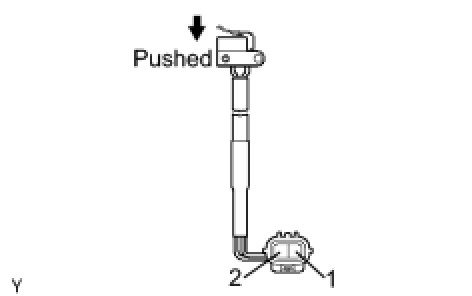

(a) Measure the resistance of the switch.

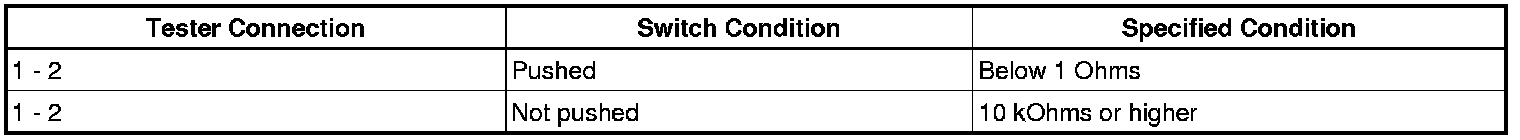

Standard resistance:





If the result is not as specified, replace the side roof limit switch.






3. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF CLOSE LH)

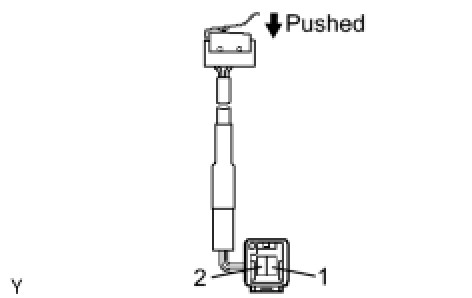

(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.






4. INSPECT NO. 1, NO. 2 ROOF POSITION SLIDE ROOF LIMIT SWITCH

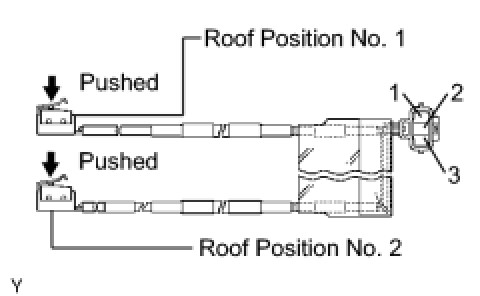

(a) Measure the resistance of the switch (roof position No. 1).
Standard resistance:





If the result is not as specified, replace the side roof limit switch.
(b) Measure the resistance of the switch (roof position No. 2).
Standard resistance:





If the result is not as specified, replace the side roof limit switch.






5. INSPECT NO. 3 ROOF POSITION SLIDE ROOF LIMIT SWITCH
(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch.






6. INSPECT SLIDE ROOF LIMIT SWITCH (ROOF OPEN)

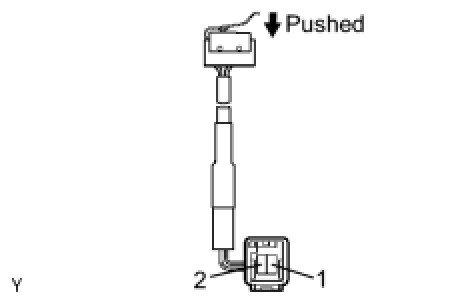

(a) Measure the resistance of the switch.
Standard resistance:





If the result is not as specified, replace the side roof limit switch (Roof open).
