Powertrain Management: Locations
3UZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

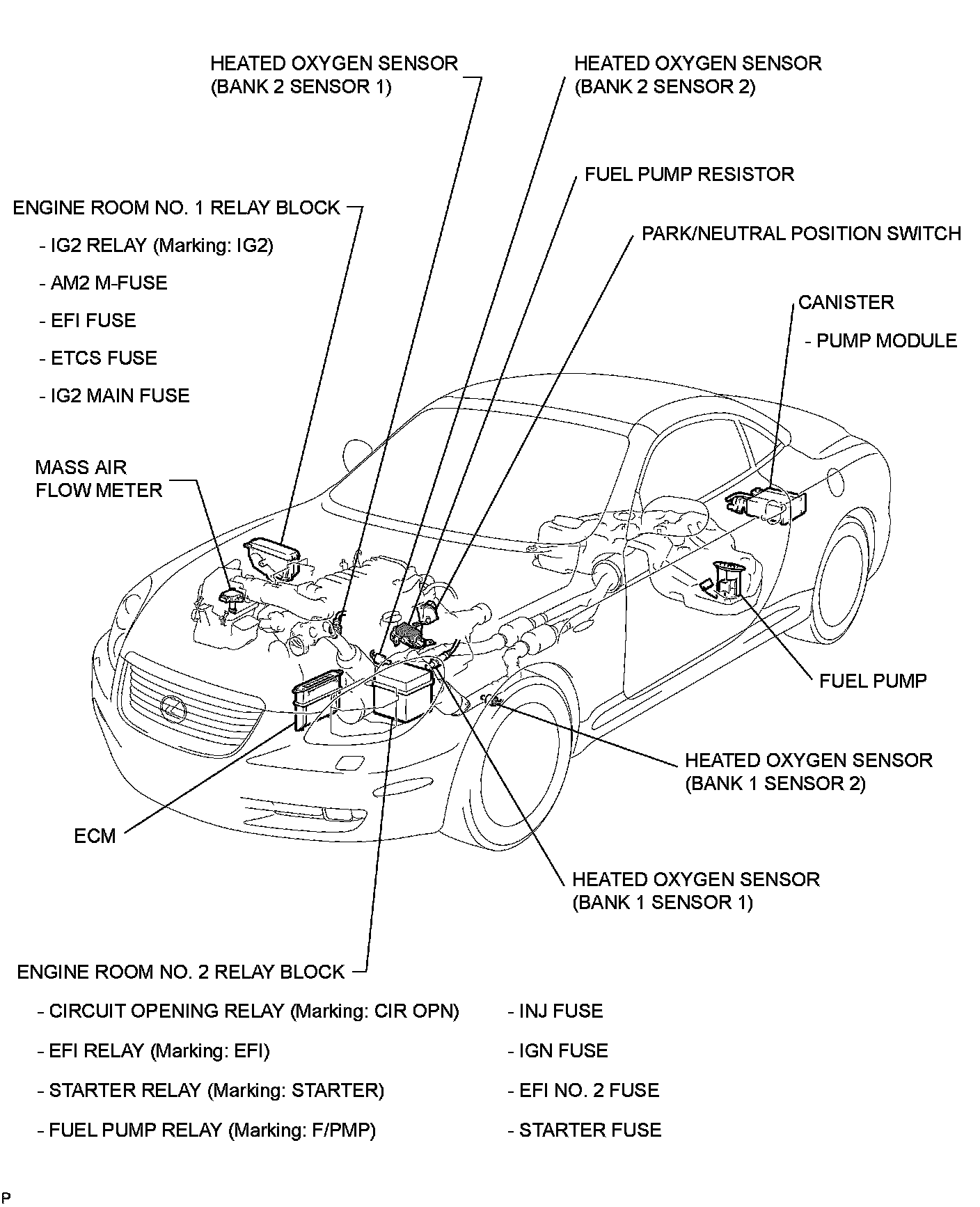

PARTS LOCATION

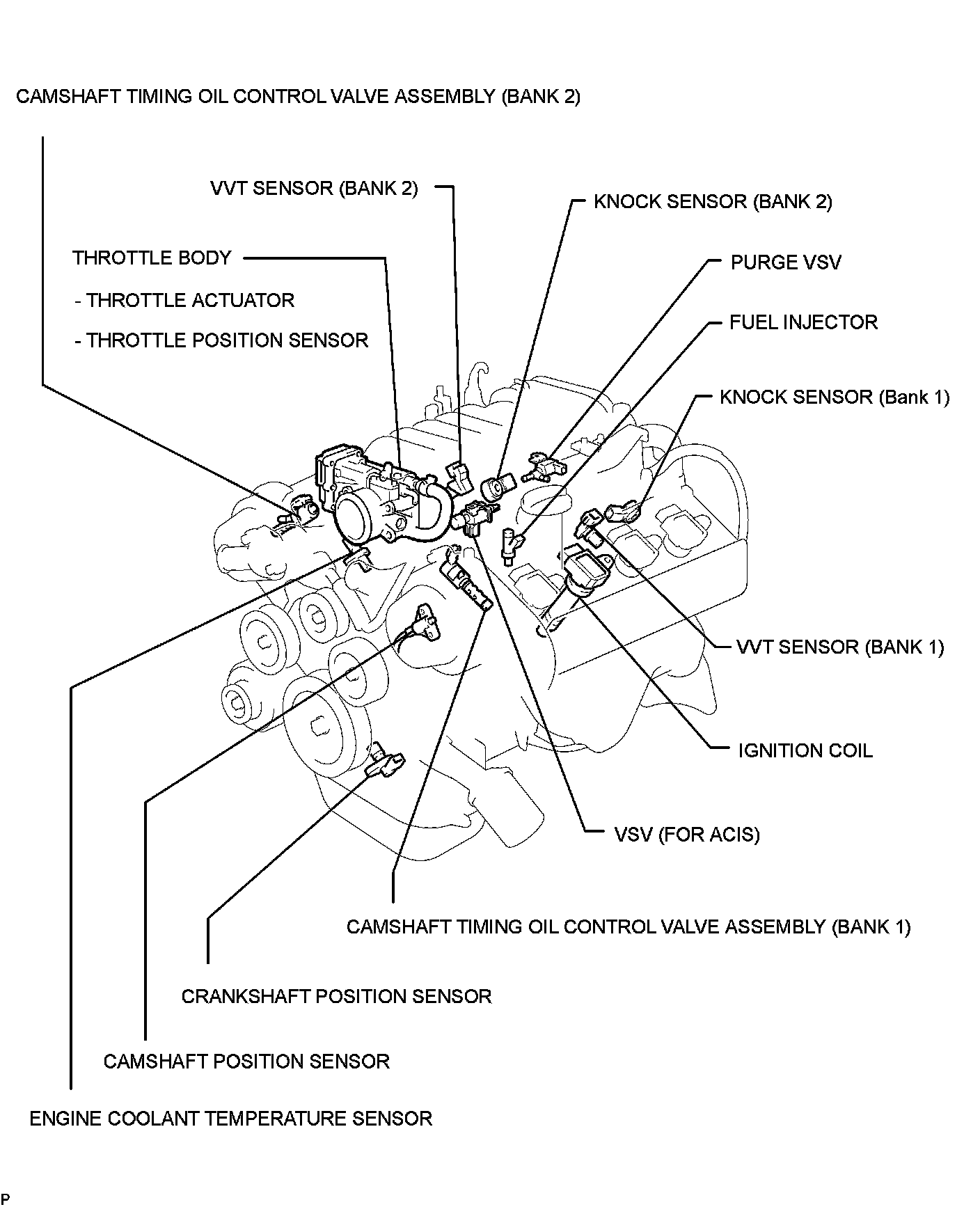

Engine: SFI System:
SFI System:
