Removal

3UZ-FE FUEL: FUEL PRESSURE PULSATION DAMPER:

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE V-BANK COVER Removal

4. REMOVE NO. 1 AIR CLEANER INLET Removal

5. REMOVE INTAKE AIR CONNECTOR PIPE Removal

6. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY






(a) Using a union nut wrench, disconnect the fuel pipe.
(b) Remove the bolt from the No. 2 fuel pipe clamp.

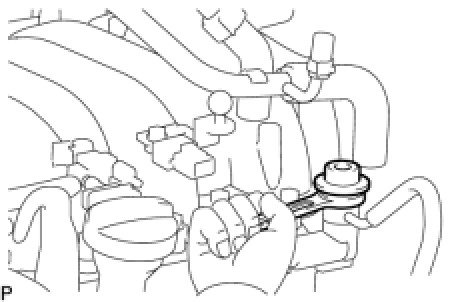

(c) Using a wrench, remove the 2 fuel pulsation dampers, 4 gaskets and No. 2 fuel pipe.
