CAN Communication System
CAN Communication System
CAN COMMUNICATION SYSTEM:

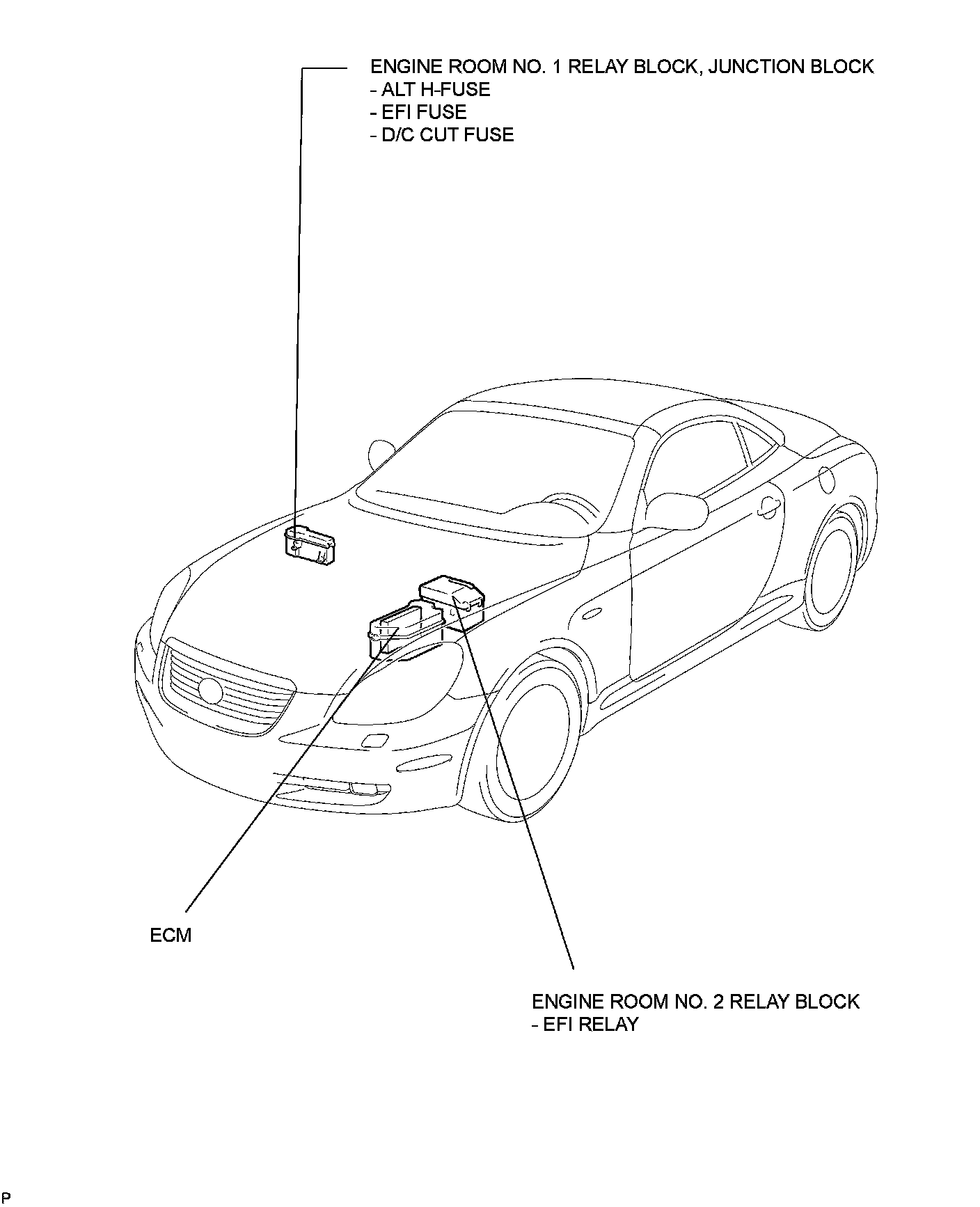

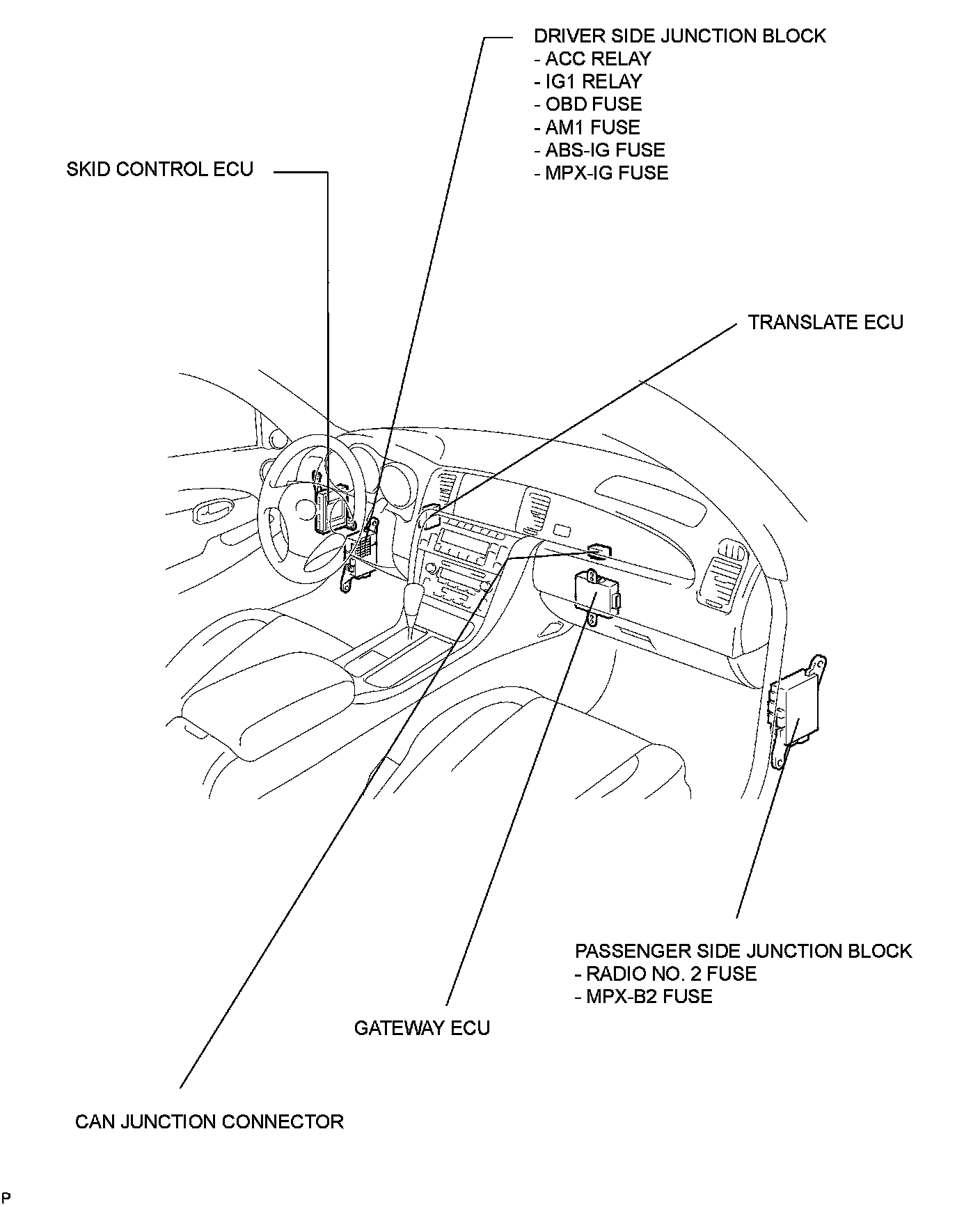

PARTS LOCATION
Engine: SFI:
