Inspection

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM:

INSPECTION

1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

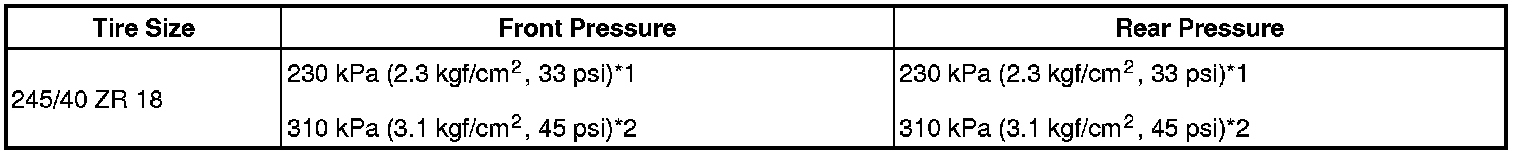

Standard cold tire inflation pressure:





HINT: *1: For driving under 180 km/h (112 mph)
*2: For driving at 180 km/h (112 mph) or over

(b) Check the tire runout.
Standard tire runout:
1.4 mm (0.055 in.) or less






2. ROTATE TIRE

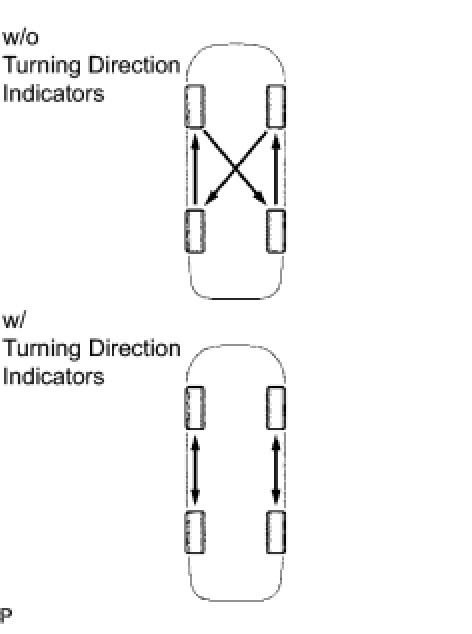

HINT: See the illustration for where to rotate each tire.

3. INSPECT WHEEL BALANCE
(a) Check and adjust off-the-car balance.
Standard unbalance after adjustment:
8.0 g (0.018 lb) or less
NOTICE:





- Remove dirt, oil and water from the balance weight surface with cleaning detergent.
- Do not touch the adhesive part of the balance weight.

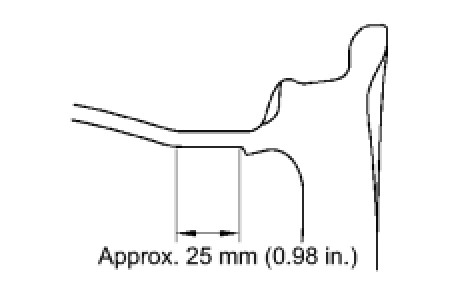

- Adhere the sticking type balance weight to the flat position shown in the illustration.
- Push the balance weight securely with a finger to adhere it to the position. (Pushing force: 10 kgf/more than 2 seconds)
- Do not reuse balance weight.
- Please use LEXUS genuine sticking type balance weight.

4. INSPECT WHEEL BEARING BACKLASH
(a) Inspect the front wheel bearing backlash .
(b) Inspect the rear wheel bearing backlash .
5. INSPECT AXLE HUB DEVIATION
(a) Inspect for front axle hub deviation .
(b) Inspect for rear axle hub deviation .
