Connector Locations

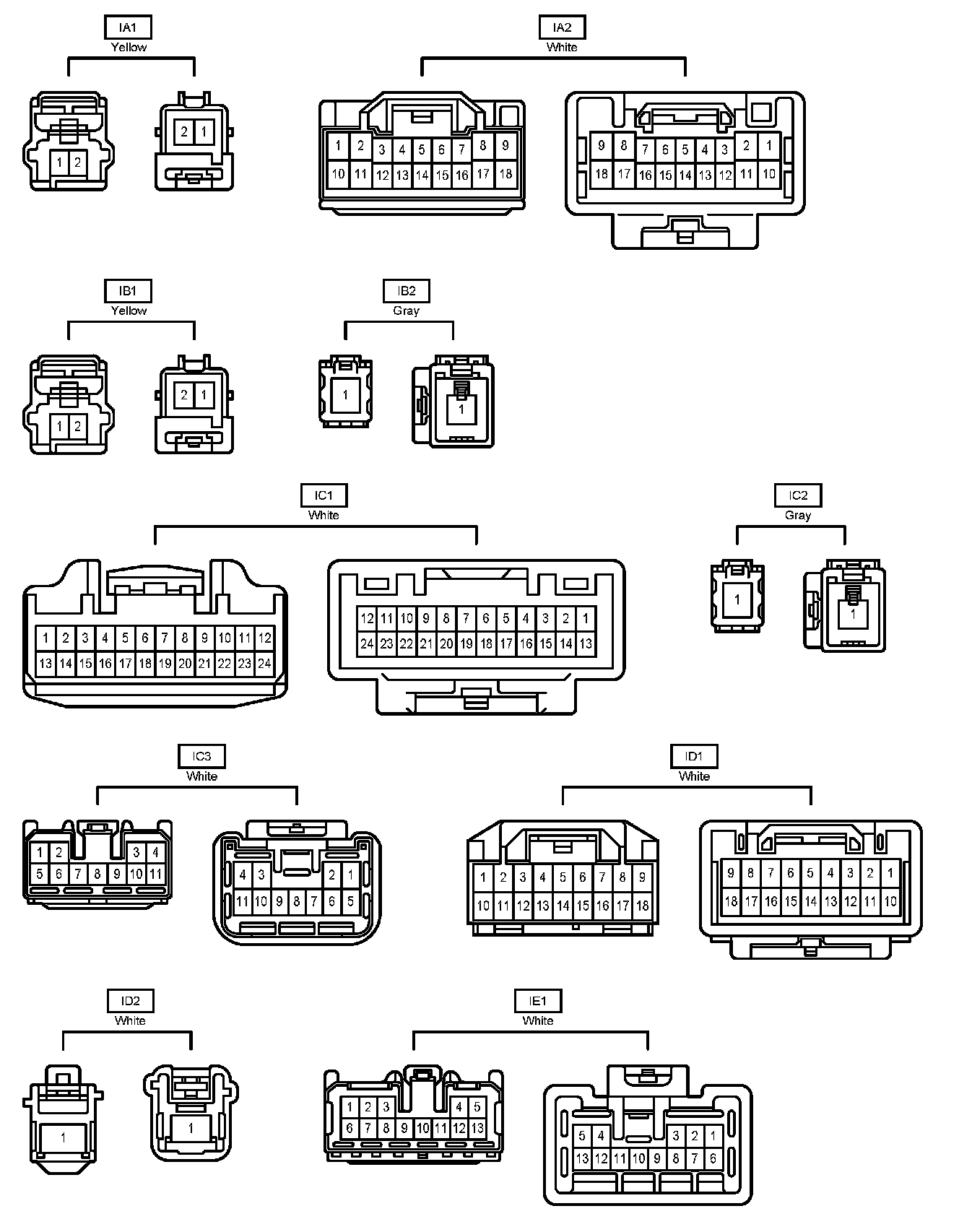

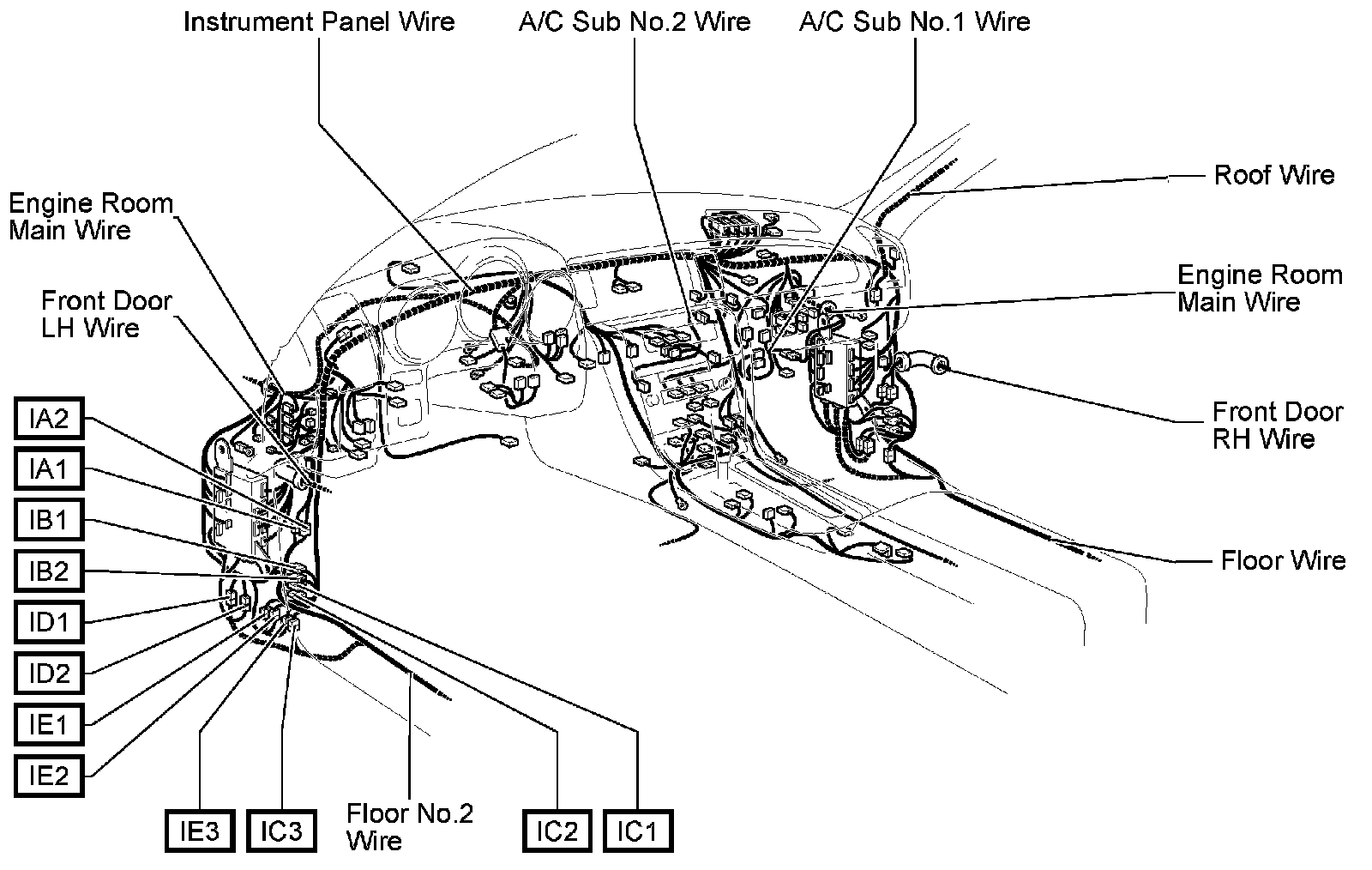

IA1-IE2:



IA1-IE1:

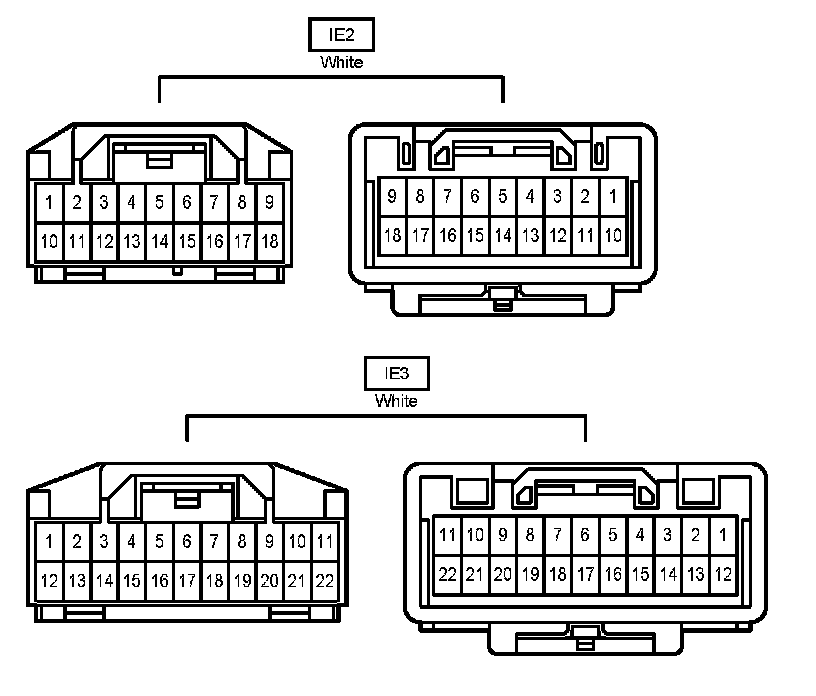

IE2-IE3:

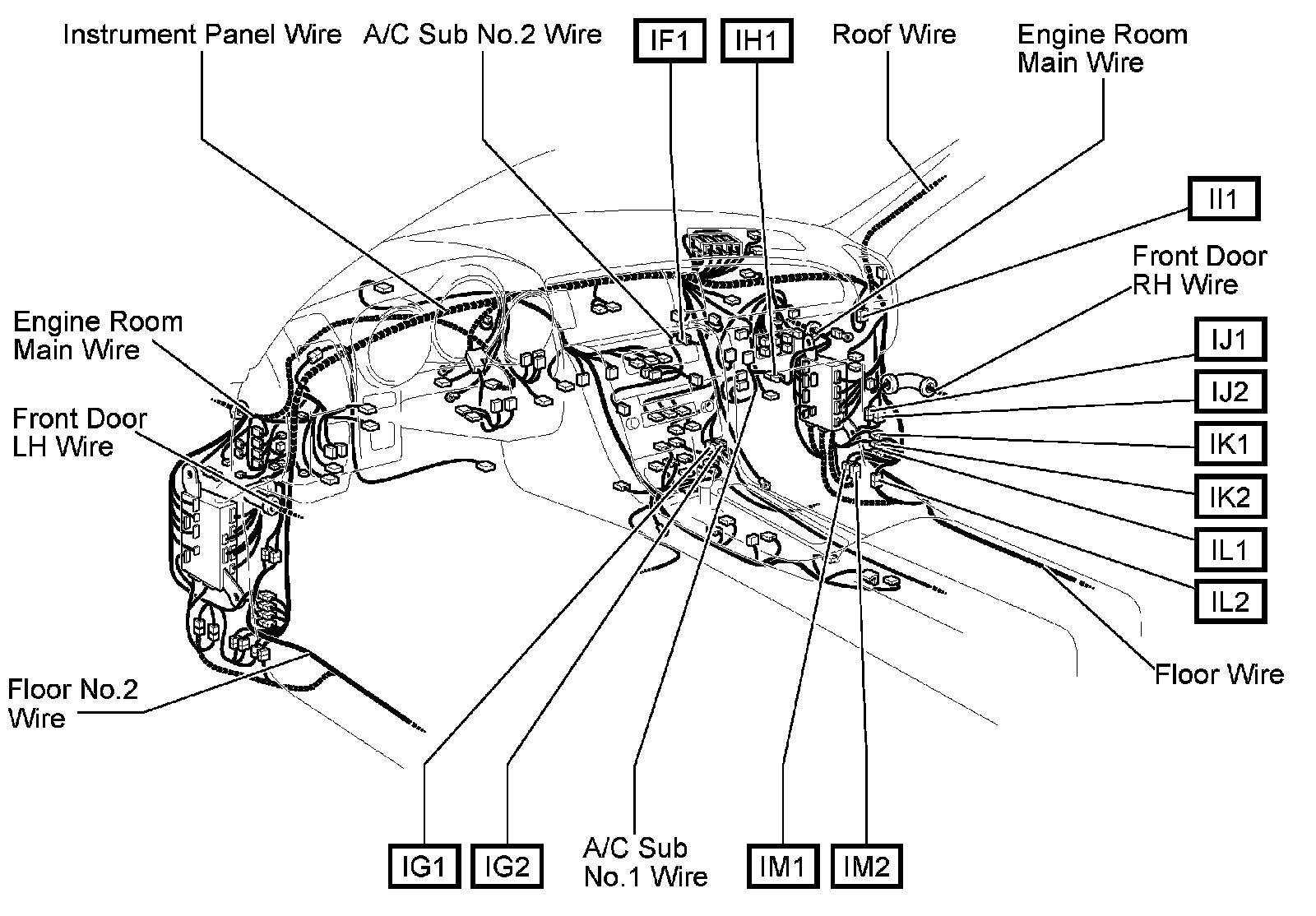

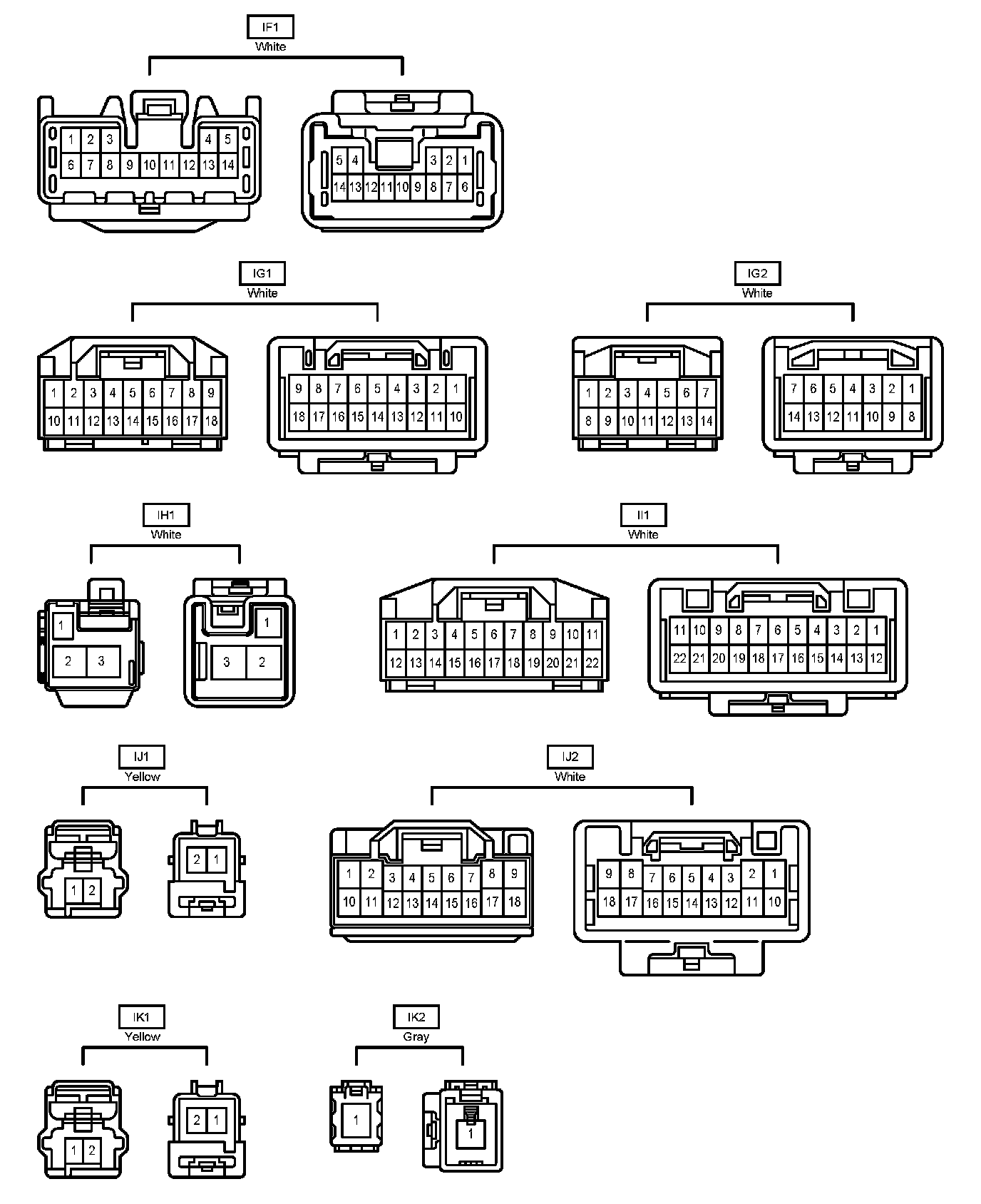

IF1-IM2:



IF1-IK2:

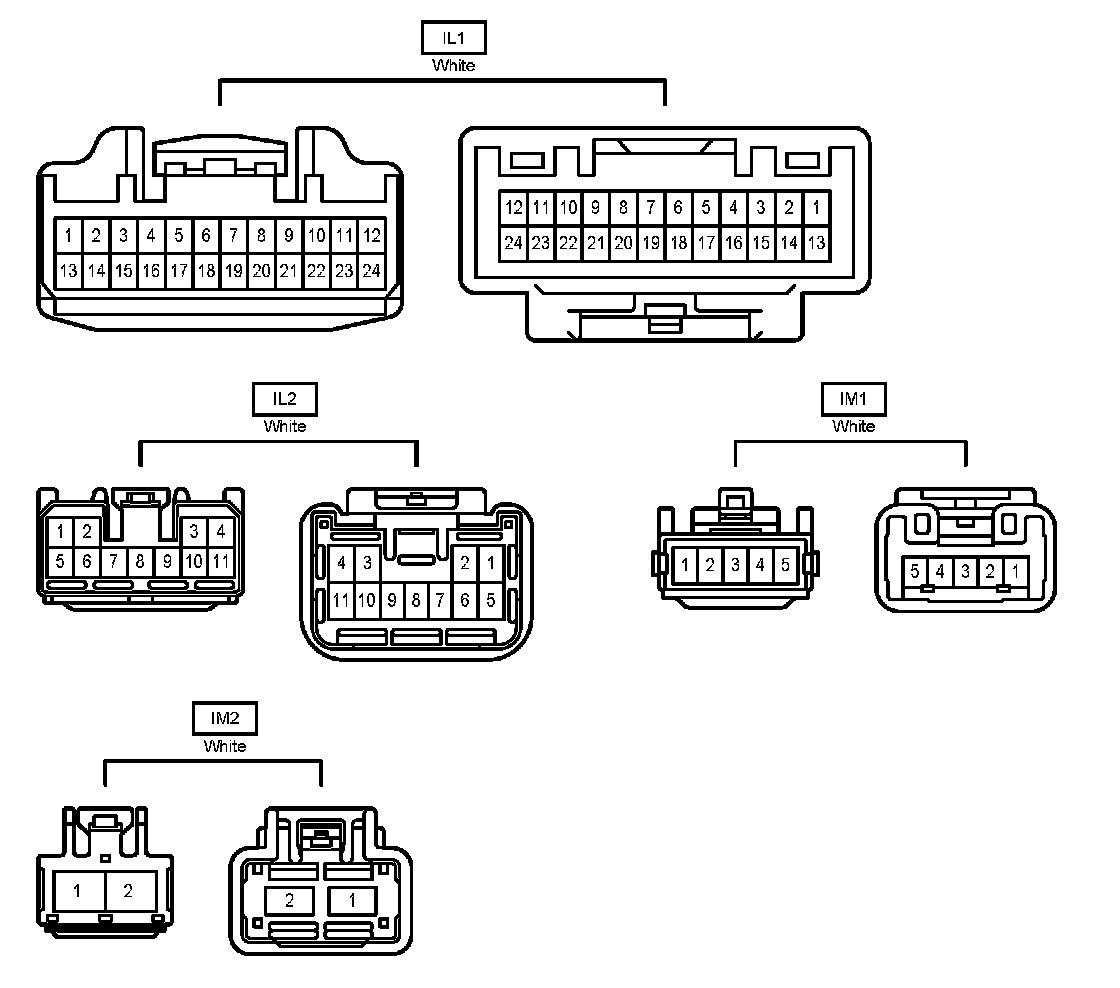

IL1-IM2:

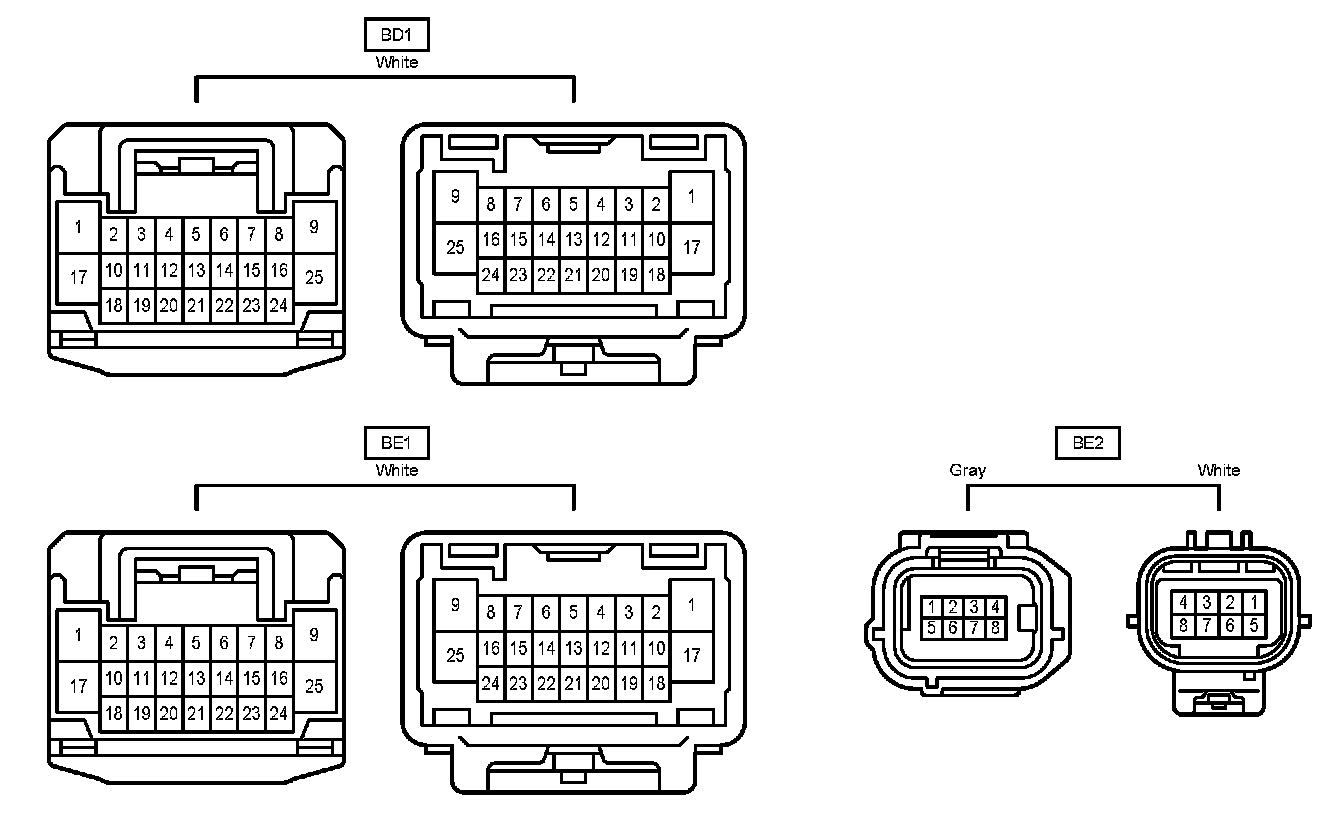

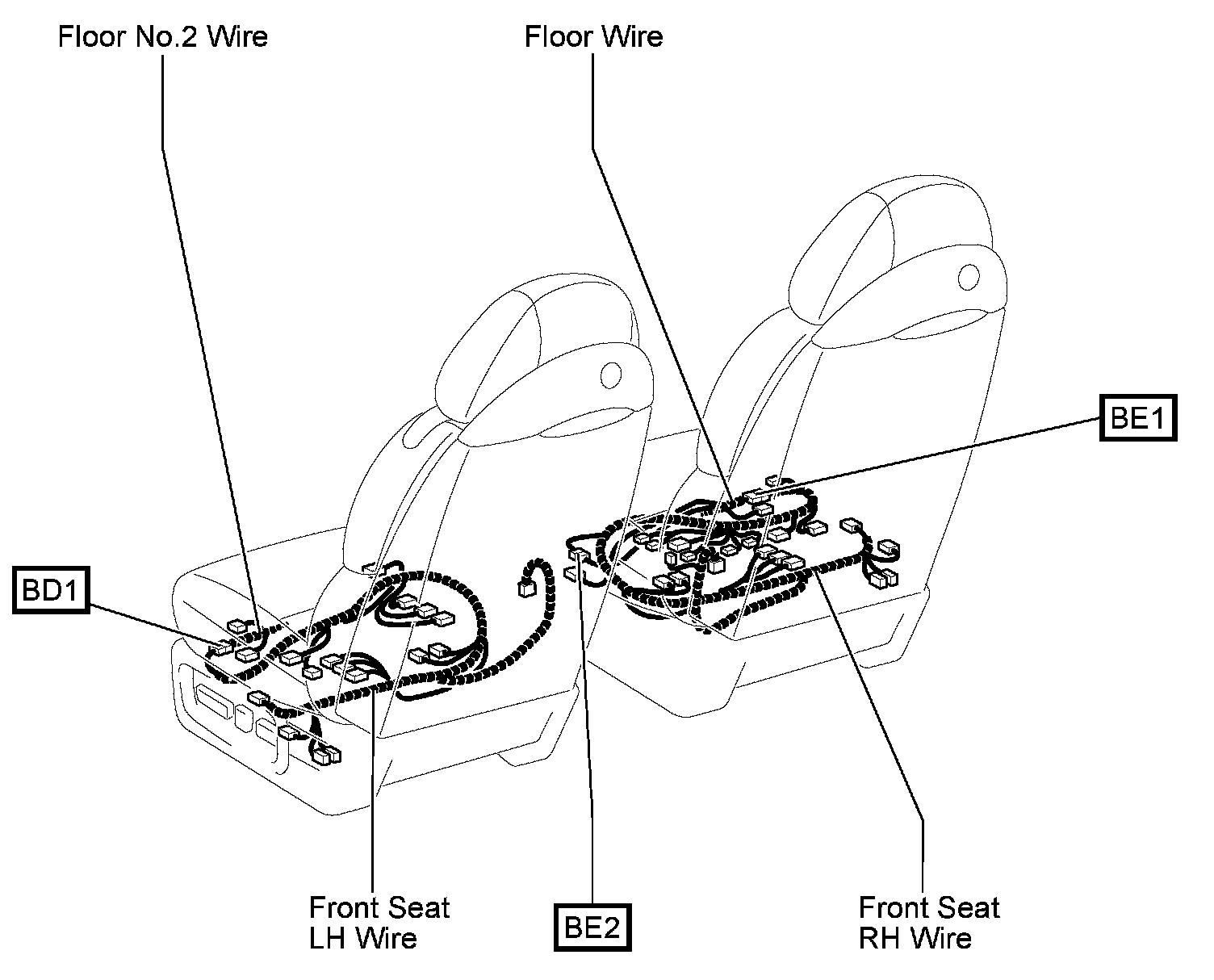

BD1-BE2:



BD1-BE2:
