Fail-Safe Chart

METER / GAUGE SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

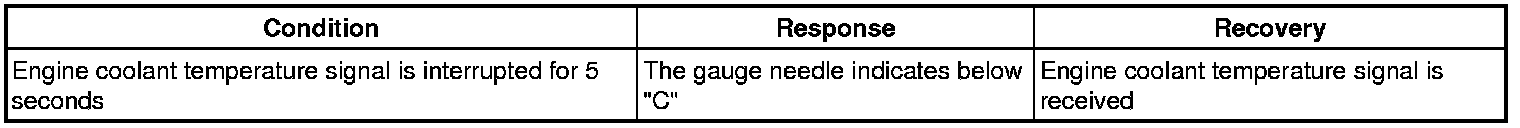

Water temperature gauge

Fuel signal (Fuel injection signal)

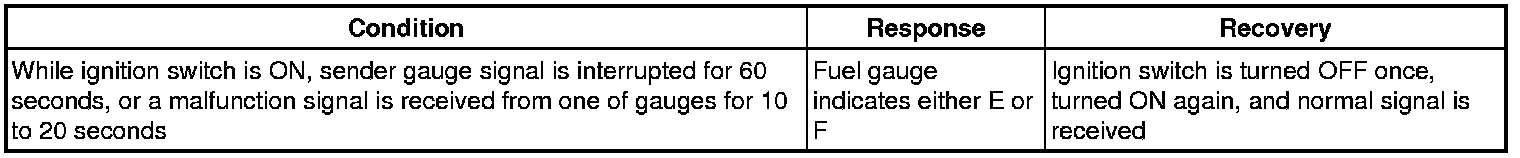

Fuel signal (Gauge signal)

Shift indicator

ABS & Brake

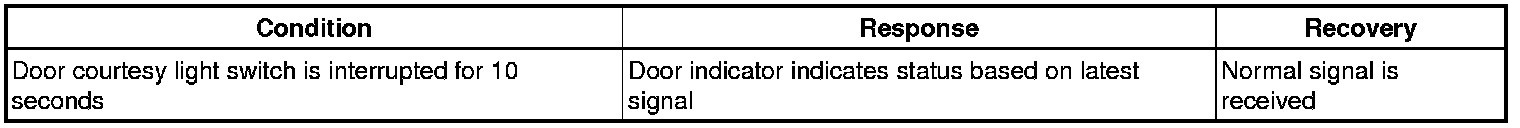

Door

Tail

Beam

Airbag

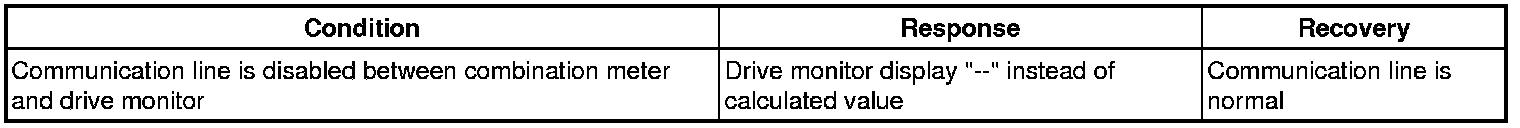

Drive monitor
